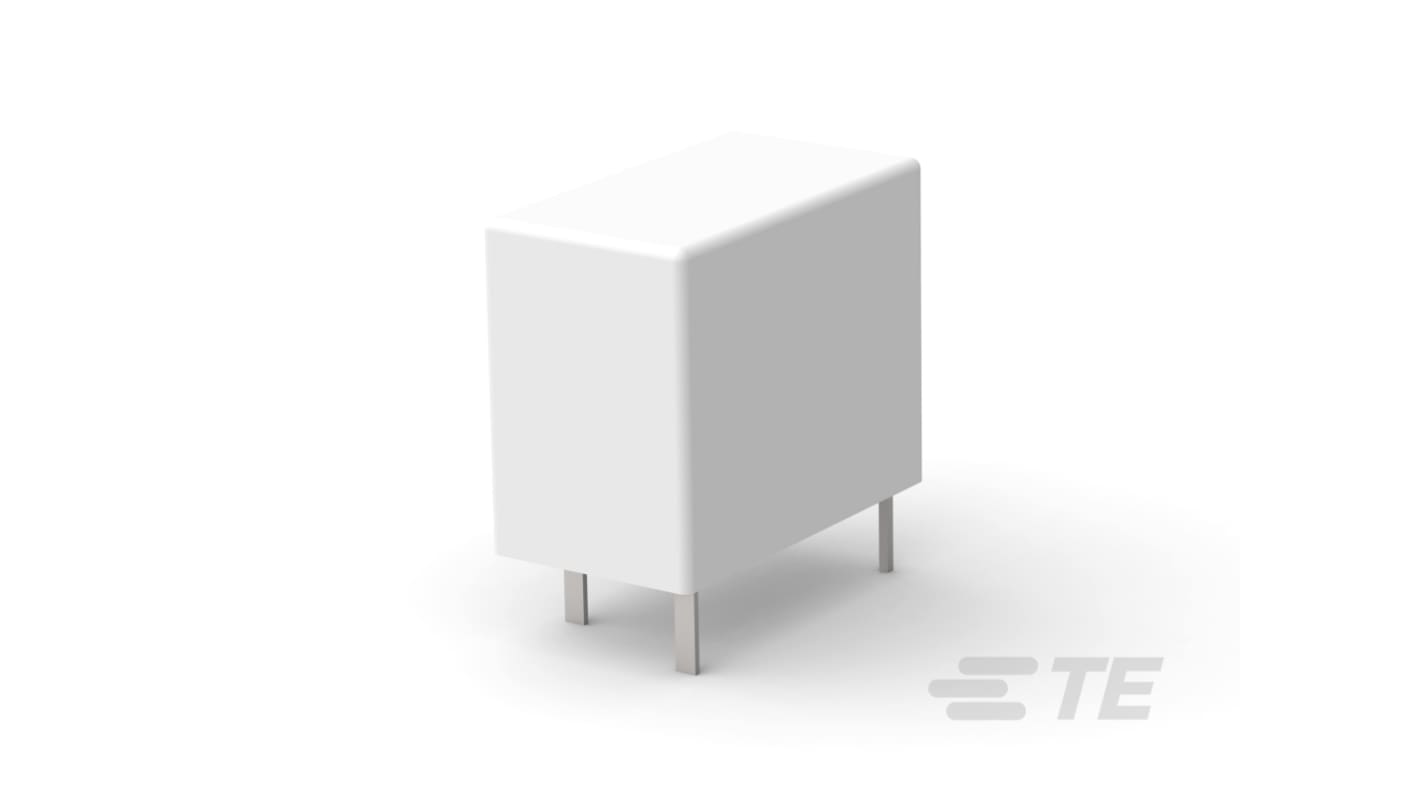

TE Connectivity OJ/OJE Series Relay, Board, 9V dc Coil, SPST-NO
- RS Stock No.:
- 469-548
- Mfr. Part No.:
- 1721874-4
- Brand:
- TE Connectivity
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 469-548
- Mfr. Part No.:
- 1721874-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Relay | |
| Coil Resistance | 405Ω | |
| Coil Voltage | 9V dc | |
| Contact Configuration | SPST-NO | |
| Mount Type | Board | |
| Series | OJ/OJE | |
| Terminal Type | Solder Pin | |
| Switching Current | 8A | |
| Minimum Operating Temperature | -40°C | |
| Switching DC Voltage | 30V | |
| Switching AC Voltage | 277V | |
| Contact Material | Silver Tin Oxide Indium Oxide | |
| Maximum Operating Temperature | 105°C | |
| Width | 10.2mm | |
| Standards/Approvals | 2016, China RoHS 2 MIIT Order No 32, EU ELV 2000/53/EC, EU RoHS 2011/65/EU | |
| Height | 14.7mm | |
| Length | 18.2mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Relay | ||
Coil Resistance 405Ω | ||
Coil Voltage 9V dc | ||
Contact Configuration SPST-NO | ||
Mount Type Board | ||
Series OJ/OJE | ||
Terminal Type Solder Pin | ||
Switching Current 8A | ||
Minimum Operating Temperature -40°C | ||
Switching DC Voltage 30V | ||
Switching AC Voltage 277V | ||
Contact Material Silver Tin Oxide Indium Oxide | ||
Maximum Operating Temperature 105°C | ||
Width 10.2mm | ||
Standards/Approvals 2016, China RoHS 2 MIIT Order No 32, EU ELV 2000/53/EC, EU RoHS 2011/65/EU | ||
Height 14.7mm | ||
Length 18.2mm | ||
- COO (Country of Origin):
- CN
The TE Connectivity general-purpose power relay offers a sophisticated solution for various DC applications. With its monostable coil magnetic system, it ensures efficient performance and reliability. Designed for seamless integration into PCB layouts, this miniature relay is an ideal choice for both commercial and industrial settings. The compact dimensions and robust features, alongside a contact rating of 8 A, make it suitable for a wide range of switching tasks. Built to endure challenging environments, this relay performs outstandingly within an operating temperature range of -40°C to 105°C. The exceptional dielectric strength further enhances its reliability, making it a trusted component for critical electrical systems.
Monostable design ensures operational stability
Compact size facilitates easy PCB mounting
UL coil insulation class F offers enhanced performance
Reliable contact arrangement with SPST-NO for versatile applications
Flux-resistant enclosure assures durability in varied conditions
Innovative solder pin termination supports simple assembly
Low coil resistance ensures efficient energy utilisation
High insulation dielectric rating enhances safety during operation
Wide operating temperature range caters to diverse environments
Effective packaging method simplifies distribution and handling
