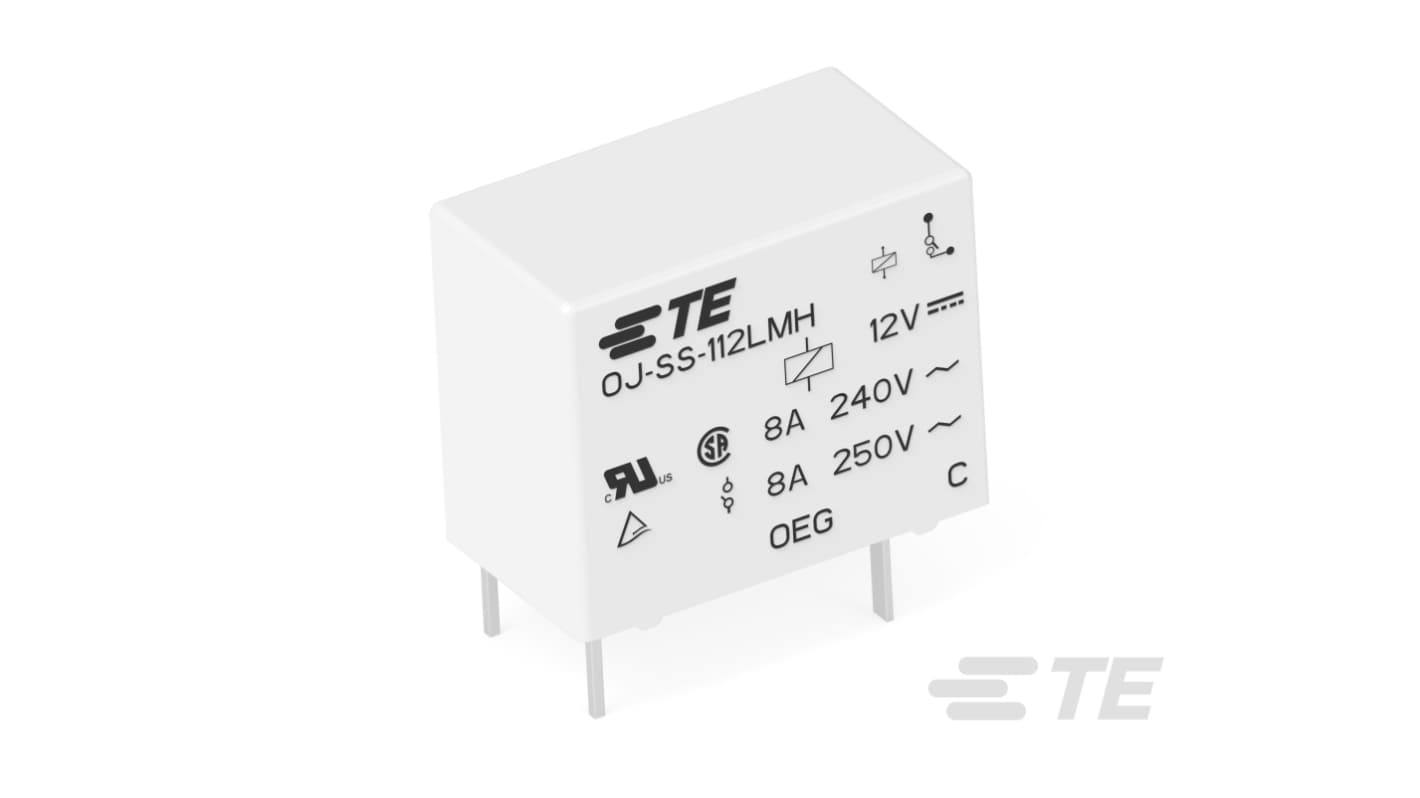

TE Connectivity OEG Series Relay, Board, 12 V dc Coil, SPST-NO
- RS Stock No.:
- 469-546
- Distrelec Article No.:
- 304-48-080
- Mfr. Part No.:
- 1721539-5
- Brand:
- TE Connectivity
Subtotal (1 pack of 200 units)*
£250.52
(exc. VAT)
£300.62
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £250.52 | £1.253 |
*price indicative
- RS Stock No.:
- 469-546
- Distrelec Article No.:
- 304-48-080
- Mfr. Part No.:
- 1721539-5
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Resistance | 320Ω | |
| Coil Voltage | 12 V dc | |
| Product Type | Relay | |
| Contact Configuration | SPST-NO | |
| Mount Type | Board | |
| Series | OEG | |
| Terminal Type | Solder Pin | |
| Switching Current | 10 A | |
| Switching DC Voltage | 30 V dc | |
| Switching AC Voltage | 277 V ac | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Silver Tin Oxide | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | EU RoHS Directive 2011/65/EU Compliant, 2016 Compliant, EU REACH Regulation (EC) No. 1907/2006, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant | |
| Width | 10.2 mm | |
| Length | 18.2mm | |
| Height | 14.7mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Resistance 320Ω | ||
Coil Voltage 12 V dc | ||
Product Type Relay | ||
Contact Configuration SPST-NO | ||
Mount Type Board | ||
Series OEG | ||
Terminal Type Solder Pin | ||
Switching Current 10 A | ||
Switching DC Voltage 30 V dc | ||
Switching AC Voltage 277 V ac | ||
Minimum Operating Temperature -40°C | ||
Contact Material Silver Tin Oxide | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals EU RoHS Directive 2011/65/EU Compliant, 2016 Compliant, EU REACH Regulation (EC) No. 1907/2006, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant | ||
Width 10.2 mm | ||
Length 18.2mm | ||
Height 14.7mm | ||
- COO (Country of Origin):
- CN
The TE Connectivity miniature PCB relay excels in its role as a general purpose power relay, offering robust performance tailored for various applications. Designed for direct current (DC) operations, it boasts a monostable coil magnetic system capable of managing a 10 A contact rating while maintaining efficiency and reliability. With a coil voltage of 12 VDC, this relay integrates seamlessly into most electronic systems, providing ease of use without compromising functionality. The compact dimensions and board mount design make it ideal for space-constrained environments, enabling flexibility in installation. Additionally, the high insulation dielectric ratings ensure resilience against electrical interference, making it a dependable choice for critical applications in demanding settings.
Compact design suits space-limited installations
High dielectric strength ensures operational reliability
Board mount capability for simplified integration
Monostable coil system promotes energy efficiency
Robust construction withstands varied environmental conditions
Versatile applications in DC circuits enhance usability
Each unit undergoes strict compliance testing for quality assurance
