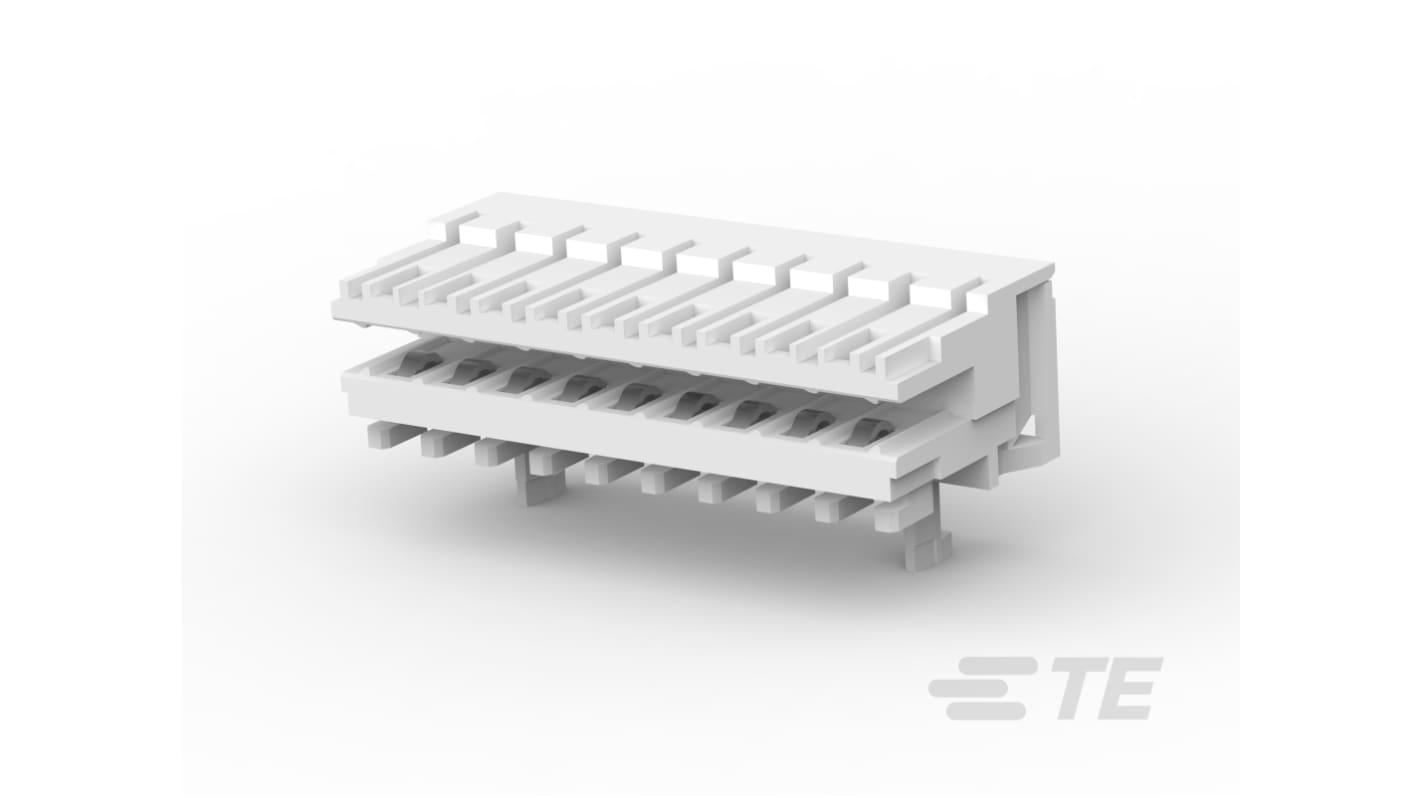

TE Connectivity 3-153 Series Right Angle Edge Connector, Cable Mount, 9-Contacts, 2.5mm Pitch, 1-Row, IDC Termination
- RS Stock No.:
- 474-724
- Mfr. Part No.:
- 3-1534796-9
- Brand:
- TE Connectivity
Subtotal (1 tray of 250 units)*
£165.18
(exc. VAT)
£198.22
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
---|---|---|
1 + | £165.18 | £0.661 |
*price indicative
- RS Stock No.:
- 474-724
- Mfr. Part No.:
- 3-1534796-9
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Body Orientation | Right Angle | |
Number of Contacts | 9 | |
Number of Rows | 1 | |
Pitch | 2.5mm | |
Mounting Type | Cable Mount | |
Termination Method | IDC | |
Series | 3-153 | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Body Orientation Right Angle | ||
Number of Contacts 9 | ||
Number of Rows 1 | ||
Pitch 2.5mm | ||
Mounting Type Cable Mount | ||
Termination Method IDC | ||
Series 3-153 | ||
- COO (Country of Origin):
- CZ
The TE Connectivity wire-to-board connector is designed to provide reliable performance in various applications requiring efficient connectivity. Its compact size accommodates nine positions with a 2.5 mm centerline, ensuring optimal space utilization without compromising on connection integrity. Engineered with insulation displacement technology, this connector enhances ease of installation and minimizes the risk of assembly errors. Crafted from natural PA 6 GF material, it delivers robustness while maintaining an impressive operational temperature range, appealing to industries requiring durability in hostile environments. This connector meets stringent industry standards, making it a dependable choice for engineers and manufacturers seeking quality and reliability in their designs.
Offers a secure and stable connection across a range of applications
Designed for easy insertion and reliable termination of discrete wire types
Provides flexibility with a right-angle PCB mount orientation
Optimized for a wide operating temperature range, ensuring performance in extreme conditions
Features a locking lance mechanism that guarantees secure contact retention
Manufactured to comply with international standards for electrical safety
Designed for easy insertion and reliable termination of discrete wire types
Provides flexibility with a right-angle PCB mount orientation
Optimized for a wide operating temperature range, ensuring performance in extreme conditions
Features a locking lance mechanism that guarantees secure contact retention
Manufactured to comply with international standards for electrical safety
