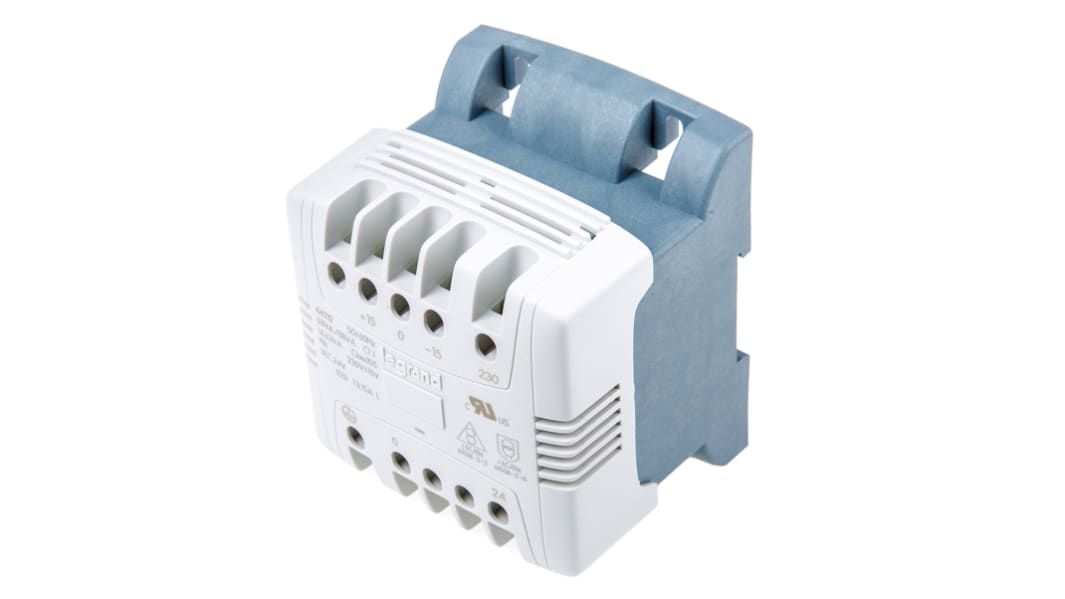

Legrand 8000 VA DIN Rail Transformer, 215 V ac, 230 V ac, 245 V ac Primary, 24 V ac Secondary, EN 60204-1, EN 60439-1,
- RS Stock No.:
- 620-3132
- Mfr. Part No.:
- 0 442 12
- Brand:
- Legrand
Bulk discount available
Subtotal (1 unit)*
£136.57
(exc. VAT)
£163.88
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 4 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £136.57 |
| 25 + | £128.24 |
*price indicative
- RS Stock No.:
- 620-3132
- Mfr. Part No.:
- 0 442 12
- Brand:
- Legrand
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Legrand | |
| Primary Voltage | 215 V ac, 230 V ac, 245 V ac | |
| Product Type | DIN Rail Transformer | |
| Secondary Voltage | 24 V ac | |
| Mount Type | Direct, Clip | |
| Number of Outputs | 1 | |
| Length | 94mm | |
| Width | 85mm | |
| Power | 8000VA | |
| Depth | 113mm | |
| Minimum Operating Frequency | 50Hz | |
| Maximum Operating Frequency | 60Hz | |
| Weight | 1.6kg | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | EN 60204-1, EN 60439-1, EN 61131-2, IEC EN 61558-2-4, IEC EN 61558-2-6 | |
| Select all | ||
|---|---|---|
Brand Legrand | ||
Primary Voltage 215 V ac, 230 V ac, 245 V ac | ||
Product Type DIN Rail Transformer | ||
Secondary Voltage 24 V ac | ||
Mount Type Direct, Clip | ||
Number of Outputs 1 | ||
Length 94mm | ||
Width 85mm | ||
Power 8000VA | ||
Depth 113mm | ||
Minimum Operating Frequency 50Hz | ||
Maximum Operating Frequency 60Hz | ||
Weight 1.6kg | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals EN 60204-1, EN 60439-1, EN 61131-2, IEC EN 61558-2-4, IEC EN 61558-2-6 | ||
