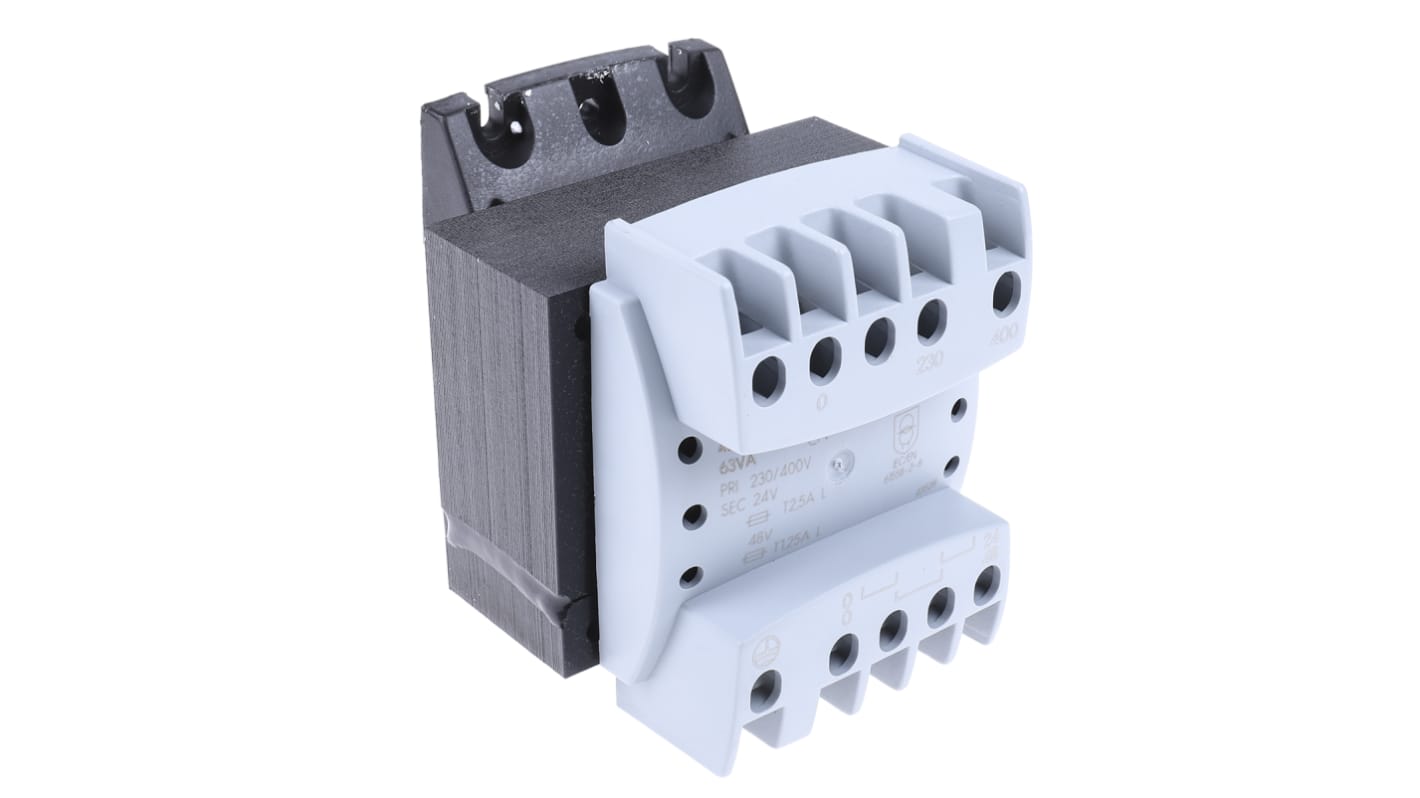

Legrand 63VA DIN Rail Transformer, 230 → 400V Primary, 24 → 48V Secondary
- RS Stock No.:
- 383-346
- Mfr. Part No.:
- 0 428 71
- Brand:
- Legrand
Bulk discount available
Subtotal (1 unit)*
£47.59
(exc. VAT)
£57.11
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 17 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
- Plus 15 unit(s) shipping from 22 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 24 | £47.59 |
25 + | £43.64 |
*price indicative
- RS Stock No.:
- 383-346
- Mfr. Part No.:
- 0 428 71
- Brand:
- Legrand
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Legrand | |
Primary Voltage Rating | 230 → 400V | |
Secondary Voltage Rating | 24 → 48V | |
Power Rating | 63VA | |
Mounting Type | Panel | |
Number of Outputs | 2 | |
Length | 98mm | |
Width | 84mm | |
Depth | 77mm | |
Dimensions | 98 x 84 x 77mm | |
Minimum Operating Frequency | 50Hz | |
Maximum Operating Frequency | 60Hz | |
Maximum Temperature | +35°C | |
Weight | 1.3kg | |
Select all | ||
---|---|---|
Brand Legrand | ||
Primary Voltage Rating 230 → 400V | ||
Secondary Voltage Rating 24 → 48V | ||
Power Rating 63VA | ||
Mounting Type Panel | ||
Number of Outputs 2 | ||
Length 98mm | ||
Width 84mm | ||
Depth 77mm | ||
Dimensions 98 x 84 x 77mm | ||
Minimum Operating Frequency 50Hz | ||
Maximum Operating Frequency 60Hz | ||
Maximum Temperature +35°C | ||
Weight 1.3kg | ||
- COO (Country of Origin):
- FR
Control Panel Primary 230/400Vac (40 to 220VA)
Compact, open type control panel transformer
Fully shrouded screw terminals with permanent marking
Detailed product specification permanently marked on front of unit
VA ratings compatible with available protection devices
Dual standard primary winding 230 / 400Vac
Fully shrouded screw terminals with permanent marking
Detailed product specification permanently marked on front of unit
VA ratings compatible with available protection devices
Dual standard primary winding 230 / 400Vac
Note
Standards
IEC/EN 61 558
Standards
IEC/EN 61 558-2-6
Laminated
