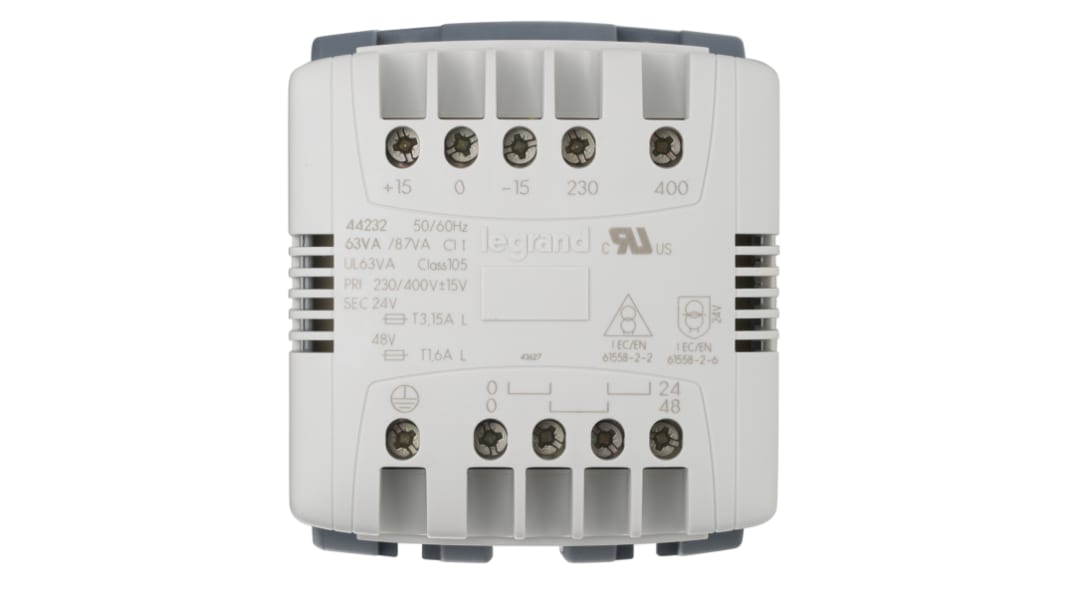

Legrand 63VA DIN Rail Transformer, 230V ac, 400V ac Primary, 24V ac Secondary
- RS Stock No.:
- 535-7727
- Mfr. Part No.:
- 0 442 32
- Brand:
- Legrand
Bulk discount available
Subtotal (1 unit)*
£57.67
(exc. VAT)
£69.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 35 unit(s) ready to ship
- Plus 34 unit(s) ready to ship from another location
- Plus 55 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £57.67 |
| 25 + | £54.15 |
*price indicative
- RS Stock No.:
- 535-7727
- Mfr. Part No.:
- 0 442 32
- Brand:
- Legrand
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Legrand | |
| Primary Voltage Rating | 230V ac, 400V ac | |
| Secondary Voltage Rating | 24V ac | |
| Power Rating | 63VA | |
| Mounting Type | DIN Rail | |
| Length | 113mm | |
| Width | 94mm | |
| Depth | 85mm | |
| Dimensions | 113 x 94 x 85mm | |
| Maximum Temperature | +50°C | |
| Weight | 1.6kg | |
Select all | ||
|---|---|---|
Brand Legrand | ||
Primary Voltage Rating 230V ac, 400V ac | ||
Secondary Voltage Rating 24V ac | ||
Power Rating 63VA | ||
Mounting Type DIN Rail | ||
Length 113mm | ||
Width 94mm | ||
Depth 85mm | ||
Dimensions 113 x 94 x 85mm | ||
Maximum Temperature +50°C | ||
Weight 1.6kg | ||
- COO (Country of Origin):
- FR
Control Transformers
Safety isolating transformer single phase
DIN rail mount (up to 250VA) or Surface mount with screws (400VA & above)
Terminals with finger protection IP2x or xxB up to 400VA
New design provides interference filter between windings
Clear laser engraved markings
Suitable for maximum 50°C ambient, without de-rating
DIN rail mount (up to 250VA) or Surface mount with screws (400VA & above)
Terminals with finger protection IP2x or xxB up to 400VA
New design provides interference filter between windings
Clear laser engraved markings
Suitable for maximum 50°C ambient, without de-rating
Standards
IEC 61-558-2-2 and 2-4 or 2-6
Supplied with
0V/earth connection link
Approvals
UL506, CSA
