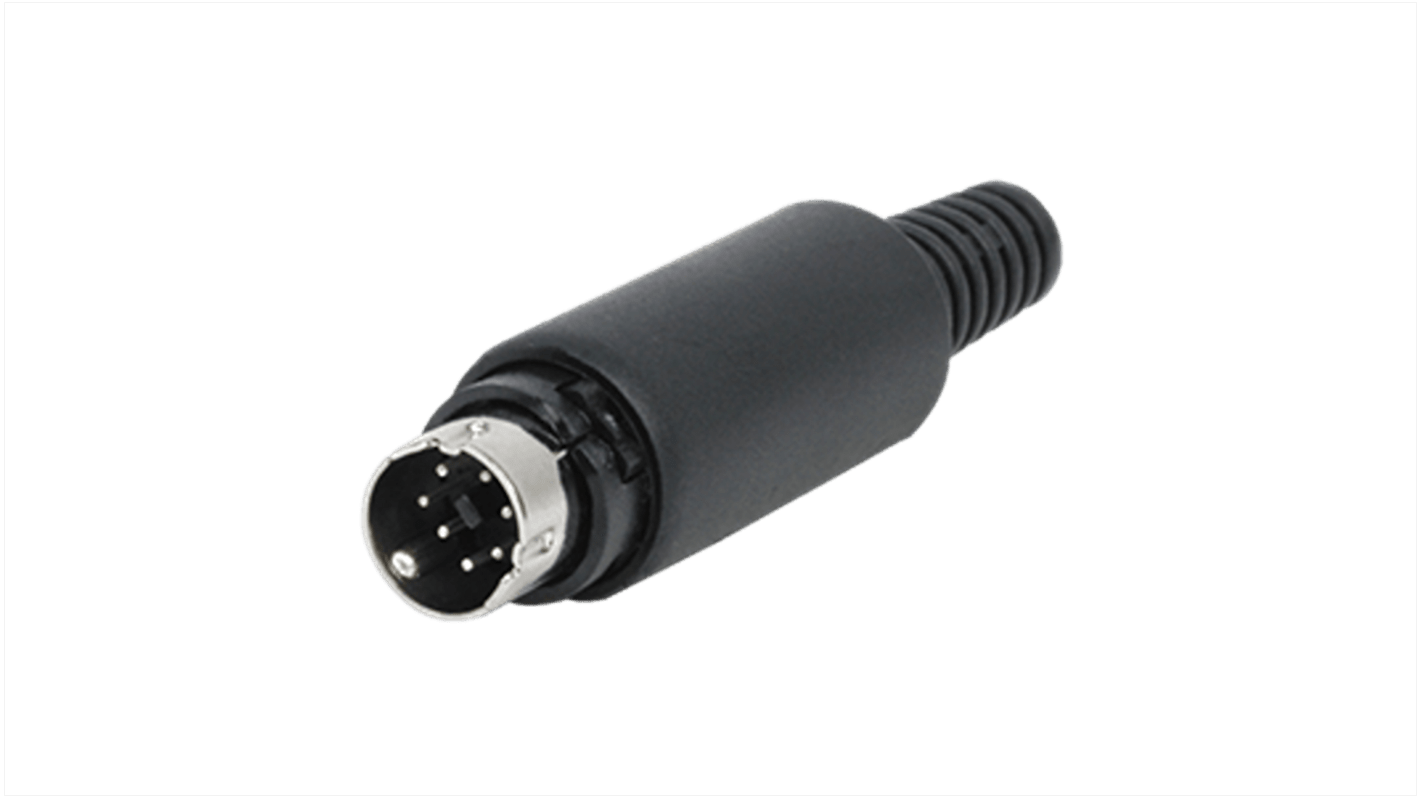

Same Sky, MD 6 Pole DIN Connector, 1A, 250V, Cable Male
- RS Stock No.:
- 259-6387
- Mfr. Part No.:
- MD-60
- Brand:
- Same Sky
Subtotal (1 pack of 2 units)*
£3.84
(exc. VAT)
£4.60
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 672 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 + | £1.92 | £3.84 |
*price indicative
- RS Stock No.:
- 259-6387
- Mfr. Part No.:
- MD-60
- Brand:
- Same Sky
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Same Sky | |
| Number of Contacts | 6 | |
| Product Type | DIN Connector | |
| Mount Type | Cable | |
| Current | 1A | |
| Connector Gender | Male | |
| Shield Type | Shielded | |
| Voltage | 250V | |
| Minimum Operating Temperature | -20°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 105°C | |
| Contact Gender | Male | |
| Standards/Approvals | RoHS | |
| Series | MD | |
| Housing Material | Polybutylene Terephthalate | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Silver | |
| Select all | ||
|---|---|---|
Brand Same Sky | ||
Number of Contacts 6 | ||
Product Type DIN Connector | ||
Mount Type Cable | ||
Current 1A | ||
Connector Gender Male | ||
Shield Type Shielded | ||
Voltage 250V | ||
Minimum Operating Temperature -20°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 105°C | ||
Contact Gender Male | ||
Standards/Approvals RoHS | ||
Series MD | ||
Housing Material Polybutylene Terephthalate | ||
Contact Material Phosphor Bronze | ||
Contact Plating Silver | ||
The CUI devices provides a mini DIN connectors having a mounting type of cable mount with a plug connector and straight body orientation. It consist of 6 Pins with a rated input voltage of 100 V.
Operating temperature is-20°C to 105°C
Insertion force of 4.5 kg
