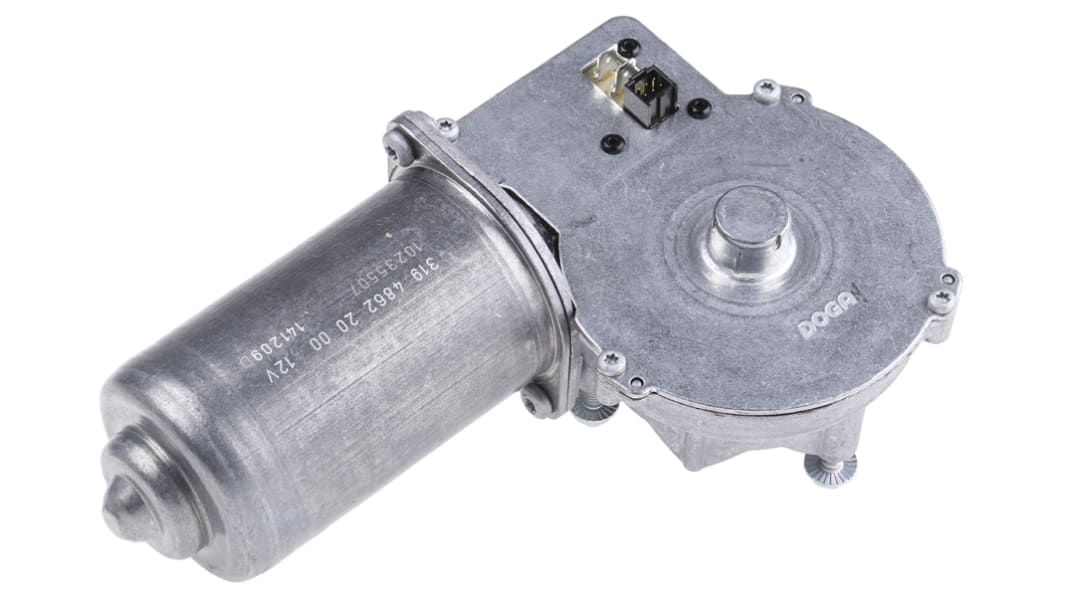

DOGA Brushed Geared DC Geared Motor, 12V dc, 50 Nm, 45rpm, 12 mm Shaft Diameter
- RS Stock No.:
- 773-6804
- Mfr. Part No.:
- 319.4862.20.00
- Brand:
- DOGA
Subtotal (1 unit)*
£281.97
(exc. VAT)
£338.36
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £281.97 |
*price indicative
- RS Stock No.:
- 773-6804
- Mfr. Part No.:
- 319.4862.20.00
- Brand:
- DOGA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DOGA | |
| Product Type | DC Geared Motor | |
| Supply Voltage | 12V dc | |
| Sub Type | Brushed Geared | |
| Output Speed | 45rpm | |
| Shaft Diameter | 12mm | |
| Maximum Output Torque | 50Nm | |
| Mount Type | Screw | |
| Gearhead Type | Worm | |
| Gear Ratio | 81:1 | |
| Material | Polylactic Acid | |
| Current Rating | 50A | |
| Length | 206.5mm | |
| Shaft Length | 25.5mm | |
| Depth | 122.7mm | |
| Standards/Approvals | RoHS | |
| Width | 60mm | |
| Core Construction | Iron Core | |
| Series | 319 | |
| Select all | ||
|---|---|---|
Brand DOGA | ||
Product Type DC Geared Motor | ||
Supply Voltage 12V dc | ||
Sub Type Brushed Geared | ||
Output Speed 45rpm | ||
Shaft Diameter 12mm | ||
Maximum Output Torque 50Nm | ||
Mount Type Screw | ||
Gearhead Type Worm | ||
Gear Ratio 81:1 | ||
Material Polylactic Acid | ||
Current Rating 50A | ||
Length 206.5mm | ||
Shaft Length 25.5mm | ||
Depth 122.7mm | ||
Standards/Approvals RoHS | ||
Width 60mm | ||
Core Construction Iron Core | ||
Series 319 | ||
Type 319 Geared dc Motors with hall sensors
Professional range of 319 series geared dc motors from DOGA. These compact motors with worm gear featuring low noise and good torque are highly reliable and excellent quality. The 319 series geared dc motors include integrated hall sensors which offer accurate feedback for speed, direction and position of the motor.
Motor with 12 Vdc or 24 Vdc
