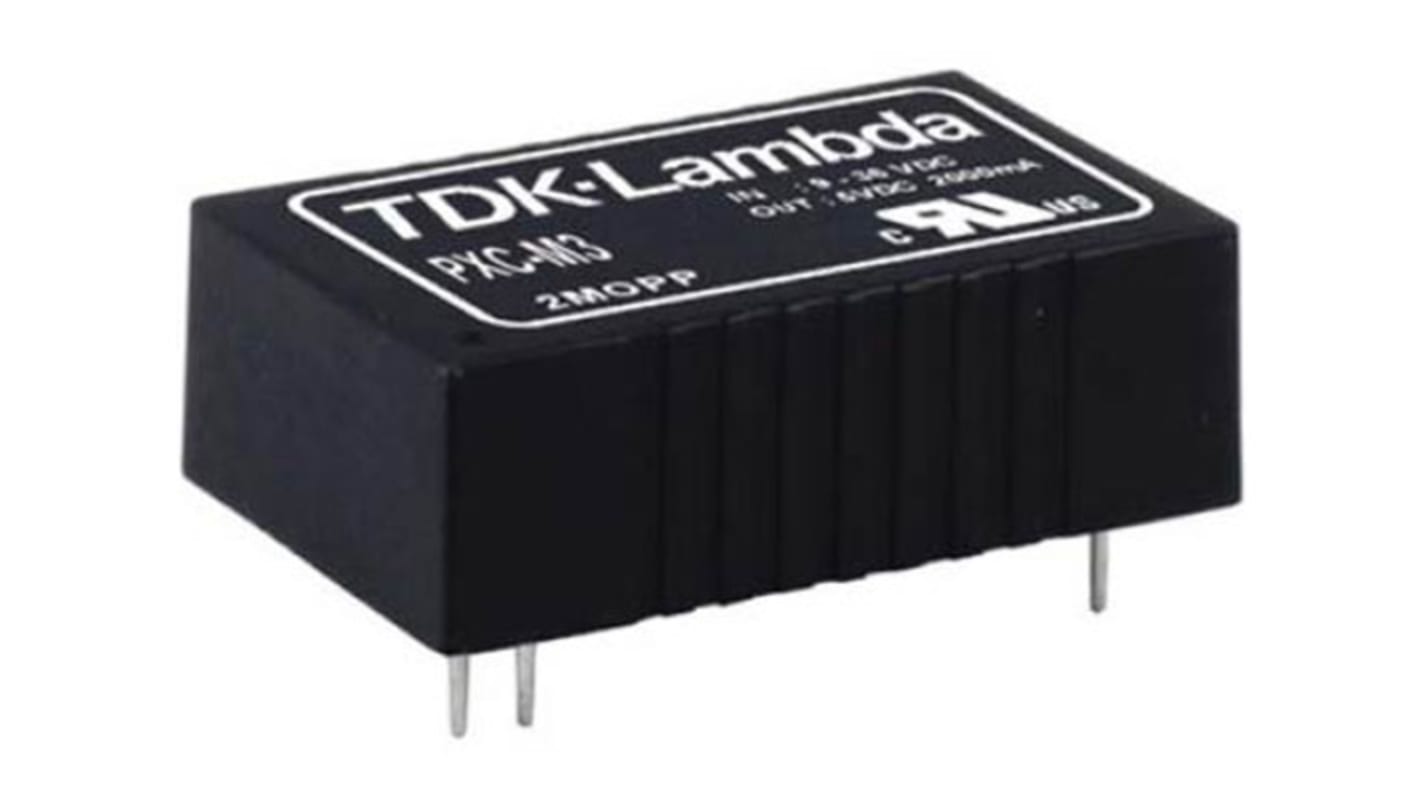

TDK-Lambda PXC-M03 DC/DC Converter, 15V dc/ 100 mA, 36V dc Input, 9V dc Input 3 W, PCB, 105 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 204-0505
- Distrelec Article No.:
- 303-60-366
- Mfr. Part No.:
- PXC-M03-24WD15
- Brand:
- TDK-Lambda
Subtotal (1 unit)*
£39.20
(exc. VAT)
£47.04
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 22 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £39.20 |
*price indicative
- RS Stock No.:
- 204-0505
- Distrelec Article No.:
- 303-60-366
- Mfr. Part No.:
- PXC-M03-24WD15
- Brand:
- TDK-Lambda
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK-Lambda | |
| Output Voltage 1 | 15V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 9V dc | |
| Maximum Input Voltage | 36V dc | |
| Output Current 1 | 100mA | |
| Output Current 2 | -0.1A | |
| Mount Type | PCB | |
| Output Voltage 2 | -15V dc | |
| Input Ratio | 4:1 | |
| MTBF | 6444000h | |
| Number of Outputs | 2 | |
| Ripple and Noise | 40mV | |
| Output Voltage Adjustment Range | ±10 % | |
| Number of Pins | 8 | |
| Isolation Voltage | 5kV | |
| Package Type | DIP | |
| Maximum Output Power | 3W | |
| Weight | 14g | |
| Length | 31.8mm | |
| Width | 20.3mm | |
| Series | PXC-M03 | |
| Standards/Approvals | No | |
| Depth | 10.2mm | |
| Efficiency | 0.86% | |
| Maximum Operating Temperature | 105°C | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand TDK-Lambda | ||
Output Voltage 1 15V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 9V dc | ||
Maximum Input Voltage 36V dc | ||
Output Current 1 100mA | ||
Output Current 2 -0.1A | ||
Mount Type PCB | ||
Output Voltage 2 -15V dc | ||
Input Ratio 4:1 | ||
MTBF 6444000h | ||
Number of Outputs 2 | ||
Ripple and Noise 40mV | ||
Output Voltage Adjustment Range ±10 % | ||
Number of Pins 8 | ||
Isolation Voltage 5kV | ||
Package Type DIP | ||
Maximum Output Power 3W | ||
Weight 14g | ||
Length 31.8mm | ||
Width 20.3mm | ||
Series PXC-M03 | ||
Standards/Approvals No | ||
Depth 10.2mm | ||
Efficiency 0.86% | ||
Maximum Operating Temperature 105°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- TW
The TDK-Lambda PXC-M03 series is a range of reliable and robust range of medically certified low-power DC-DC converters. The PXC-M series offers a compact & sturdy conversion solution. Supplied in the industry-standard DIP-24 PCB mounting footprint, and supporting up to 5000 V ac insulated input to output. Outputs can be both single & dual output depending on the application requirement. They are also suitable for a wide variety of applications within the medical & communications industries.
https://product.tdk.com/info/en/catalog/datasheets/pxc-m3_e.pdf
