TDK-Lambda PXC-M06W DC-DC Converter, ±15V dc/ ±200mA Output, 9 → 36 V dc Input, 6W, PCB Mount, +88°C Max Temp
- RS Stock No.:
- 173-9144
- Mfr. Part No.:
- PXC-M06-24WD15
- Brand:
- TDK-Lambda
Available to back order for despatch 28/10/2024
Price 1 Tube of 10
£545.17
(exc. VAT)
£654.20
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £545.17 | £54.517 |
5 - 9 | £528.81 | £52.881 |
10 - 24 | £512.46 | £51.246 |
25 - 49 | £496.10 | £49.61 |
50 + | £479.75 | £47.975 |
*price indicative
- RS Stock No.:
- 173-9144
- Mfr. Part No.:
- PXC-M06-24WD15
- Brand:
- TDK-Lambda
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

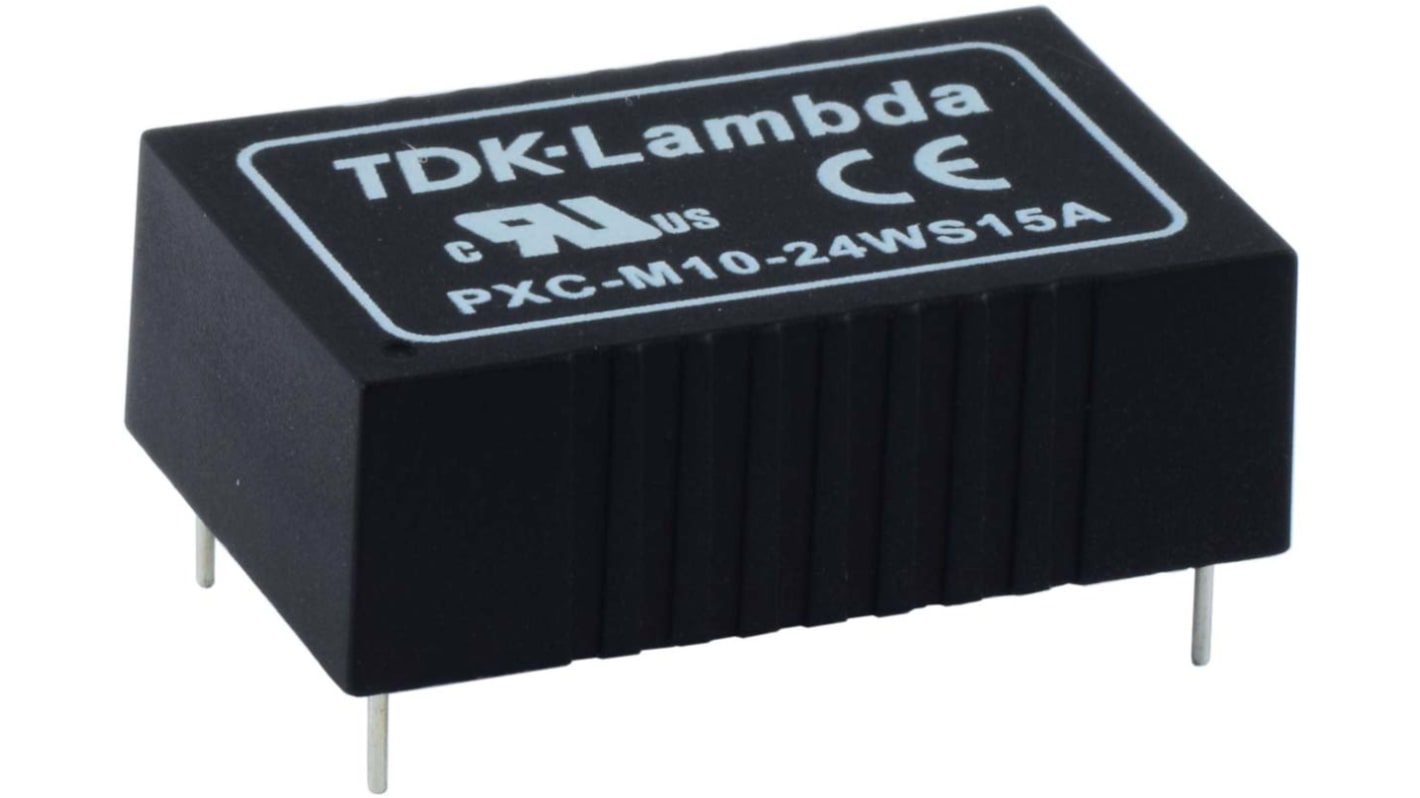

TDK-Lambda Isolated DC-DC Converter, PXC-M06 Series
Reliable & robust range of medically certified low-power DC-DC converters from Lambda-TDK. The PXC-M series offers a compact & sturdy conversion solution. Supplied in the industry-standard DIP-24 PCB mounting footprint, and supporting up to 5000 V ac insulated input to output. Outputs can be both single & dual output depending on the application requirement.
Suitable for a wide variety of applications within the medical & communications industries.
Suitable for a wide variety of applications within the medical & communications industries.
PCB mounting
Convection cooling technology, meaning the converter does not require a fan for heat dissipation
Long lifespan with a mean time before failure (MTBF) rating of 644,400 hours
Comes with industry standard safety features, such as over voltage, over temperature & short circuit protection
Convection cooling technology, meaning the converter does not require a fan for heat dissipation
Long lifespan with a mean time before failure (MTBF) rating of 644,400 hours
Comes with industry standard safety features, such as over voltage, over temperature & short circuit protection
Note
Along with the comprehensive range of 6 W options, we also offer a range of 10 W (RS Stock No. 914-7824 typical) options to ensure your application is covered.
Standards
MIL-STD-810F, EN55011, EN55022, EN61000 -4-2/3/4/5/6, IEC60601-1, ANSI/AAMI ES60601-1, EN60601-1 & CE approvals.
TDK-Lambda Isolated DC/DC Converters, PXC-M Series
Specifications
Attribute | Value |
---|---|
Output Voltage | ±15V dc |
Input Voltage Range | 9 → 36 V dc |
Power Rating | 6W |
Input Voltage Nominal | 24 V dc |
Output Current | ±200mA |
Mounting Type | PCB Mount |
Isolated | Yes |
Number of Outputs | 2 |
Output Voltage Adjustment Range | ±13.5 V dc, ±16.5V dc |
Isolation Voltage | 5kV ac |
Length | 31.8mm |
Depth | 10.2mm |
Width | 20.3mm |
Railway Approved | No |
Series | PXC-M06W |
Maximum Temperature | +88°C |
Medical Approved | Yes |
Minimum Temperature | -40°C |
Standards Met | 60601-1 Approval, ANSI/AAMI ES60601-1, CE Mark, Class A and FCC part 18, Easier System Approval, EN55011, EN55022, EN60601-1, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, IEC60601-1, MIL-STD-810F |
Efficiency | 88.5% |
