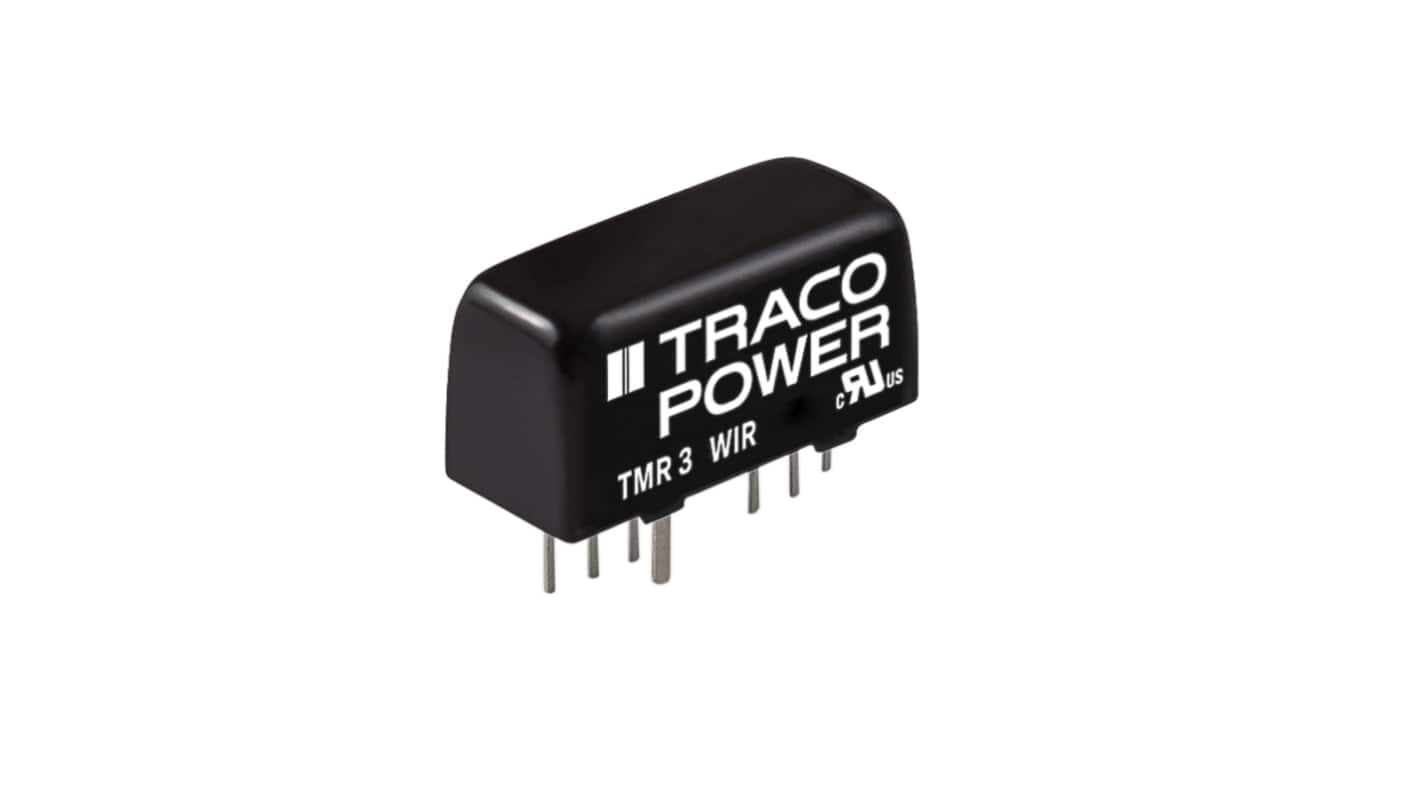

TRACOPOWER TMR 3WI Isolated DC-DC Converter, 15V dc/ 100 mA, 160V dc Input, 43V Input 3 W, Through Hole, 90 °C Max Temp

View all DC-DC Converters
Unavailable
RS will no longer stock this product.
RS Stock No.:
151-2890
Mfr. Part No.:
TMR 3-7223WIR
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage 1

15V dc

Product Type

Isolated DC-DC Converter

Maximum Input Voltage

160V dc

Minimum Input Voltage

43V

Output Current 1

100mA

Output Current 2

100mA

Output Voltage 2

-15V dc

Mount Type

Through Hole

Input Ratio

4:1

MTBF

5535000h

Number of Outputs

2

Isolation Voltage

1.6kV dc

Number of Pins

6

Maximum Output Power

3W

Package Type

SIP

Series

TMR 3WI

Standards/Approvals

No

Width

9.2mm

Length

21.8mm

Depth

11.1mm

Efficiency

81%

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

90°C

The TMR 3WIR series is a set of 3 Watt DC/DC converters in a metal case. They operate up to 78°C environment temperature at full load and up to 90°C with a 50% load derating. With 3’000 VDC I/O-isolation voltage, external On/Off, current limitation and short current protection they cover a wide range of application when space is limited. The input of the converters is designed for a wide voltage range (4:1) and minimum load is not required.

Ultra wide 4:1 Input: 9–36, 18–75 and 43–160 VDC

I/O-isolation 3’000 VDC

Fully regulated outputs

Operating temperature range –40°C to +90°C

Short circuit protection and current limitation

Remote On/Off

3-year product warranty
