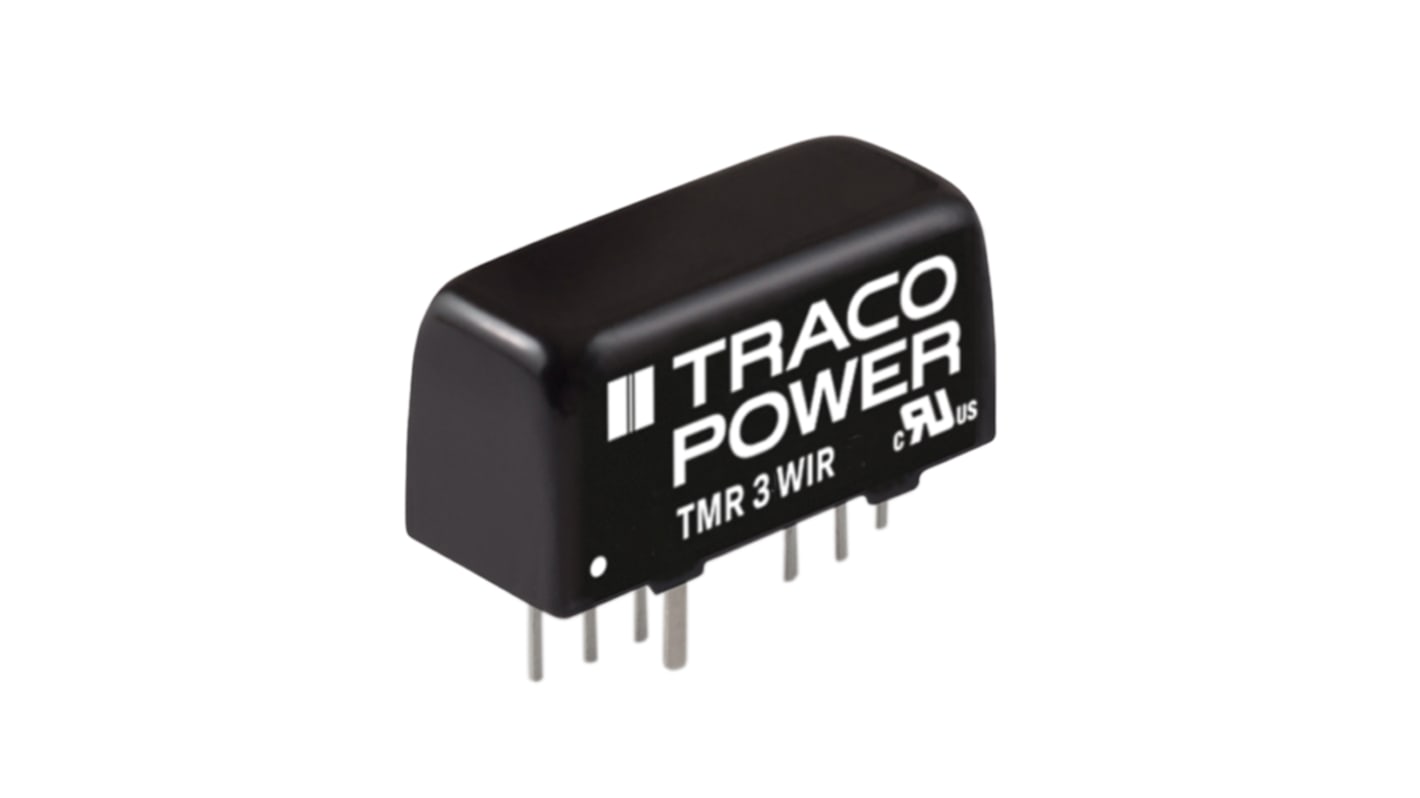

TRACOPOWER TMR 3WIR DC-DC Converter, ±15V dc/ ±100mA Output, 43 → 160 V dc Input, 3W, Through Hole
- RS Stock No.:
- 151-2078
- Mfr. Part No.:
- TMR 3-7223WIR
- Brand:
- TRACOPOWER
Available to back order for despatch 04/12/2024
Price 1 Tube of 10
£249.02
(exc. VAT)
£298.82
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £249.02 | £24.902 |
| 5 - 9 | £241.55 | £24.155 |
| 10 - 24 | £234.08 | £23.408 |
| 25 - 49 | £224.12 | £22.412 |
| 50 + | £214.16 | £21.416 |
*price indicative
- RS Stock No.:
- 151-2078
- Mfr. Part No.:
- TMR 3-7223WIR
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The TMR 3WIR series is a set of 3 Watt DC/DC converters in a metal case. They operate up to 78°C environment temperature at full load and up to 90°C with a 50% load derating. With 3’000 VDC I/O-isolation voltage, external On/Off, current limitation and short current protection they cover a wide range of application when space is limited. The input of the converters is designed for a wide voltage range (4:1) and minimum load is not required.
Ultra wide 4:1 Input: 9–36, 18–75 and 43–160 VDC
I/O-isolation 3’000 VDC
Fully regulated outputs
Operating temperature range –40°C to +90°C
Short circuit protection and current limitation
Remote On/Off
3-year product warranty
I/O-isolation 3’000 VDC
Fully regulated outputs
Operating temperature range –40°C to +90°C
Short circuit protection and current limitation
Remote On/Off
3-year product warranty
Specifications
Attribute | Value |
|---|---|
| Output Voltage | ±15V dc |
| Input Voltage Range | 43 → 160 V dc |
| Power Rating | 3W |
| Input Voltage Nominal | 110 V dc |
| Output Current | ±100mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 2 |
| Package | SIP 8 |
| Isolation Voltage | 1.6kV dc |
| Depth | 11.1mm |
| Length | 21.8mm |
| Width | 9.2mm |
| Series | TMR 3WIR |
| Railway Approved | Yes |
| Standards Met | cULus Listed, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60950-1, MIL-STD-810F, UL 94 V-0, UL/cUL 60950-1 |
| Efficiency | 81% |
