The ROE DC-DC converters are typically used in general purpose power isolation and voltage matching applications, and feature a full industrial operating temperature range of -40°C to +85°C
without derating. 3 year warranty

• Low Cost 1W Converter
• Industry Standard Pinout
• SIP4 Package
• 1kVDC Isolation
• Efficiency up to 80%
• Wide Operating Temperature Range -40°C to +85°C
• UL60950-1 Certified

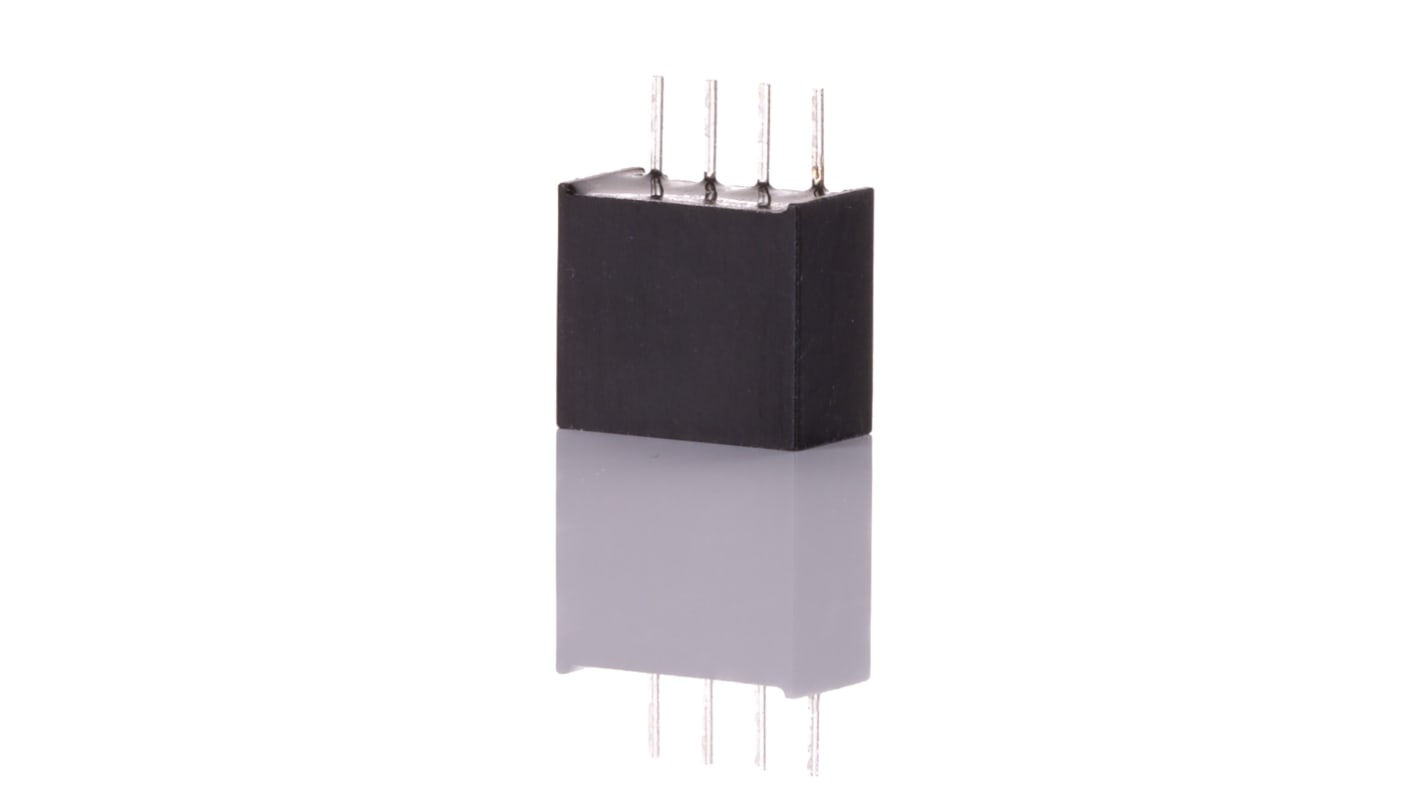

Use this DC-DC converter from RECOM to safely control the power supply to components on your PCBs. It works by stepping down an input voltage of 24V to a 5V output that's safe for your low-voltage devices. The converter has a low maximum capacitive load of 470μF to ensure high integrity output signals. Through-hole mounting gives a permanent connection on your PCB for stable voltage transmission even in vibrating systems. Converters like this are commonly used in the consumer electronics industry.

• MTBF of 20,140,000 hours at +25°C for long-term performance
• Broad operating temperature range of -40°C to +85°C for use in demanding conditions
• Efficiency of 80% for increased productivity
• Non-conductive plastic case acts as an insulator to protect you from electric shocks
• Compact dimensions 11.5 (length) x 6 (width) x 10.0mm (height) for use in setups with limited space

• Transportation industry
• Medical equipment

This unit has a power rating of 1W, making it an energy-efficient solution.

Even though it's possible to reuse this DC-DC converter, it's not advisable because it's difficult to desolder it without damaging its pins.
