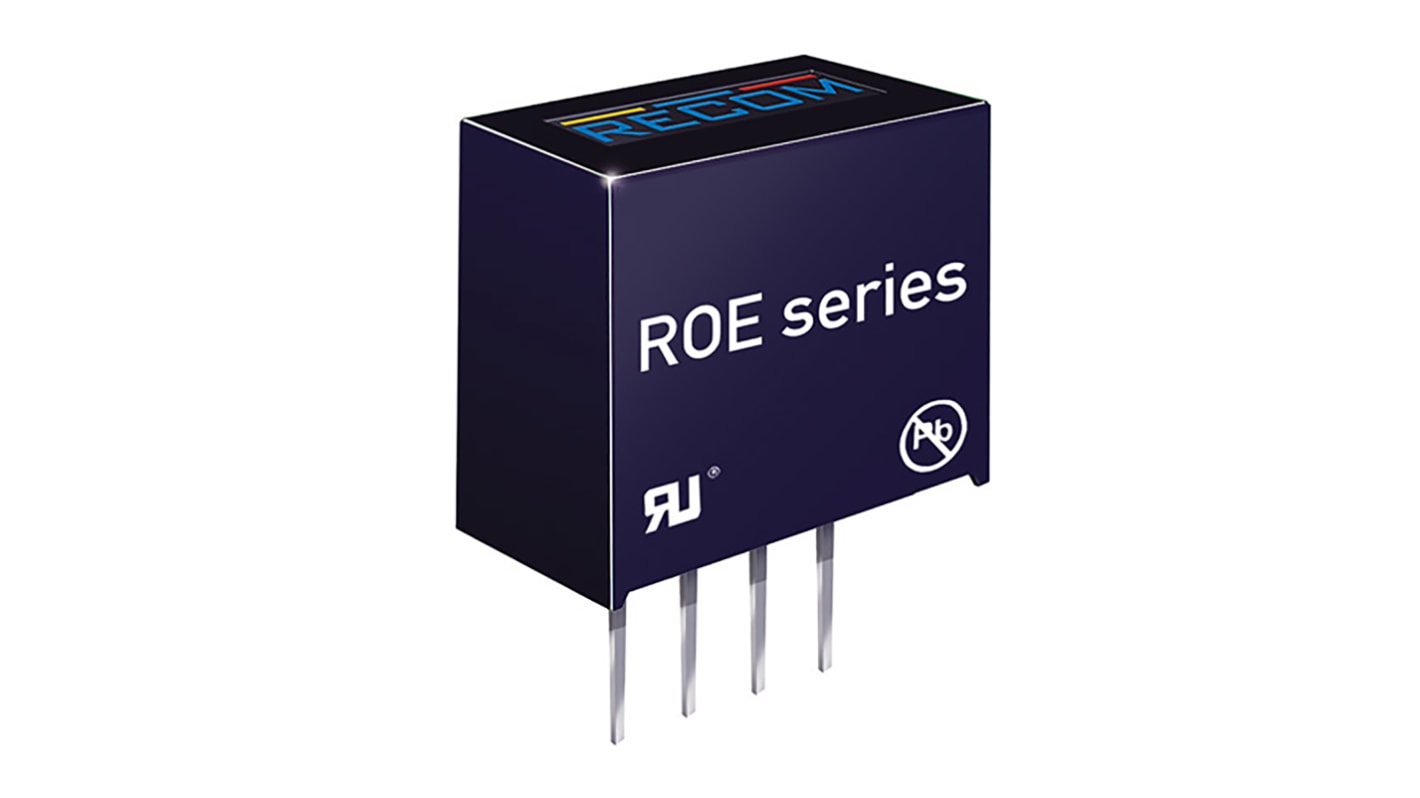

Recom ROE DC-DC Converter, 5V dc/ 200mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 139-2801
- Mfr. Part No.:
- ROE-2405S
- Brand:
- Recom
2 In stock - FREE next working day delivery available
Price 1 Tube of 42
£127.63
(exc. VAT)
£153.16
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £127.63 | £3.039 |
5 - 9 | £123.80 | £2.948 |
10 - 24 | £119.97 | £2.856 |
25 - 49 | £116.15 | £2.765 |
50 + | £112.32 | £2.674 |
*price indicative
- RS Stock No.:
- 139-2801
- Mfr. Part No.:
- ROE-2405S
- Brand:
- Recom
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Recom ROE Series 1W DC-DC Converter
The ROE DC-DC converters are typically used in general purpose power isolation and voltage matching applications, and feature a full industrial operating temperature range of -40°C to +85°C
without derating. 3 year warranty
without derating. 3 year warranty
Features and Benefits
• Low Cost 1W Converter
• Industry Standard Pinout
• SIP4 Package
• 1kVDC Isolation
• Efficiency up to 80%
• Wide Operating Temperature Range -40°C to +85°C
• UL60950-1 Certified
• Industry Standard Pinout
• SIP4 Package
• 1kVDC Isolation
• Efficiency up to 80%
• Wide Operating Temperature Range -40°C to +85°C
• UL60950-1 Certified
RECOM DC-DC Converter, 80% Efficiency, 470μF Maximum Capacitive Load - ROE Series - ROE-2405S
Use this DC-DC converter from RECOM to safely control the power supply to components on your PCBs. It works by stepping down an input voltage of 24V to a 5V output that's safe for your low-voltage devices. The converter has a low maximum capacitive load of 470μF to ensure high integrity output signals. Through-hole mounting gives a permanent connection on your PCB for stable voltage transmission even in vibrating systems. Converters like this are commonly used in the consumer electronics industry.
Features & Benefits
• MTBF of 20,140,000 hours at +25°C for long-term performance
• Broad operating temperature range of -40°C to +85°C for use in demanding conditions
• Efficiency of 80% for increased productivity
• Non-conductive plastic case acts as an insulator to protect you from electric shocks
• Compact dimensions 11.5 (length) x 6 (width) x 10.0mm (height) for use in setups with limited space
• Broad operating temperature range of -40°C to +85°C for use in demanding conditions
• Efficiency of 80% for increased productivity
• Non-conductive plastic case acts as an insulator to protect you from electric shocks
• Compact dimensions 11.5 (length) x 6 (width) x 10.0mm (height) for use in setups with limited space
Applications
• Transportation industry
• Medical equipment
• Medical equipment
What's the power rating of this DC-DC converter?
This unit has a power rating of 1W, making it an energy-efficient solution.
Can I reuse this DC-DC converter?
Even though it's possible to reuse this DC-DC converter, it's not advisable because it's difficult to desolder it without damaging its pins.
Specifications
Attribute | Value |
---|---|
Output Voltage | 5V dc |
Input Voltage Range | 21.6 → 26.4 V dc |
Power Rating | 1W |
Input Voltage Nominal | 24 V dc |
Output Current | 200mA |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 1 |
Package | SIP 4 |
Isolation Voltage | 1kV dc |
Length | 11.5mm |
Width | 6mm |
Depth | 10mm |
Series | ROE |
Load Regulation | 0.15 |
Minimum Temperature | -40°C |
Efficiency | 80% |
Maximum Temperature | +85°C |
Standards Met | CSA C22.2 No. 60950-1-07, cULus E358085 Recognised, EMI EN 55022 Class A, EMI EN 55022 Class B, UL 60950-1 2nd Edition |
