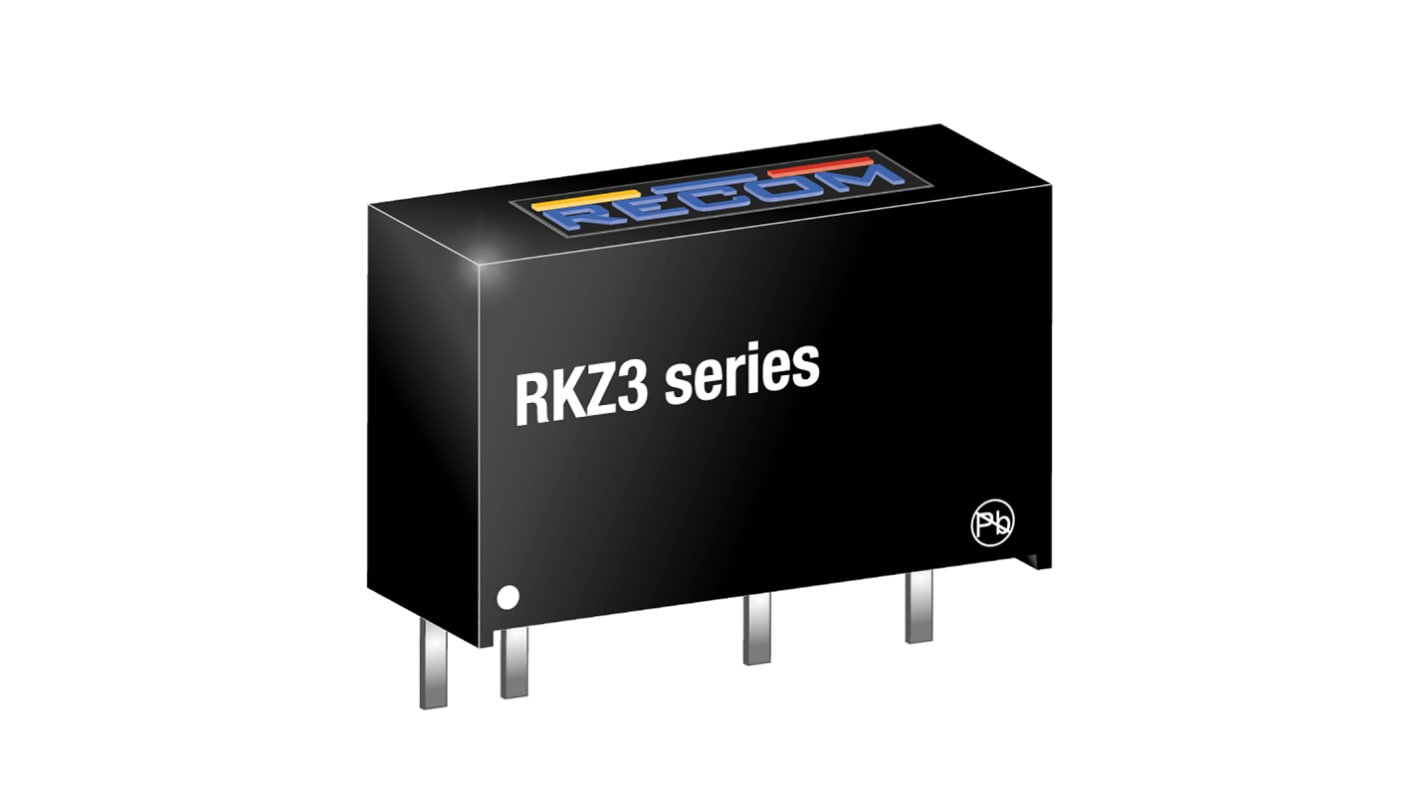

Recom RKZ3 DC-DC Converter, 5V dc/ 600mA Output, 21.6 → 26.4 V dc Input, 3W, Through Hole, +90°C Max Temp -40°C
- RS Stock No.:
- 165-4984
- Mfr. Part No.:
- RKZ3-2405S
- Brand:
- Recom
Bulk discount available
Subtotal (1 tube of 24 units)*
£187.07
(exc. VAT)
£224.48
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £187.07 | £7.795 |
5 - 9 | £181.44 | £7.56 |
10 - 24 | £175.84 | £7.327 |
25 - 49 | £170.23 | £7.093 |
50 + | £164.61 | £6.859 |
*price indicative
- RS Stock No.:
- 165-4984
- Mfr. Part No.:
- RKZ3-2405S
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Recom | |
Output Voltage | 5V dc | |
Input Voltage Range | 21.6 → 26.4 V dc | |
Power Rating | 3W | |
Input Voltage Nominal | 24 V dc | |
Output Current | 600mA | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 1 | |
Package | SIP7 | |
Isolation Voltage | 3kV dc | |
Length | 19.6mm | |
Depth | 12.2mm | |
Width | 7.5mm | |
Series | RKZ3 | |
Load Regulation | 0.1 | |
Minimum Temperature | -40°C | |
Standards Met | IEC/EN 62368-1 | |
Efficiency | 86% | |
Maximum Temperature | +90°C | |
Select all | ||
---|---|---|
Brand Recom | ||
Output Voltage 5V dc | ||
Input Voltage Range 21.6 → 26.4 V dc | ||
Power Rating 3W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 600mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP7 | ||
Isolation Voltage 3kV dc | ||
Length 19.6mm | ||
Depth 12.2mm | ||
Width 7.5mm | ||
Series RKZ3 | ||
Load Regulation 0.1 | ||
Minimum Temperature -40°C | ||
Standards Met IEC/EN 62368-1 | ||
Efficiency 86% | ||
Maximum Temperature +90°C | ||
- COO (Country of Origin):
- TW
RECOM DC-DC Converter, 20kHz Internal Operating Frequency, 3kV DC Isolation Voltage - RKZ3 Series - RKZ3-2405S
Give your PCB-linked components a safe and noise-free energy supply with this DC-DC converter from RECOM. It's housed in a non-conductive plastic case that serves as an insulator, so you can rest assured that electric shocks won't be on your worry list. The converter steps down a 24V input signal to a 5V output that's suitable for devices like relays and sensors. It performs optimally in temperatures ranging from -40°C to +90°C, so it's your dependable work partner in challenging settings.
Features & Benefits
• Isolation voltage rating of 3kV DC to handle sudden voltage surges without damage
• Power rating of 3W makes it suitable for low-power applications
• MTBF of 17,700,000 hours when operating at +25°C for long-term performance
• Stops burning in 10 seconds or less in the event of a fire, making it suitable for volatile settings
• Power rating of 3W makes it suitable for low-power applications
• MTBF of 17,700,000 hours when operating at +25°C for long-term performance
• Stops burning in 10 seconds or less in the event of a fire, making it suitable for volatile settings
Applications
• Industrial automation
• Mobile battery-powered systems
• Telecommunication industry
• Mobile battery-powered systems
• Telecommunication industry
How efficient is this DC-DC converter?
This unit is 86% efficient, which means you don't have to worry about a heatsink to handle any excess waste energy.
