Recom RKZ3 DC/DC Converter, 5V dc/ 600 mA, 26.4V dc Input, 21.6V Input 3 W, Through Hole, 90 °C Max Temp -40 °C Min
- RS Stock No.:
- 165-5084
- Mfr. Part No.:
- RKZ3-2405S
- Brand:
- Recom
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£8.90
(exc. VAT)
£10.68
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 24 unit(s) shipping from 11 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £8.90 |
| 5 - 9 | £8.64 |
| 10 - 24 | £8.38 |
| 25 - 49 | £8.12 |
| 50 + | £7.84 |
*price indicative
- RS Stock No.:
- 165-5084
- Mfr. Part No.:
- RKZ3-2405S
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage 1 | 5V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 21.6V | |
| Maximum Input Voltage | 26.4V dc | |
| Output Current 1 | 600mA | |
| Mount Type | Through Hole | |
| Number of Outputs | 1 | |
| MTBF | 8534kH | |
| Output Voltage Adjustment Range | -4 to 4 % | |
| Isolation Voltage | 3kV dc | |
| Number of Pins | 4 | |
| Package Type | SIP-7 | |
| Maximum Output Power | 3W | |
| Width | 7.5mm | |
| Standards/Approvals | No | |
| Length | 19.6mm | |
| Depth | 12.2mm | |
| Series | RKZ3 | |
| Efficiency | 86% | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 90°C | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 1 5V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 21.6V | ||
Maximum Input Voltage 26.4V dc | ||
Output Current 1 600mA | ||
Mount Type Through Hole | ||
Number of Outputs 1 | ||
MTBF 8534kH | ||
Output Voltage Adjustment Range -4 to 4 % | ||
Isolation Voltage 3kV dc | ||
Number of Pins 4 | ||
Package Type SIP-7 | ||
Maximum Output Power 3W | ||
Width 7.5mm | ||
Standards/Approvals No | ||
Length 19.6mm | ||
Depth 12.2mm | ||
Series RKZ3 | ||
Efficiency 86% | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 90°C | ||
- COO (Country of Origin):
- TW

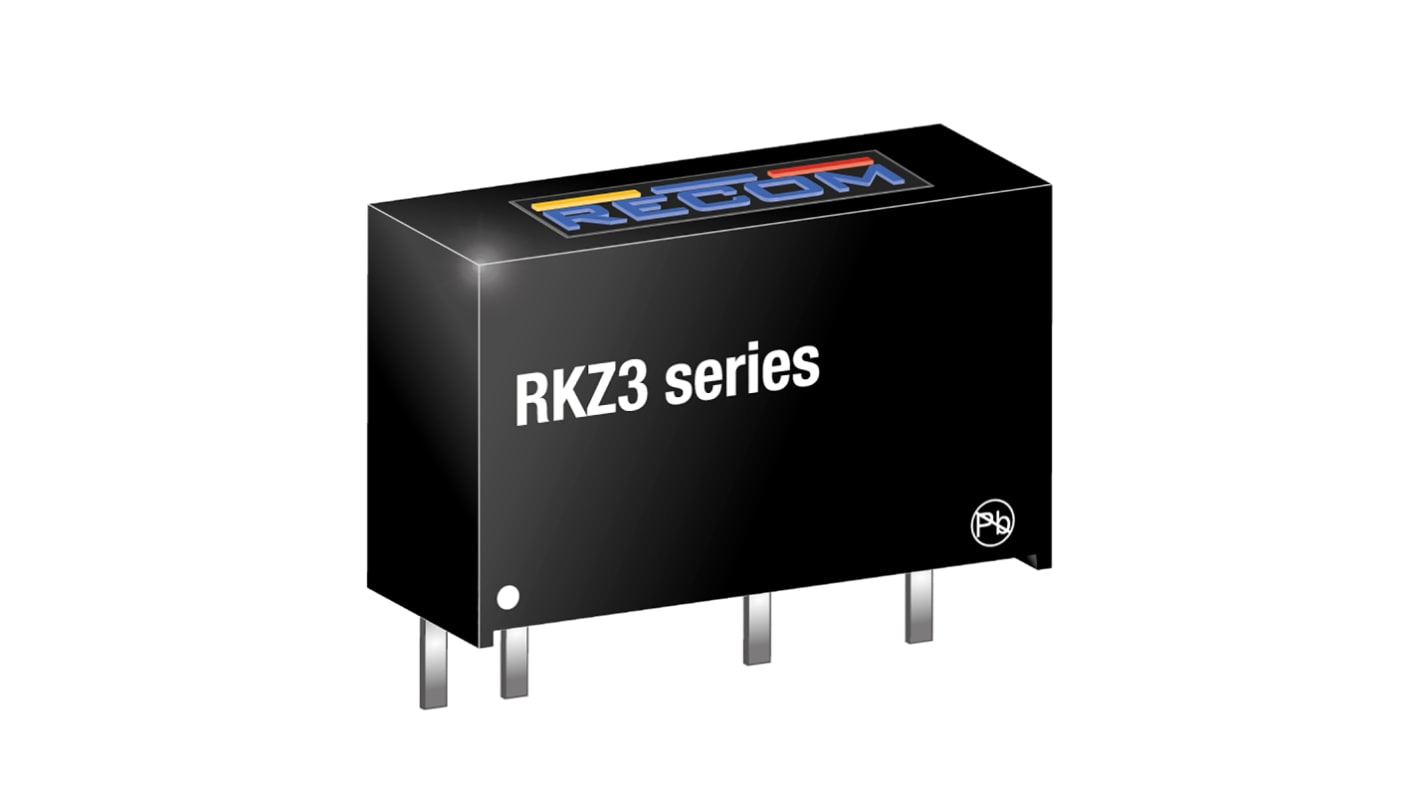

RECOM DC-DC Converter, 20kHz Internal Operating Frequency, 3kV DC Isolation Voltage - RKZ3 Series - RKZ3-2405S
Give your PCB-linked components a safe and noise-free energy supply with this DC-DC converter from RECOM. It's housed in a non-conductive plastic case that serves as an insulator, so you can rest assured that electric shocks won't be on your worry list. The converter steps down a 24V input signal to a 5V output that's suitable for devices like relays and sensors. It performs optimally in temperatures ranging from -40°C to +90°C, so it's your dependable work partner in challenging settings.
Features & Benefits
• Isolation voltage rating of 3kV DC to handle sudden voltage surges without damage
• Power rating of 3W makes it suitable for low-power applications
• MTBF of 17,700,000 hours when operating at +25°C for long-term performance
• Stops burning in 10 seconds or less in the event of a fire, making it suitable for volatile settings
Applications
• Industrial automation
• Mobile battery-powered systems
• Telecommunication industry
How efficient is this DC-DC converter?
This unit is 86% efficient, which means you don't have to worry about a heatsink to handle any excess waste energy.
