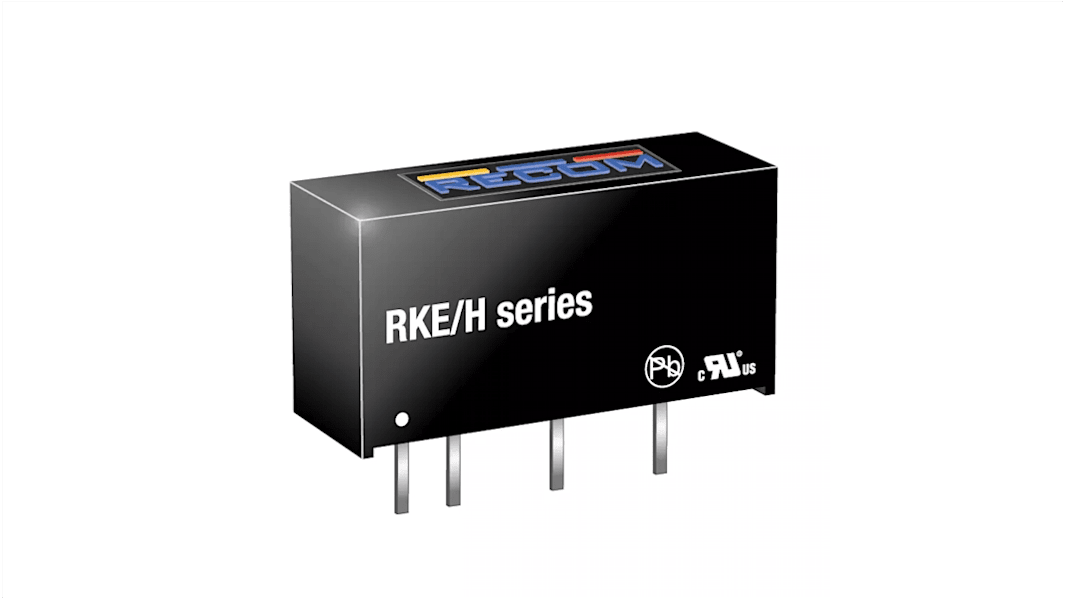

Recom RKE/H DC-DC Converter, 5V dc/ 200mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 124-2111
- Mfr. Part No.:
- RKE-1205S/H
- Brand:
- Recom
Bulk discount available
Subtotal (1 unit)*
£4.51
(exc. VAT)
£5.41
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 22 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £4.51 |
| 5 - 9 | £4.37 |
| 10 - 24 | £4.23 |
| 25 - 49 | £4.10 |
| 50 + | £3.97 |
*price indicative
- RS Stock No.:
- 124-2111
- Mfr. Part No.:
- RKE-1205S/H
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage | 5V dc | |
| Input Voltage Range | 10.8 → 13.2 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | 200mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | -10 → +10% | |
| Package | SIP | |
| Isolation Voltage | 4kV dc | |
| Length | 19.65mm | |
| Depth | 10.2mm | |
| Width | 7.05mm | |
| Series | RKE/H | |
| Load Regulation | 0.15 | |
| Maximum Temperature | +85°C | |
| Efficiency | 80% | |
| Minimum Temperature | -40°C | |
| Standards Met | Class B, CSA C22.2 No. 60601-1, cURus E358085, EN 55022, IEC/EN 60950-1, REACH, UL 60950-1 | |
Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 5V dc | ||
Input Voltage Range 10.8 → 13.2 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 12 V dc | ||
Output Current 200mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range -10 → +10% | ||
Package SIP | ||
Isolation Voltage 4kV dc | ||
Length 19.65mm | ||
Depth 10.2mm | ||
Width 7.05mm | ||
Series RKE/H | ||
Load Regulation 0.15 | ||
Maximum Temperature +85°C | ||
Efficiency 80% | ||
Minimum Temperature -40°C | ||
Standards Met Class B, CSA C22.2 No. 60601-1, cURus E358085, EN 55022, IEC/EN 60950-1, REACH, UL 60950-1 | ||
- COO (Country of Origin):
- TW
RECOM DC-DC Converter, 80% Efficiency, 4kV DC Isolation - RKE/H Series - RKE-1205S/H
Make efficient power conversion a doddle with this DC-DC converter from RECOM. It takes a nominal input voltage of 12V DC and steps it down to provide a stable output of 5V DC for use with your battery-supplied components. Thanks to the unit's super-high 4kV DC isolation, you can rest assured it shields you and your equipment from harmful surge voltages. This makes it a safety-boosting option that's a practical pick for tough industrial power applications. There's also no need for a heatsink or fan, as this converter's 80% efficiency means it produces little waste energy as heat.
Features & Benefits
• Broad temperature tolerance from -40°C to +85°C makes it a safe bet for tough environments
• Low ripple and noise of typically 40mVp-p, so you can count on minimal disturbance from EMI
• ±1.2% line regulation and 3% load regulation give you close control of input and output values
• Mean time between failures of 13,200,000 hours lets you know it's built to last
• Low ripple and noise of typically 40mVp-p, so you can count on minimal disturbance from EMI
• ±1.2% line regulation and 3% load regulation give you close control of input and output values
• Mean time between failures of 13,200,000 hours lets you know it's built to last
Applications
• Medical devices
• Industrial power supplies
• Testing and measurement equipment
• Industrial power supplies
• Testing and measurement equipment
What's the benefit of this unit's vibration resistance?
Vibration resistance means this converter can handle being positioned near moving industrial machinery without suffering a drop in performance.
