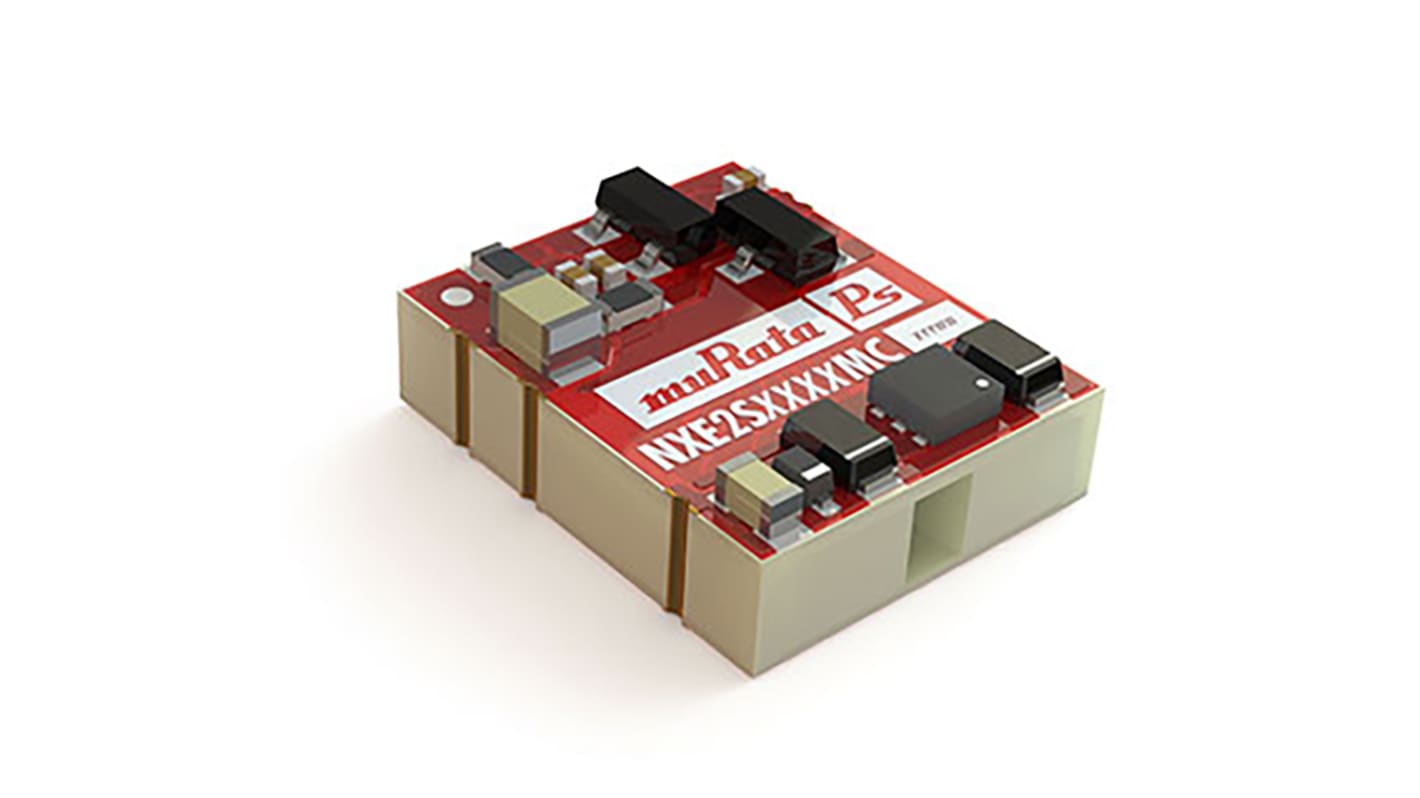

Murata Power Solutions NXE2 DC/DC Converter, 12V/ 167 mA, 12V Input 2 W, Surface, 85 °C Max Temp -40 °C Min Temp, 14-Pin
- RS Stock No.:
- 123-4631
- Mfr. Part No.:
- NXE2S1212MC-R7
- Brand:
- Murata Power Solutions
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 123-4631
- Mfr. Part No.:
- NXE2S1212MC-R7
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata Power Solutions | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 12V | |
| Maximum Input Voltage | 12V | |
| Output Current 1 | 167mA | |
| Mount Type | Surface | |
| Number of Outputs | 1 | |
| MTBF | 58568kH | |
| Ripple and Noise | 60mV Pk-Pk | |
| Isolation Voltage | 3kV | |
| Number of Pins | 14 | |
| Package Type | Surface Mount | |
| Maximum Output Power | 2W | |
| Depth | 4.41mm | |
| Length | 12.7mm | |
| Width | 10.41mm | |
| Standards/Approvals | RoHS | |
| Series | NXE2 | |
| Weight | 1.2g | |
| Maximum Operating Temperature | 85°C | |
| Efficiency | 76.5% | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Murata Power Solutions | ||
Product Type DC/DC Converter | ||
Output Voltage 1 12V | ||
Maximum Input Voltage 12V | ||
Output Current 1 167mA | ||
Mount Type Surface | ||
Number of Outputs 1 | ||
MTBF 58568kH | ||
Ripple and Noise 60mV Pk-Pk | ||
Isolation Voltage 3kV | ||
Number of Pins 14 | ||
Package Type Surface Mount | ||
Maximum Output Power 2W | ||
Depth 4.41mm | ||
Length 12.7mm | ||
Width 10.41mm | ||
Standards/Approvals RoHS | ||
Series NXE2 | ||
Weight 1.2g | ||
Maximum Operating Temperature 85°C | ||
Efficiency 76.5% | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- GB
Murata NXE Series Isolated DC-DC Converter
Murata NXE series are a cost effective low profile, fully automated surface mounted isolated DC-DC converters. The NXE series are constructed with a substrate embedded transformer, providing increased product longevity & reliability within a halogen-free package.
The NXE series are designed with an industrial standard footprint, so retro fitting is possible or can be designed into new applications without any hassle.
Features and Benefits
Hi Pot Test 3k V dc isolation.
Industry standard footprint.
Halogen free.
Lower profile compared to conventional converters.
Sustrate embedded transformer.
Murata Power Solutions - 0.75W to 15W
