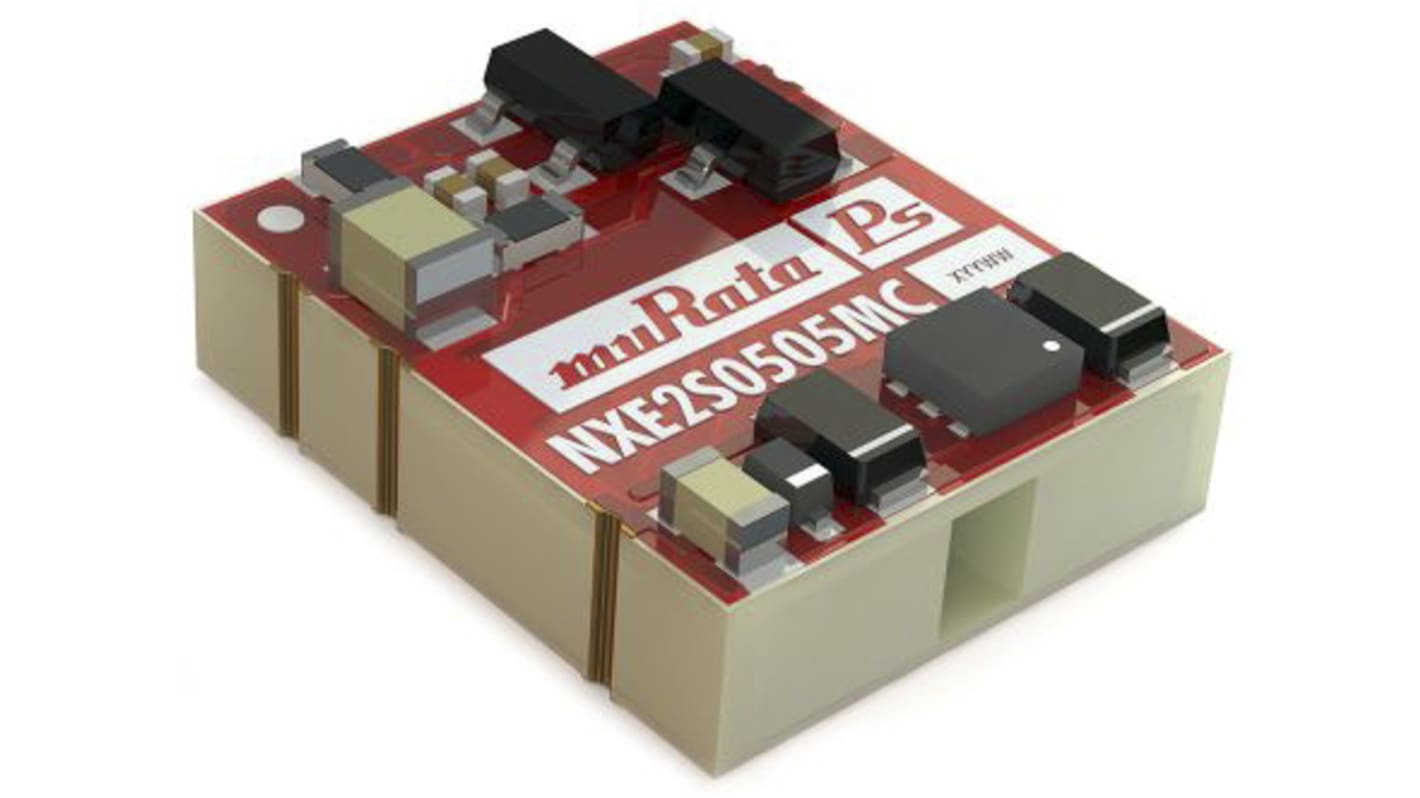

Murata Power Solutions NXE2 DC-DC Converter, 5V dc/ 400mA Output, 10.8 → 13.2 V dc Input, 2W, Surface Mount,
- RS Stock No.:
- 167-0983
- Mfr. Part No.:
- NXE2S1205MC-R7
- Brand:
- Murata Power Solutions
1 In stock - FREE next working day delivery available
Added
Price 1 Reel of 180
£657.16
(exc. VAT)
£788.59
(inc. VAT)
| Reel(s) | Per Reel | Per unit* |
| 1 - 4 | £657.16 | £3.651 |
| 5 - 9 | £637.44 | £3.541 |
| 10 - 24 | £617.73 | £3.432 |
| 25 - 49 | £598.01 | £3.322 |
| 50 + | £578.30 | £3.213 |
| *price indicative | ||
- RS Stock No.:
- 167-0983
- Mfr. Part No.:
- NXE2S1205MC-R7
- Brand:
- Murata Power Solutions
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Murata NXE Series Isolated DC-DC Converter
Murata NXE series are a cost effective low profile, fully automated surface mounted isolated DC-DC converters. The NXE series are constructed with a substrate embedded transformer, providing increased product longevity & reliability within a halogen-free package.
The NXE series are designed with an industrial standard footprint, so retro fitting is possible or can be designed into new applications without any hassle.
The NXE series are designed with an industrial standard footprint, so retro fitting is possible or can be designed into new applications without any hassle.
Features and Benefits
Hi Pot Test 3k V dc isolation.
Industry standard footprint.
Halogen free.
Lower profile compared to conventional converters.
Sustrate embedded transformer.
Murata Power Solutions - 0.75W to 15W
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 5V dc |
| Input Voltage Range | 10.8 → 13.2 V dc |
| Power Rating | 2W |
| Input Voltage Nominal | 12 V dc |
| Output Current | 400mA |
| Mounting Type | Surface Mount |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | iLGA |
| Isolation Voltage | 3kV dc |
| Length | 12.7mm |
| Width | 10.41mm |
| Depth | 4.41mm |
| Series | NXE2 |
| Load Regulation | Maximum of 12% |
| Maximum Temperature | +85°C |
| Efficiency | 77% |
| Minimum Temperature | -40°C |
