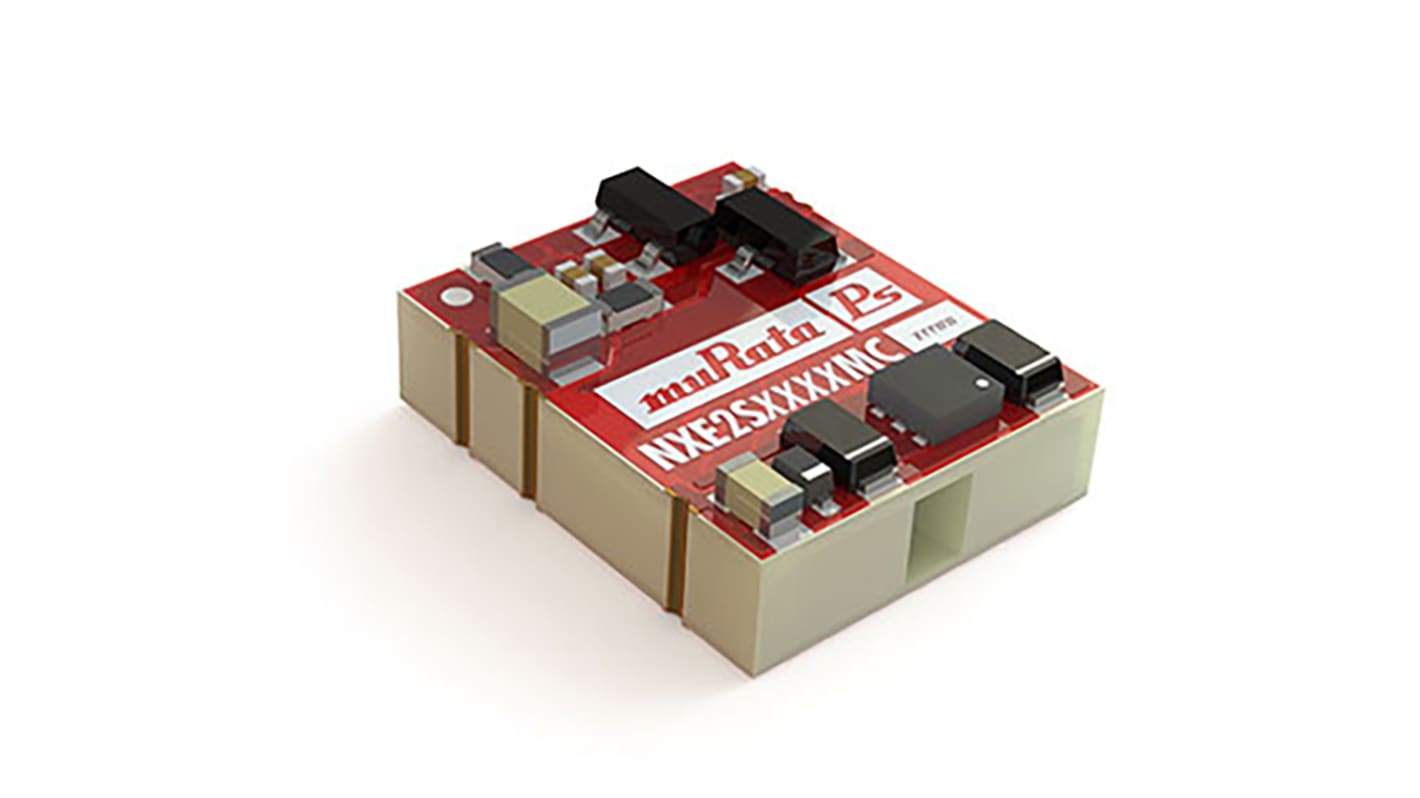

Murata Power Solutions NXE2 DC/DC Converter, 15V dc/ 133 mA, 12V dc Input, 10.8V dc Input 2 W, Surface Mount, 85 °C Max
- RS Stock No.:
- 123-4632
- Mfr. Part No.:
- NXE2S1215MC-R7
- Brand:
- Murata Power Solutions
Subtotal (1 unit)*
£2.75
(exc. VAT)
£3.30
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 147 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2.75 |
*price indicative
- RS Stock No.:
- 123-4632
- Mfr. Part No.:
- NXE2S1215MC-R7
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata Power Solutions | |
| Output Voltage 1 | 15V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 10.8V dc | |
| Maximum Input Voltage | 12V dc | |
| Output Current 1 | 133mA | |
| Mount Type | Surface Mount | |
| Number of Outputs | 1 | |
| MTBF | 58568kH | |
| Number of Pins | 14 | |
| Isolation Voltage | 3kV dc | |
| Package Type | Surface Mount | |
| Maximum Output Power | 2W | |
| Series | NXE2 | |
| Width | 10.41mm | |
| Depth | 4.41mm | |
| Weight | 1.2g | |
| Standards/Approvals | RoHS | |
| Length | 12.7mm | |
| Efficiency | 79% | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Murata Power Solutions | ||
Output Voltage 1 15V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 10.8V dc | ||
Maximum Input Voltage 12V dc | ||
Output Current 1 133mA | ||
Mount Type Surface Mount | ||
Number of Outputs 1 | ||
MTBF 58568kH | ||
Number of Pins 14 | ||
Isolation Voltage 3kV dc | ||
Package Type Surface Mount | ||
Maximum Output Power 2W | ||
Series NXE2 | ||
Width 10.41mm | ||
Depth 4.41mm | ||
Weight 1.2g | ||
Standards/Approvals RoHS | ||
Length 12.7mm | ||
Efficiency 79% | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- GB
Murata NXE Series Isolated DC-DC Converter
Murata NXE series are a cost effective low profile, fully automated surface mounted isolated DC-DC converters. The NXE series are constructed with a substrate embedded transformer, providing increased product longevity & reliability within a halogen-free package.
The NXE series are designed with an industrial standard footprint, so retro fitting is possible or can be designed into new applications without any hassle.
Features and Benefits
Hi Pot Test 3k V dc isolation.
Industry standard footprint.
Halogen free.
Lower profile compared to conventional converters.
Sustrate embedded transformer.
Murata Power Solutions - 0.75W to 15W
