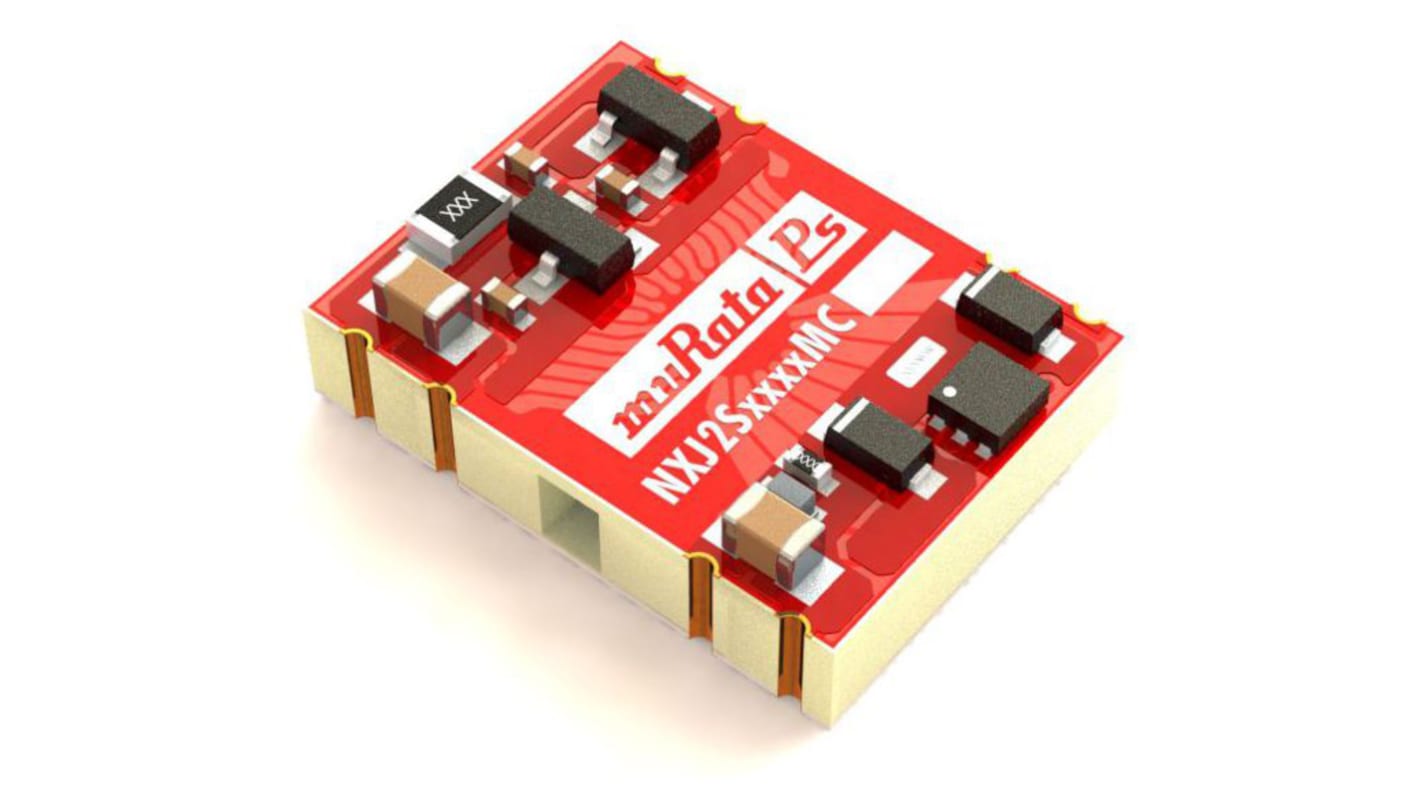

Murata Power Solutions NXJ2 DC-DC Converter, 12V dc/ 167mA Output, 10.8 → 13.2 V dc Input, 2W, Surface Mount,
- RS Stock No.:
- 187-5030
- Mfr. Part No.:
- NXJ2S1212MC-R7
- Brand:
- Murata Power Solutions
194 In stock - FREE next working day delivery available
Price Each
£4.89
(exc. VAT)
£5.87
(inc. VAT)
Units | Per unit |
1 - 4 | £4.89 |
5 - 9 | £4.74 |
10 - 24 | £4.59 |
25 - 49 | £4.45 |
50 + | £4.30 |
- RS Stock No.:
- 187-5030
- Mfr. Part No.:
- NXJ2S1212MC-R7
- Brand:
- Murata Power Solutions
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
The NXJ2 series is a new range of lower profile, fully automated manufacture surface mount DC-DC converters. The NXJ2 series automated manufacturing process with substrate Embedded Transformer, offers increased product reliability and repeatability of performance in a halogen free, iLGA inspectable package. The NXJ2 series, industry standard footprint is compatible with existing designs. The NXJ2 series is compatible with a peak reflow solder temperature of 260˚C .
Patents pending
Lower Profile
Substrate Embedded Transformer
Automated Manufacture
Short Circuit Protection3
Halogen Free
Lower Profile
Substrate Embedded Transformer
Automated Manufacture
Short Circuit Protection3
Halogen Free
Specifications
Attribute | Value |
---|---|
Output Voltage | 12V dc |
Input Voltage Range | 10.8 → 13.2 V dc |
Power Rating | 2W |
Input Voltage Nominal | 12 V dc |
Output Current | 167mA |
Mounting Type | Surface Mount |
Isolated | Yes |
Number of Outputs | 1 |
Package | SMD |
Isolation Voltage | 5.2kV dc |
Depth | 4.41mm |
Width | 11.43mm |
Length | 15.49mm |
Series | NXJ2 |
Load Regulation | 0.09 |
Maximum Temperature | +85°C |
Efficiency | 75% |
Minimum Temperature | -40°C |
