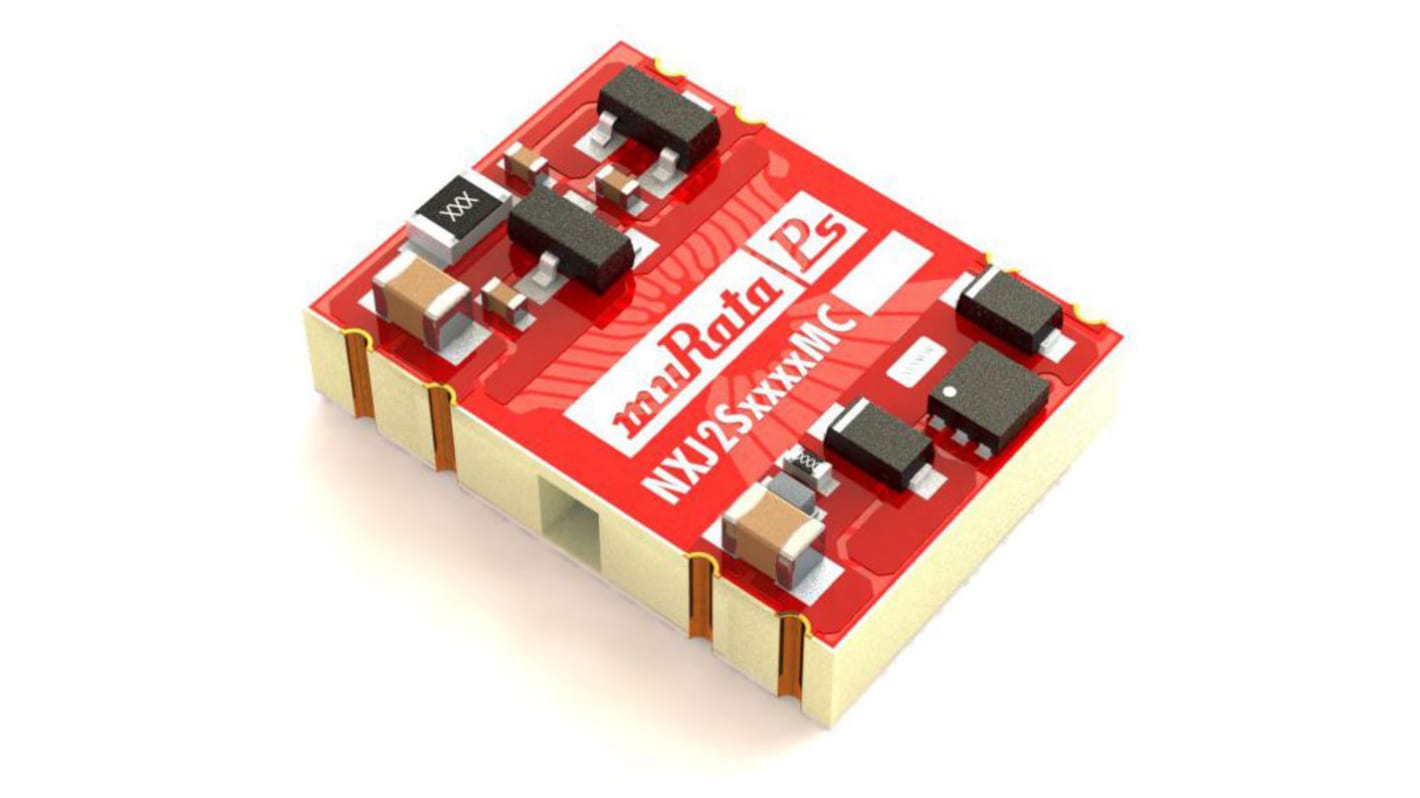

Murata Power Solutions NXJ2 DC/DC Converter, 5V dc/ 400 mA, 5V dc Input, 85 °C Max Temp -40 °C Min Temp, 12-Pin Surface
- RS Stock No.:
- 187-5022
- Mfr. Part No.:
- NXJ2S0505MC-R7
- Brand:
- Murata Power Solutions
Bulk discount available
View bulk pricing optionsSubtotal (135 units, on reels of 135)*
£592.66
(exc. VAT)
£711.19
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 12 April 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 - 4 | £592.66 | £4.39 |
| 5 - 9 | £574.88 | £4.258 |
| 10 - 24 | £557.10 | £4.127 |
| 25 - 49 | £539.32 | £3.995 |
| 50 + | £524.32 | £3.884 |
*price indicative
- RS Stock No.:
- 187-5022
- Mfr. Part No.:
- NXJ2S0505MC-R7
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata Power Solutions | |
| Output Voltage 1 | 5V dc | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 5V dc | |
| Output Current 1 | 400mA | |
| Number of Outputs | 1 | |
| Number of Pins | 12 | |
| Isolation Voltage | 5.2kV dc | |
| Package Type | Surface Mount | |
| Series | NXJ2 | |
| Length | 15.49mm | |
| Standards/Approvals | RoHS | |
| Weight | 1.38g | |
| Depth | 4.41mm | |
| Width | 11.43mm | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 72.5% | |
| Select all | ||
|---|---|---|
Brand Murata Power Solutions | ||
Output Voltage 1 5V dc | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 5V dc | ||
Output Current 1 400mA | ||
Number of Outputs 1 | ||
Number of Pins 12 | ||
Isolation Voltage 5.2kV dc | ||
Package Type Surface Mount | ||
Series NXJ2 | ||
Length 15.49mm | ||
Standards/Approvals RoHS | ||
Weight 1.38g | ||
Depth 4.41mm | ||
Width 11.43mm | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
Efficiency 72.5% | ||
- COO (Country of Origin):
- GB
The NXJ2 series is a new range of lower profile, fully automated manufacture surface mount DC-DC converters. The NXJ2 series automated manufacturing process with substrate Embedded Transformer, offers increased product reliability and repeatability of performance in a halogen free, iLGA inspectable package. The NXJ2 series, industry standard footprint is compatible with existing designs. The NXJ2 series is compatible with a peak reflow solder temperature of 260˚C .
Patents pending
Lower Profile
Substrate Embedded Transformer
Automated Manufacture
Short Circuit Protection3
Halogen Free
