Murata Power Solutions NXE1 DC-DC Converter, 5V dc/ 200mA Output, 2.97 → 3.63 V dc Input, 1W, Surface Mount,
- RS Stock No.:
- 167-0981
- Mfr. Part No.:
- NXE1S0305MC-R7
- Brand:
- Murata Power Solutions
Bulk discount available
Subtotal (1 reel of 180 units)*
£402.32
(exc. VAT)
£482.78
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
---|---|---|
1 - 4 | £402.32 | £2.235 |
5 - 9 | £390.25 | £2.168 |
10 - 24 | £378.18 | £2.101 |
25 - 49 | £366.11 | £2.034 |
50 + | £354.04 | £1.967 |
*price indicative
- RS Stock No.:
- 167-0981
- Mfr. Part No.:
- NXE1S0305MC-R7
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Murata Power Solutions | |
Output Voltage | 5V dc | |
Input Voltage Range | 2.97 → 3.63 V dc | |
Power Rating | 1W | |
Input Voltage Nominal | 3.3 V dc | |
Output Current | 200mA | |
Mounting Type | Surface Mount | |
Isolated | Yes | |
Number of Outputs | 1 | |
Package | iLGA | |
Isolation Voltage | 3kV dc | |
Depth | 4.36mm | |
Length | 12.7mm | |
Width | 10.41mm | |
Series | NXE1 | |
Load Regulation | Maximum of 13% | |
Efficiency | 70% | |
Minimum Temperature | -40°C | |
Standards Met | ANSI/AAMI ES60601-1, UL 60950 | |
Maximum Temperature | +85°C | |
Select all | ||
---|---|---|
Brand Murata Power Solutions | ||
Output Voltage 5V dc | ||
Input Voltage Range 2.97 → 3.63 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 3.3 V dc | ||
Output Current 200mA | ||
Mounting Type Surface Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package iLGA | ||
Isolation Voltage 3kV dc | ||
Depth 4.36mm | ||
Length 12.7mm | ||
Width 10.41mm | ||
Series NXE1 | ||
Load Regulation Maximum of 13% | ||
Efficiency 70% | ||
Minimum Temperature -40°C | ||
Standards Met ANSI/AAMI ES60601-1, UL 60950 | ||
Maximum Temperature +85°C | ||
- COO (Country of Origin):
- GB

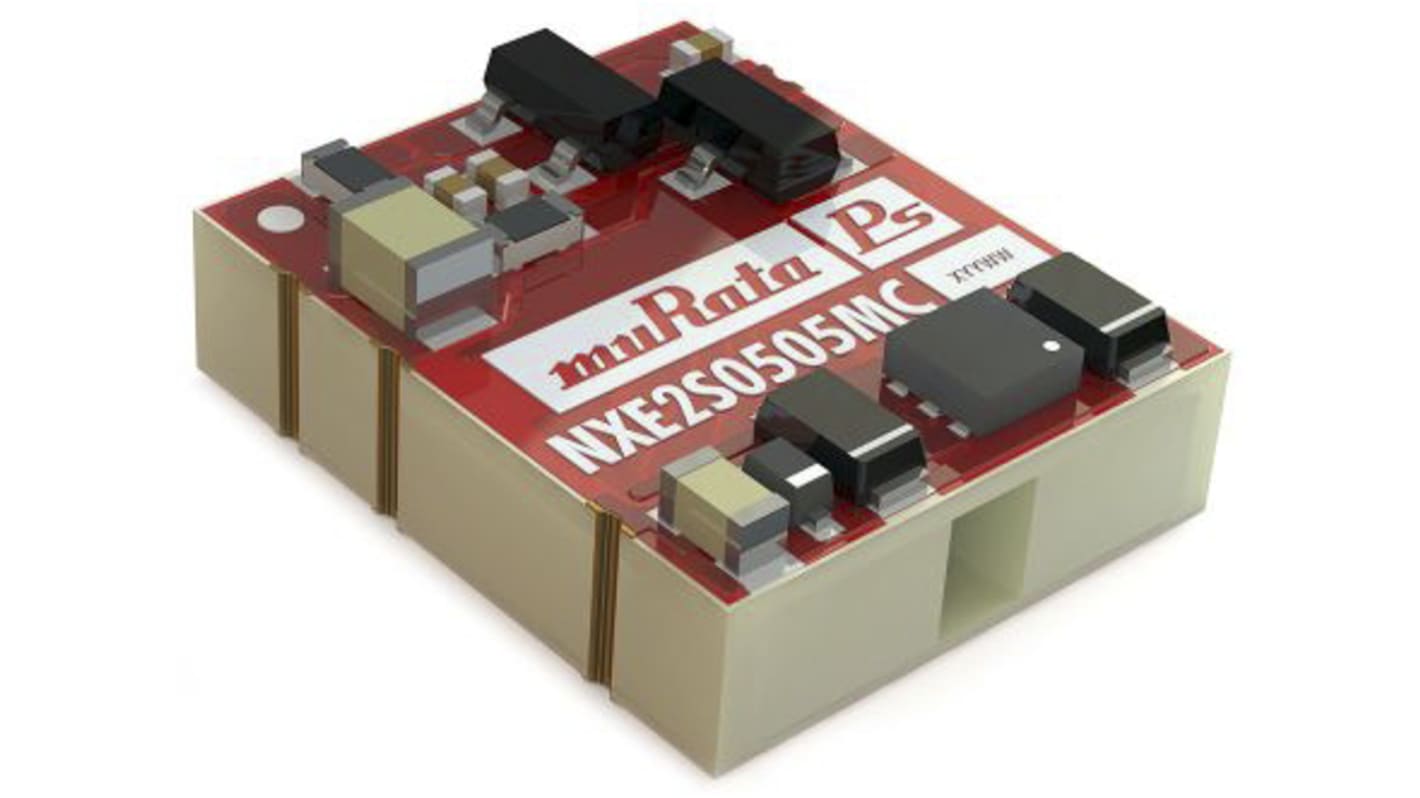

Murata NXE Series Isolated DC-DC Converter
Murata NXE series are a cost effective low profile, fully automated surface mounted isolated DC-DC converters. The NXE series are constructed with a substrate embedded transformer, providing increased product longevity & reliability within a halogen-free package.
The NXE series are designed with an industrial standard footprint, so retro fitting is possible or can be designed into new applications without any hassle.
The NXE series are designed with an industrial standard footprint, so retro fitting is possible or can be designed into new applications without any hassle.
Features and Benefits
Hi Pot Test 3k V dc isolation.
Industry standard footprint.
Halogen free.
Lower profile compared to conventional converters.
Sustrate embedded transformer.
Murata Power Solutions - 0.75W to 15W
