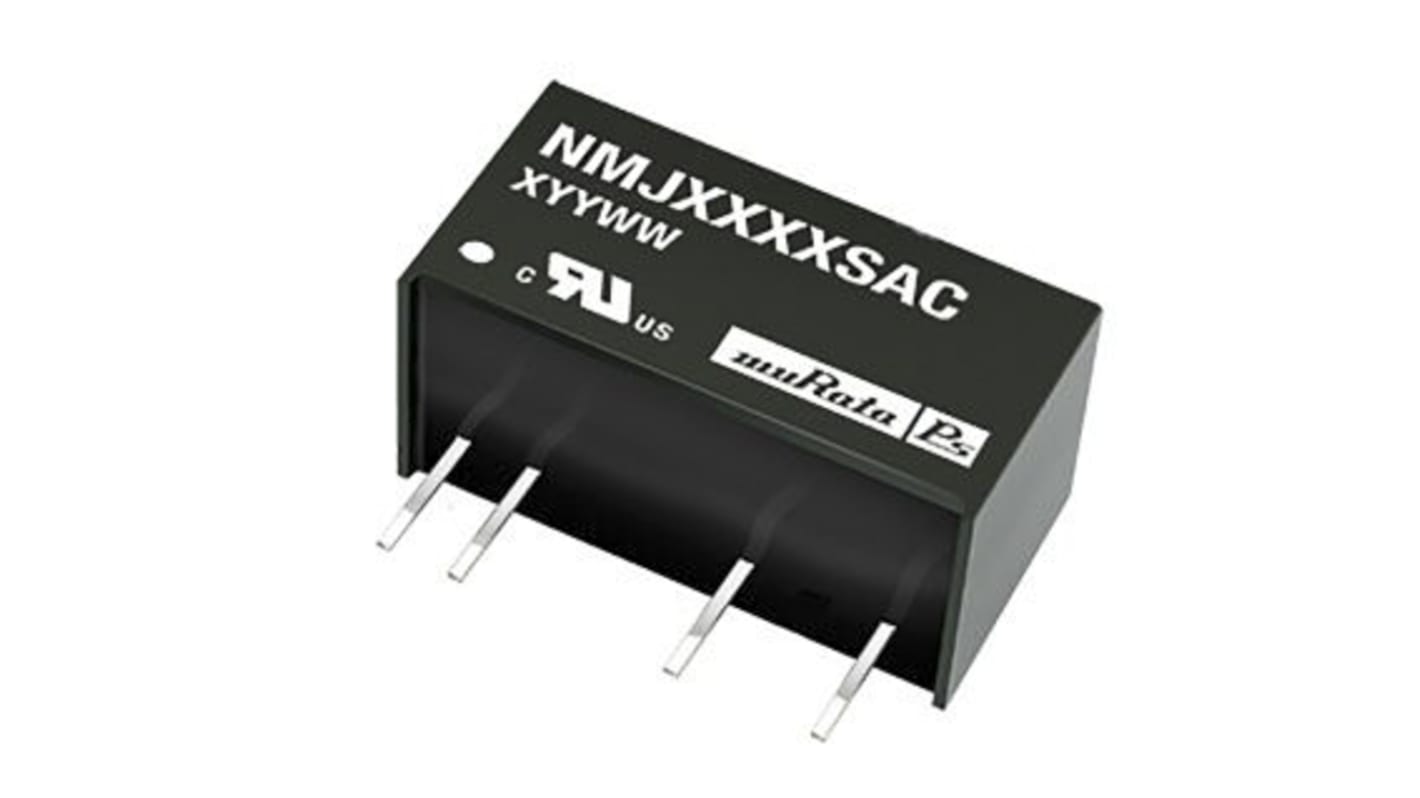

Murata Power Solutions NMJ DC-DC Converter, 3.3V dc/ 300mA Output, 2.97 → 3.63 V dc Input, 1W, Through Hole,
- RS Stock No.:
- 167-0757
- Mfr. Part No.:
- NMJ0303SAC
- Brand:
- Murata Power Solutions
Available to back order for despatch 02/10/2024
Added
Price 1 Tube of 25
£283.39
(exc. VAT)
£340.07
(inc. VAT)
| Tube(s) | Per Tube | Per unit* |
| 1 - 4 | £283.39 | £11.336 |
| 5 - 9 | £274.89 | £10.996 |
| 10 - 24 | £266.38 | £10.655 |
| 25 - 49 | £257.88 | £10.315 |
| 50 + | £249.38 | £9.975 |
| *price indicative | ||
- RS Stock No.:
- 167-0757
- Mfr. Part No.:
- NMJ0303SAC
- Brand:
- Murata Power Solutions
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Murata 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - NMJ Series
The Murata PS NMJ series are dual and single output DC/DC converters in a 7 pin SIP package style offering pin and functionality compatibility with the NMV series SIP DC/DC converters. The NMJ series is UL60950 recognized and suitable for applications where safety and miniaturisation are very important.
Power density 0.42W/cm3
Wide temperature performance at full 1 watt load, –40C to 60C
Single and dual outputs
UL 94V-0 package material
No heatsink required
Footprint 1.91cm²
SIP package style
5.2k VDC isolation
3V, 5V & 12V input
3V, 5V, 9V, 12V and 15V output
Internal SMD construction
Fully encapsulated with toroidal magnetics
Pin compatible with the NMV series SIP DC/DC converters
MTTF up to 13 million hours
Wide temperature performance at full 1 watt load, –40C to 60C
Single and dual outputs
UL 94V-0 package material
No heatsink required
Footprint 1.91cm²
SIP package style
5.2k VDC isolation
3V, 5V & 12V input
3V, 5V, 9V, 12V and 15V output
Internal SMD construction
Fully encapsulated with toroidal magnetics
Pin compatible with the NMV series SIP DC/DC converters
MTTF up to 13 million hours
Approvals
UL 60950
Murata Power Solutions - SIP
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 3.3V dc |
| Input Voltage Range | 2.97 → 3.63 V dc |
| Power Rating | 1W |
| Input Voltage Nominal | 3.3 V dc |
| Output Current | 300mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | SIP |
| Isolation Voltage | 5.2kV dc |
| Length | 19.5mm |
| Depth | 12.5mm |
| Series | NMJ |
| Minimum Temperature | -40°C |
| Maximum Temperature | +60°C |
