Murata Power Solutions NXE1 DC-DC Converter, 5V dc/ 200mA Output, 4.5 → 5.5 V dc Input, 1W, Surface Mount, +85°C
- RS Stock No.:
- 885-4723
- Mfr. Part No.:
- NXE1S0505MC-R7
- Brand:
- Murata Power Solutions
Bulk discount available
Subtotal (1 unit)*
£2.64
(exc. VAT)
£3.17
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 26 unit(s) ready to ship
- Plus 154 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £2.64 |
| 5 - 9 | £2.54 |
| 10 - 24 | £2.47 |
| 25 - 49 | £2.39 |
| 50 + | £2.32 |
*price indicative
- RS Stock No.:
- 885-4723
- Mfr. Part No.:
- NXE1S0505MC-R7
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata Power Solutions | |
| Output Voltage | 5V dc | |
| Input Voltage Range | 4.5 → 5.5 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 5 V dc | |
| Output Current | 200mA | |
| Mounting Type | Surface Mount | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SMA | |
| Isolation Voltage | 3kV dc | |
| Length | 12.7mm | |
| Width | 10.41mm | |
| Depth | 4.5mm | |
| Series | NXE1 | |
| Load Regulation | 0.1 | |
| Standards Met | ANSI/AAMI ES60601-1 Standard, RoHS Compliant, UL 60950 | |
| Maximum Temperature | +85°C | |
| Efficiency | 66% | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Murata Power Solutions | ||
Output Voltage 5V dc | ||
Input Voltage Range 4.5 → 5.5 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 5 V dc | ||
Output Current 200mA | ||
Mounting Type Surface Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SMA | ||
Isolation Voltage 3kV dc | ||
Length 12.7mm | ||
Width 10.41mm | ||
Depth 4.5mm | ||
Series NXE1 | ||
Load Regulation 0.1 | ||
Standards Met ANSI/AAMI ES60601-1 Standard, RoHS Compliant, UL 60950 | ||
Maximum Temperature +85°C | ||
Efficiency 66% | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- GB

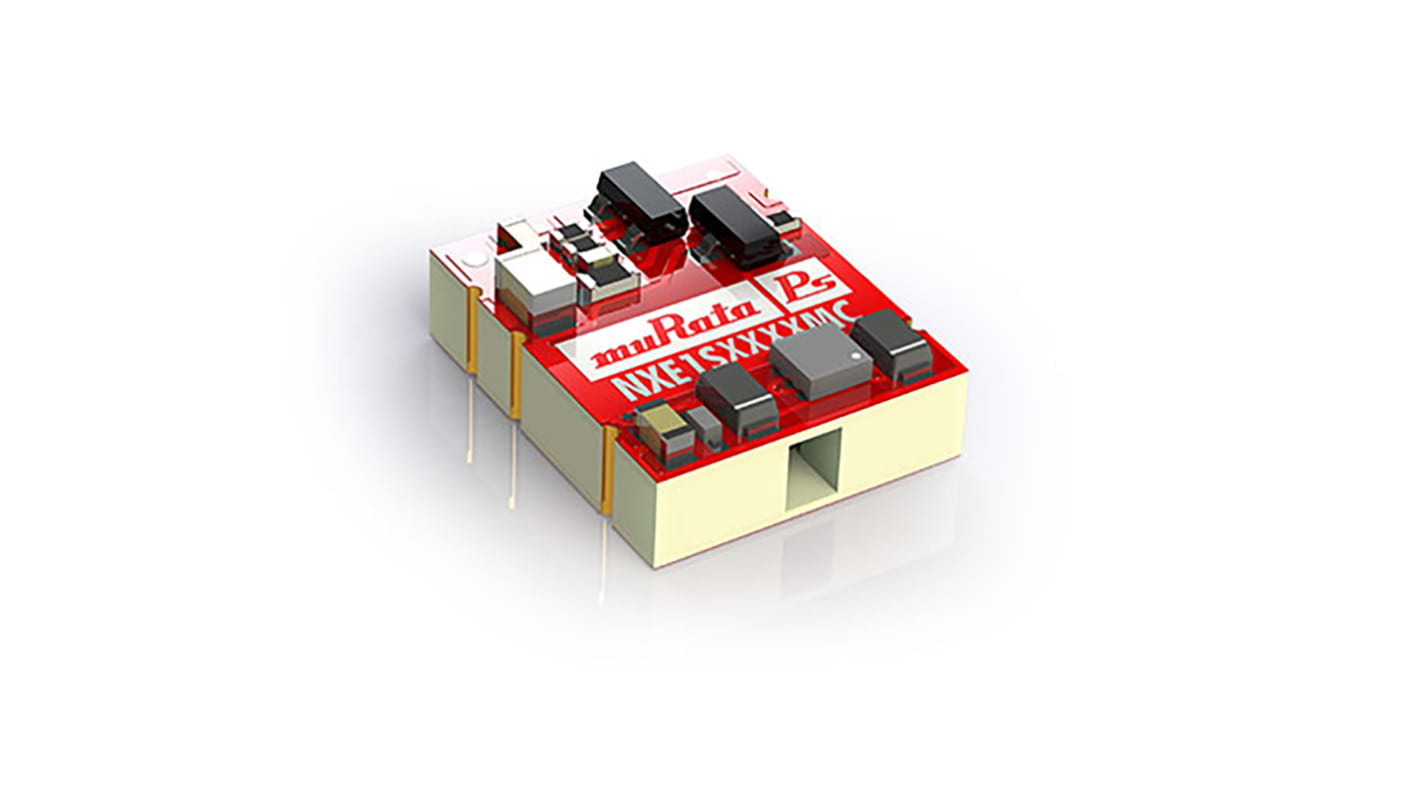

Murata Isolated 1W Single Output DC/DC Converter - NXE1 Series
The Murata NXE1 is a series of low cost 1 Watt DC-DC converters. These ultra-compact surface mount DC-DC converters have a profile over 30% lower than the industry standard of 7mm and a transformer that is embedded in the substrate, making them perfect for use where space is critical. With an industry standard pin compatible footprint the NXE1 series is ideal for a replacement product in existing designs as well as for new compact applications. These isolated DC-DC converters can be used across the full industrial temperature range from -40 to +85 degrees C.
Halogen Free
Patents pending
Lower Profile
3kVDC Isolation “Hi Pot Test”
Substrate Embedded Transformer
Automated Manufacture
Industry Standard Footprint
Short Circuit Protection
Patents pending
Lower Profile
3kVDC Isolation “Hi Pot Test”
Substrate Embedded Transformer
Automated Manufacture
Industry Standard Footprint
Short Circuit Protection
Approvals
UL60950, UL60101 pending
