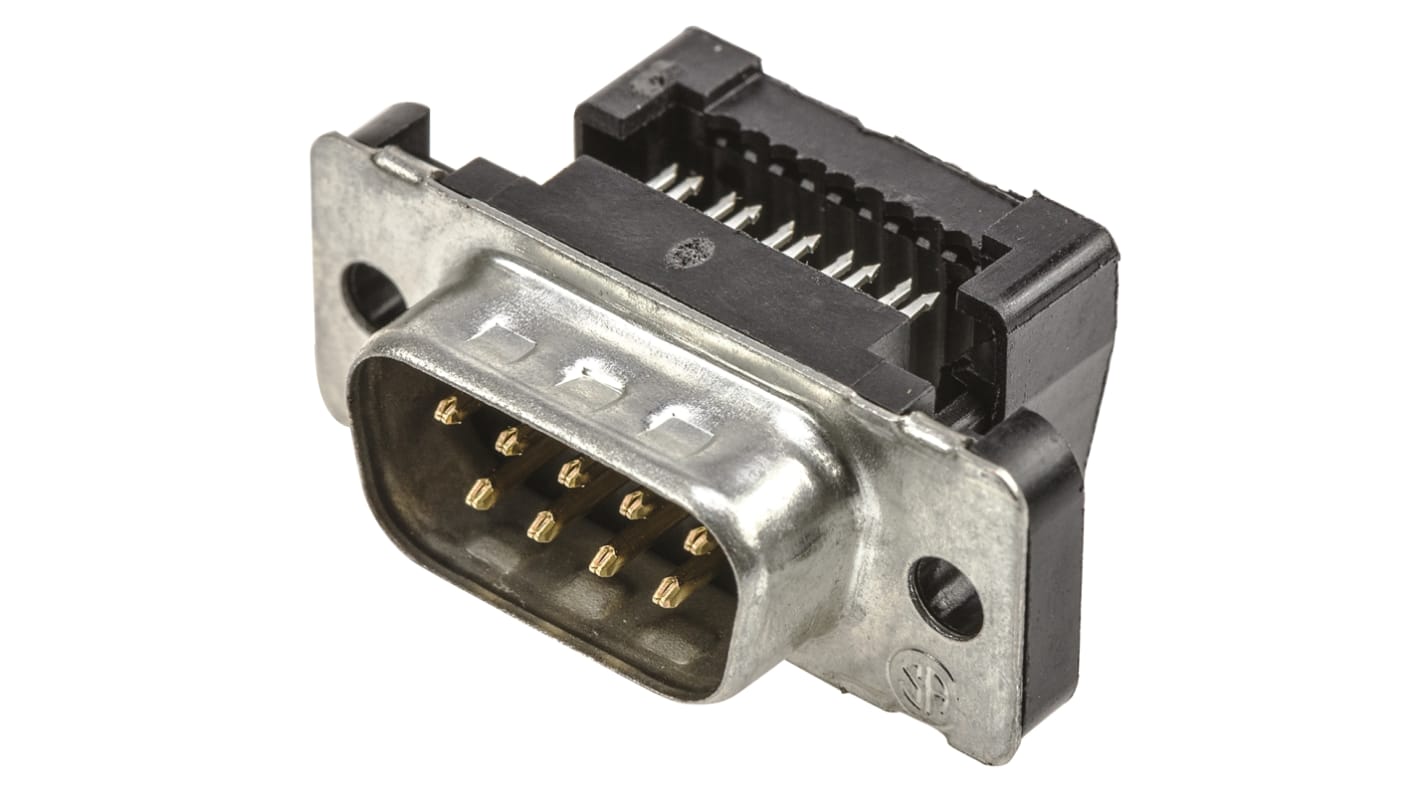

TE Connectivity Amplimite HDF-20 9 Way Right Angle Cable Mount D-sub Connector Plug, 2.76mm Pitch

RS Stock No.:: 409-3292
Mfr. Part No.:: 1658613-4
Brand:: TE Connectivity

TE Connectivity Amplimite HDF-20 9 Way Right Angle Cable Mount D-sub Connector Plug, 2.76mm Pitch

198 In stock - FREE next working day delivery available

156 available from Europe for delivery within 2 working day(s).

Price Each

£6.44

(exc. VAT)

£7.73

(inc. VAT)

Units	Per unit
1 - 24	£6.44
25 - 74	£5.38
75 - 199	£5.13
200 - 399	£4.87
400 +	£4.49

RS Stock No.:: 409-3292
Mfr. Part No.:: 1658613-4
Brand:: TE Connectivity

Technical Reference

Datasheet

Legislation and Compliance

Product Details

AMPLIMITE Series HDF-20 Low Profile IDC Metal Shell D-Sub Connectors

AMPLIMITE HDF-20 series low profile metal shell IDC d-sub connectors for flat ribbon cable. These AMPLIMITE HDF-20 series IDC d-sub ribbon cable connectors have pre-assembled black 94V-0 rated thermoplastic housings and covers with a tin plated steel front shell and are pre-loaded with duplex plated phosphor bronze contacts that accept 28 AWG and 26 AWG solid and stranded round conductor flat ribbon cable on 1.27mm centres.
Part numbers 1658613-x and 1658612-x have standard mounting holes.
Part numbers 1658608-x, 1658610-x, 1658607-1 and 1658606-1 have brass 4-40 threaded inserts.
These AMPLIMITE HDF-20 series d-sub ribbon cable connectors mate with HD-20 Board Mount, HDP and HDE (sizes 1-4 only) d-sub connectors.
For optional strain relief see stock numbers 409-3387 and 409-3422 typically.
For screwlocks and screws see stock number 680-9358, 717-4473 and 680-9351 typically.

Low profile black metal body cable mounting
IDC D plugs and socket connectors
Use assembly tool stock no. 301-8177 and plug and socket die sets stock no.s 409-3438, 409-3444
See also accessories, typically stock no. 450-9258

Note

Stock number 798-1515 (9 way socket connector) has #4-40 locking fasteners colour-coded Blue.

D Type & Accessories - TE Connectivity

Specifications

Attribute	Value
Number of Contacts	9
Gender	Male
Body Orientation	Right Angle
Mounting Type	Cable Mount
Pitch	2.76mm
Termination Method	IDC
Current Rating	1.25A
Housing Material	Steel
Voltage Rating	30.0 V
Length	30.88mm
Width	18.57mm
Depth	12.59mm
Series	Amplimite HDF-20
Contact Material	Phosphor Bronze
Contact Plating	Gold over Nickel
Dimensions	30.88 x 18.57 x 12.59mm
Maximum Operating Temperature	+105°C
Minimum Operating Temperature	-55.0°C
