EDAC 516 56 Way Straight D-Sub Connector Female
- RS Stock No.:
- 476-441
- Mfr. Part No.:
- 516-056-000-402
- Brand:
- EDAC
Bulk discount available
Subtotal (1 unit)*
£9.09
(exc. VAT)
£10.91
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 85 unit(s) shipping from 26 January 2026
- Plus 33 unit(s) shipping from 26 January 2026
- Plus 70 unit(s) shipping from 09 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £9.09 |
| 5 - 9 | £8.64 |
| 10 - 24 | £8.20 |
| 25 + | £7.74 |
*price indicative
- RS Stock No.:
- 476-441
- Mfr. Part No.:
- 516-056-000-402
- Brand:
- EDAC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EDAC | |
| Number of Contacts | 56 | |
| Product Type | D-Sub Connector | |
| Current | 8.5A | |
| Orientation | Straight | |
| Connector Gender | Female | |
| Voltage | 2000 Vrms | |
| Termination Type | Crimp | |
| Minimum Operating Temperature | -65°C | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Contact Material | Phosphor Bronze | |
| Series | 516 | |
| Contact Plating | Gold | |
| Select all | ||
|---|---|---|
Brand EDAC | ||
Number of Contacts 56 | ||
Product Type D-Sub Connector | ||
Current 8.5A | ||
Orientation Straight | ||
Connector Gender Female | ||
Voltage 2000 Vrms | ||
Termination Type Crimp | ||
Minimum Operating Temperature -65°C | ||
Contact Gender Female | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Contact Material Phosphor Bronze | ||
Series 516 | ||
Contact Plating Gold | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN

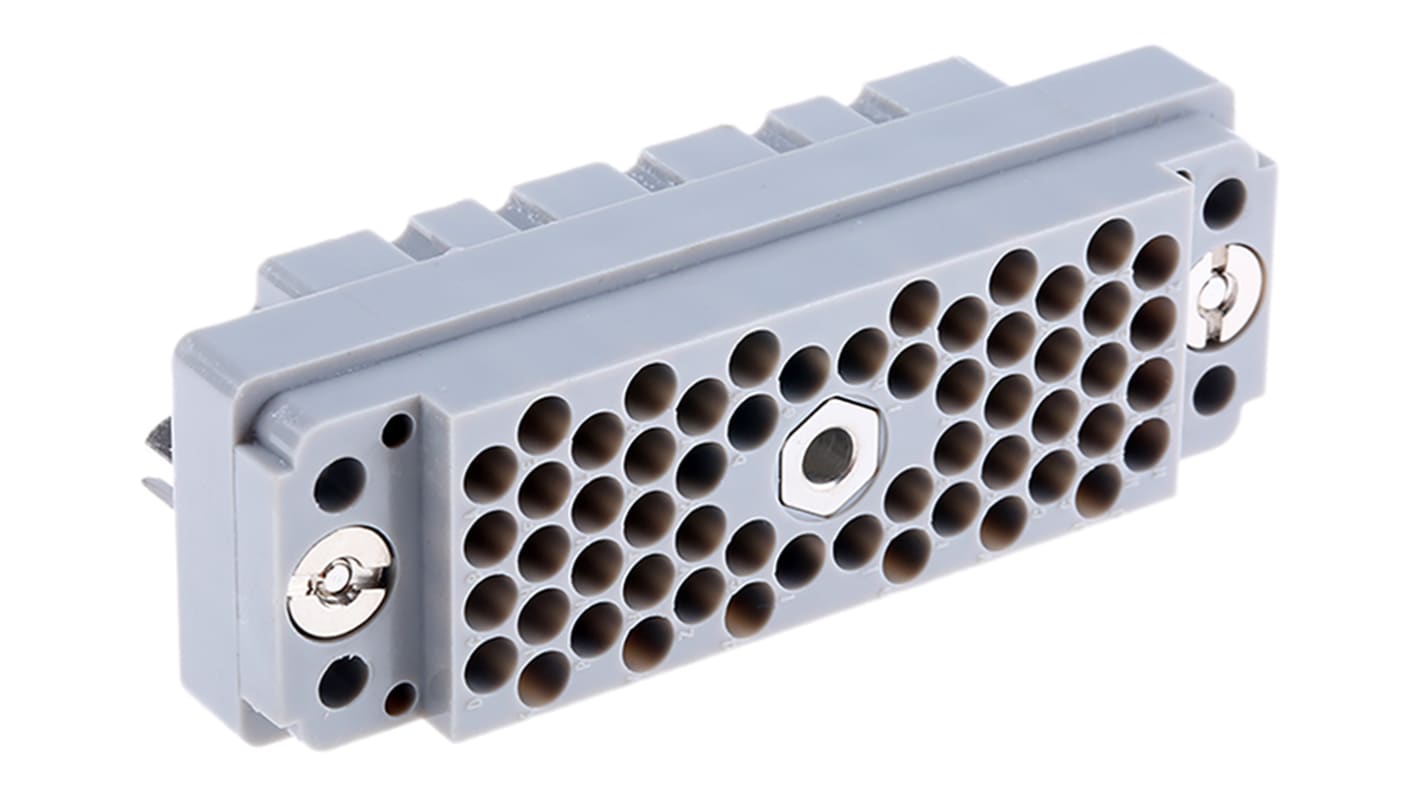

Rack and Panel Receptacle Connector Housing
From EDAC, the cable mounting rack and panel connector housing incorporates an actuating screw to facilitate connection with a corresponding connector.
Crimp, solder and wire wrap contacts are available for this connector housing, and are sold separately.
EDAC 516 Range
This extensive range of 8.5A multipole connectors is suitable for use in a wide range of applications where safety and/or ultra-reliability is required. These include audio broadcast, railway signalling, oil and gas industry control systems together with general industrial and automotive control & test systems. These connectors are suitable wherever a multi-pin cable to panel or cable to cable connection is required. The plugs or receptacles of this high density system can form either the fixed or free half of the connector, providing designers with great flexibility.
Guaranteed secure connection
Hermaphroditic metal to metal contact design
Polarized mouldings and metal locators
Crimp, solder or wire wrap contacts
Contacts fit plug and socket
