EDAC 516 120 Way D-sub Connector Socket
- RS Stock No.:
- 410-444
- Distrelec Article No.:
- 300-34-851
- Mfr. Part No.:
- 516-120-000-402
- Brand:
- EDAC
Bulk discount available
Subtotal (1 unit)*
£23.94
(exc. VAT)
£28.73
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 66 unit(s) ready to ship
- Plus 21 unit(s) ready to ship from another location
- Plus 39 unit(s) shipping from 18 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | £23.94 |
| 15 - 49 | £21.52 |
| 50 - 99 | £19.39 |
| 100 + | £17.45 |
*price indicative
- RS Stock No.:
- 410-444
- Distrelec Article No.:
- 300-34-851
- Mfr. Part No.:
- 516-120-000-402
- Brand:
- EDAC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EDAC | |
| Number of Contacts | 120 | |
| Gender | Female | |
| Body Orientation | Straight | |
| Current Rating | 8.5A | |
| Length | 69.85mm | |
| Width | 38.74mm | |
| Depth | 106.55mm | |
| Contact Plating | Gold | |
| Series | 516 | |
| Contact Material | Phosphor Bronze | |
| Dimensions | 69.85 x 38.74 x 106.55mm | |
| Minimum Operating Temperature | -65°C | |
| Maximum Operating Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand EDAC | ||
Number of Contacts 120 | ||
Gender Female | ||
Body Orientation Straight | ||
Current Rating 8.5A | ||
Length 69.85mm | ||
Width 38.74mm | ||
Depth 106.55mm | ||
Contact Plating Gold | ||
Series 516 | ||
Contact Material Phosphor Bronze | ||
Dimensions 69.85 x 38.74 x 106.55mm | ||
Minimum Operating Temperature -65°C | ||
Maximum Operating Temperature +105°C | ||

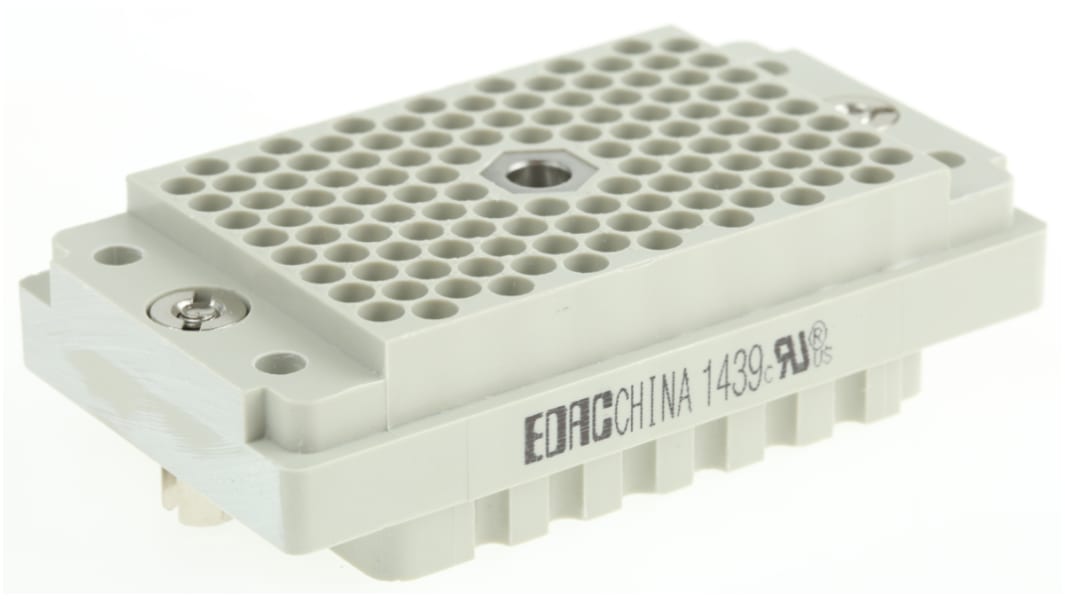

EDAC Heavy Duty Power Connector Socket
The EDAC 516 series rectangular connector socket has crimp pin termination type. This female socket is suitable for applications where safety and high reliability are required. It has a hermaphroditic metal-to-metal contact design. The sockets or receptacles of this high-density system can form either the fixed or free half of the connector, providing designers with great flexibility. It has 120 contacts, which are made of phosphor bronze. These include audio broadcast, railway signalling, oil and gas industry control systems together with general industrial and automotive control and test systems. The hosing is made from a plastic material. Crimp, solder and wire wrap contacts are available for this connector housing and are sold separately.
Features and Benefits
Contacts fit plug and socket
Current rating is 8.5A
Insulating resistance is 500mOhm
Operating temperature ranges between -65°C and 105°C
Secure connection guaranteed
Current rating is 8.5A
Insulating resistance is 500mOhm
Operating temperature ranges between -65°C and 105°C
Secure connection guaranteed
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
UL rated
BS EN 61340-5-1:2007
UL rated
