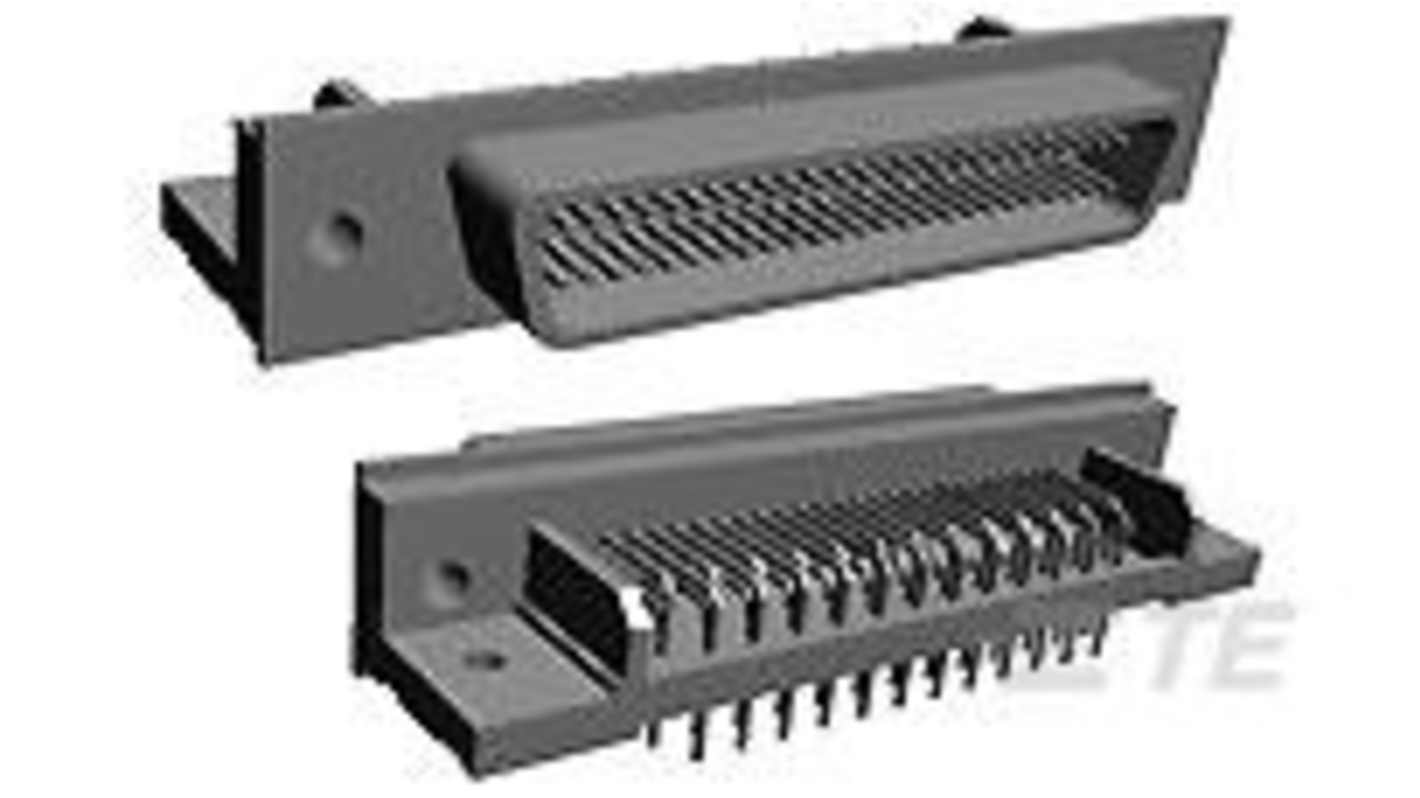

TE Connectivity 74908 100 Way Right Angle 1.27 mm Pitch Board D-Sub Connector, with 4 to 40 UNC Male
- RS Stock No.:
- 470-098
- Distrelec Article No.:
- 304-50-079
- Mfr. Part No.:
- 749084-9
- Brand:
- TE Connectivity
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 470-098
- Distrelec Article No.:
- 304-50-079
- Mfr. Part No.:
- 749084-9
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 100 | |
| Product Type | D-Sub Connector | |
| Orientation | Right Angle | |
| Current | 1A | |
| Mount Type | Board | |
| Connector Gender | Male | |
| Connector Type D | Plug | |
| Mounting Hardware | 4 to 40 UNC | |
| Housing Material | Polyester | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 105°C | |
| Contact Gender | Male | |
| Standards/Approvals | UL 94 V-0 | |
| Contact Plating | Gold Flash over Nickel | |
| Series | 74908 | |
| Contact Material | Phosphor Bronze | |
| Pitch | 1.27mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 100 | ||
Product Type D-Sub Connector | ||
Orientation Right Angle | ||
Current 1A | ||
Mount Type Board | ||
Connector Gender Male | ||
Connector Type D Plug | ||
Mounting Hardware 4 to 40 UNC | ||
Housing Material Polyester | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 105°C | ||
Contact Gender Male | ||
Standards/Approvals UL 94 V-0 | ||
Contact Plating Gold Flash over Nickel | ||
Series 74908 | ||
Contact Material Phosphor Bronze | ||
Pitch 1.27mm | ||
Non Compliant
- COO (Country of Origin):
- MX
The TE Connectivity D-Sub Connector, designed for cable-to-board applications, excels in performance and versatility. With a robust construction featuring a full metal shell and standard profile, this connector ensures reliable signal transmission. It accommodates up to 100 positions, making it ideal for complex circuit configurations, and its right-angle PCB mount orientation optimises space in tight layouts. Loaded with features like shielded contacts and a nickel over copper bracket plating, it is engineered for durability across various environments. Whether you're in automotive, industrial, or telecommunications settings, this connector demonstrates superior functionality, catering to a wide array of applications.
Engineered with a full metal shell for enhanced durability
Right-angle orientation allows for efficient space utilisation
Features 100 positions for intricate circuit designs
Protective shielding minimises signal interference
Compatible with standard PCB mounting practices
Robust bracket material ensures a secure connection
Temperature range of -55 to 105 °C accommodates diverse applications
Available in black housing for a professional appearance
