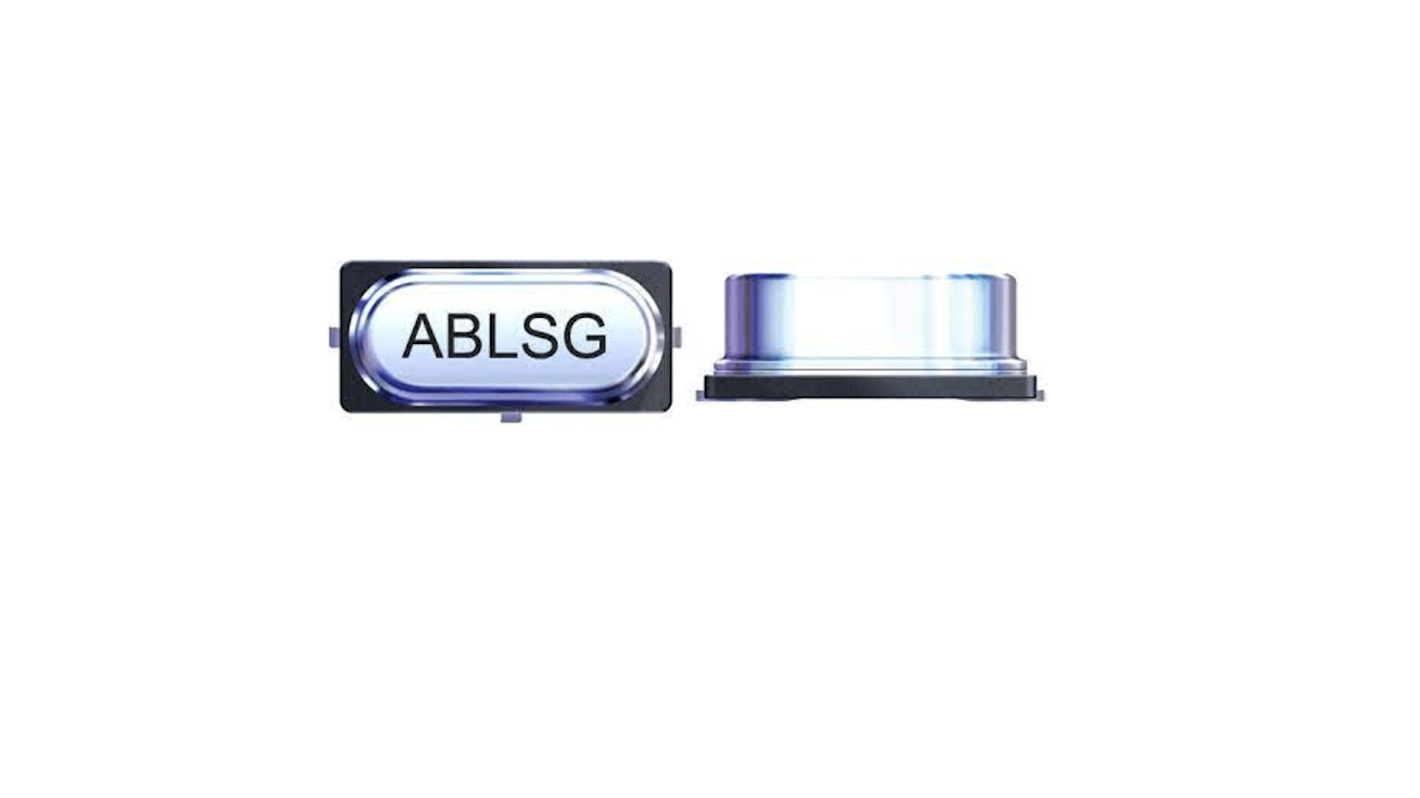

Abracon 12 MHz Crystal ±50 ppm ABLSG 3-Pin 4.2 mm 11.4 mm 4.7mm
- RS Stock No.:
- 240-3392
- Mfr. Part No.:
- ABLSG-12.000MHZ-D2Y-T
- Brand:
- Abracon
Bulk discount available
Subtotal (1 pack of 25 units)*
£6.275
(exc. VAT)
£7.525
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 525 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 25 | £0.251 | £6.28 |
| 50 - 75 | £0.246 | £6.15 |
| 100 - 225 | £0.242 | £6.05 |
| 250 - 475 | £0.236 | £5.90 |
| 500 + | £0.232 | £5.80 |
*price indicative
- RS Stock No.:
- 240-3392
- Mfr. Part No.:
- ABLSG-12.000MHZ-D2Y-T
- Brand:
- Abracon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Abracon | |
| Product Type | Crystal | |
| Standard Frequency | 12MHz | |
| Mount Type | Surface Mount | |
| Load Capacitance | 18pF | |
| Packaging | Tape & Reel | |
| Package Type | ABLSG | |
| Pin Count | 3 | |
| Length | 11.4mm | |
| Width | 4.7mm | |
| Height | 4.2mm | |
| Frequency Tolerance | ±50 ppm | |
| Minimum Operating Temperature | 0°C | |
| Frequency Stability | ±50 ppm | |
| Maximum Operating Temperature | 70°C | |
| Series Resistance | 50Ω | |
| Standards/Approvals | RoHS | |
| Series | ABLSG | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Abracon | ||
Product Type Crystal | ||
Standard Frequency 12MHz | ||
Mount Type Surface Mount | ||
Load Capacitance 18pF | ||
Packaging Tape & Reel | ||
Package Type ABLSG | ||
Pin Count 3 | ||
Length 11.4mm | ||
Width 4.7mm | ||
Height 4.2mm | ||
Frequency Tolerance ±50 ppm | ||
Minimum Operating Temperature 0°C | ||
Frequency Stability ±50 ppm | ||
Maximum Operating Temperature 70°C | ||
Series Resistance 50Ω | ||
Standards/Approvals RoHS | ||
Series ABLSG | ||
Automotive Standard No | ||
The Abracon ABLSG series is SMD low profile crystal have one of the three leads is grounded. This crystals are ideal for EMI sensitive applications, and also can be used in computers, modems, microprocessors etc.
3rd Lead is Grounded
IR re-flow capable
Low height reduced to 4.2mm
Tight stability & extended temperature available
RoHS compliant
