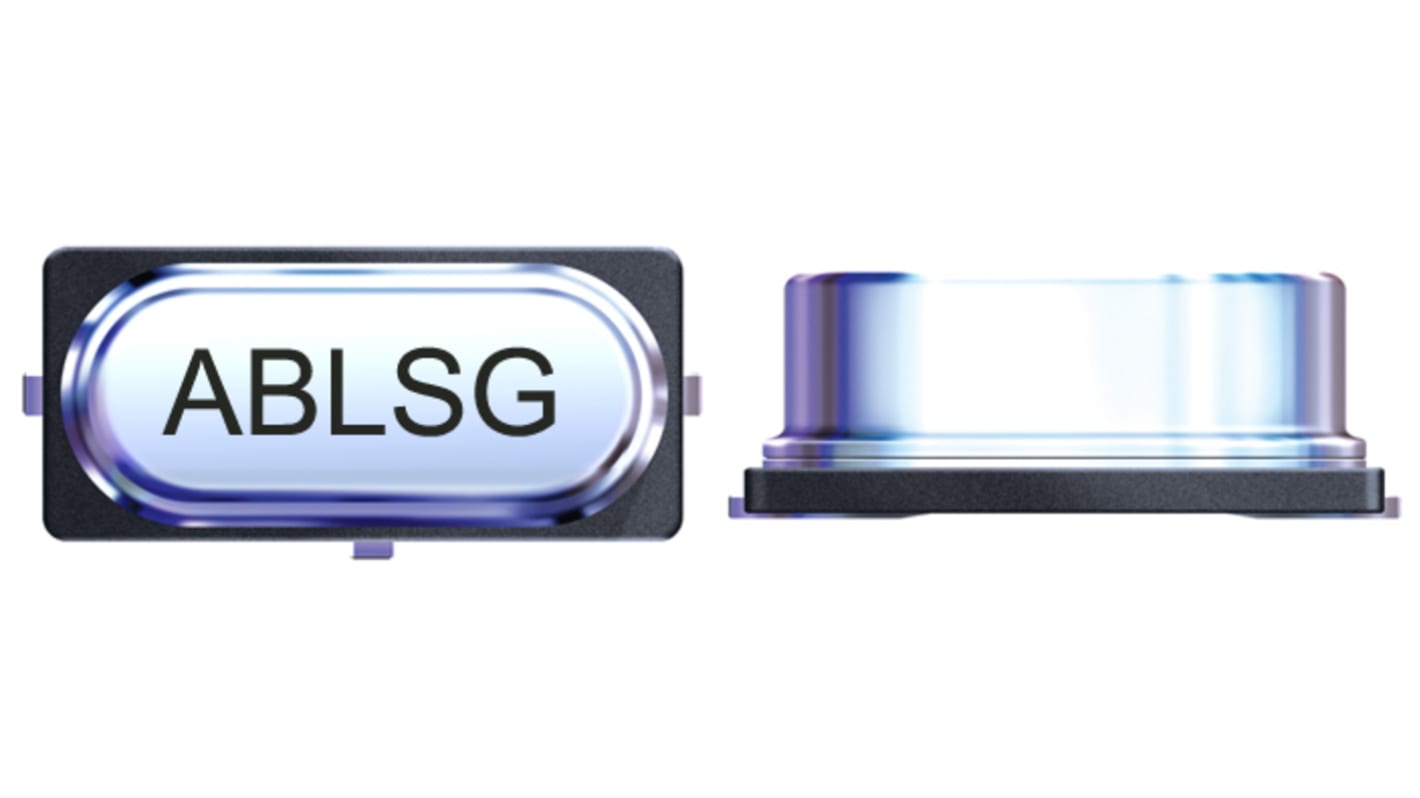

Abracon 3.6864 MHz Crystal 20 ppm Surface Mount 4.2 mm 11.4 mm 4.7mm
- RS Stock No.:
- 232-7236
- Mfr. Part No.:
- ABLSG-3.6864MHZ-D2Y-T
- Brand:
- Abracon
Bulk discount available
Subtotal (1 pack of 25 units)*
£7.20
(exc. VAT)
£8.65
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 300 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 25 | £0.288 | £7.20 |
| 50 - 75 | £0.258 | £6.45 |
| 100 - 225 | £0.23 | £5.75 |
| 250 - 475 | £0.226 | £5.65 |
| 500 + | £0.219 | £5.48 |
*price indicative
- RS Stock No.:
- 232-7236
- Mfr. Part No.:
- ABLSG-3.6864MHZ-D2Y-T
- Brand:
- Abracon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Abracon | |
| Standard Frequency | 3.6864MHz | |
| Product Type | Crystal | |
| Mount Type | Surface | |
| Load Capacitance | 18pF | |
| Packaging | Tape & Reel | |
| Package Type | Surface Mount | |
| Length | 11.4mm | |
| Width | 4.7mm | |
| Height | 4.2mm | |
| Frequency Tolerance | 20 ppm | |
| Frequency Stability | ±30 ppm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Series Resistance | 180Ω | |
| Standards/Approvals | RoHS | |
| Series | ABLSG | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Abracon | ||
Standard Frequency 3.6864MHz | ||
Product Type Crystal | ||
Mount Type Surface | ||
Load Capacitance 18pF | ||
Packaging Tape & Reel | ||
Package Type Surface Mount | ||
Length 11.4mm | ||
Width 4.7mm | ||
Height 4.2mm | ||
Frequency Tolerance 20 ppm | ||
Frequency Stability ±30 ppm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Series Resistance 180Ω | ||
Standards/Approvals RoHS | ||
Series ABLSG | ||
Automotive Standard No | ||
The Abracon lead case- grounded SMD low profile crystal has frequency 3.6864. Crystals have highly accurate frequency, tight tolerance and long-term stability.
3rd Lead is Grounded, Ideal for
EMI Sensitive Applications
Low height reduced to 4.2mm
Tight stability & extended temperature available
