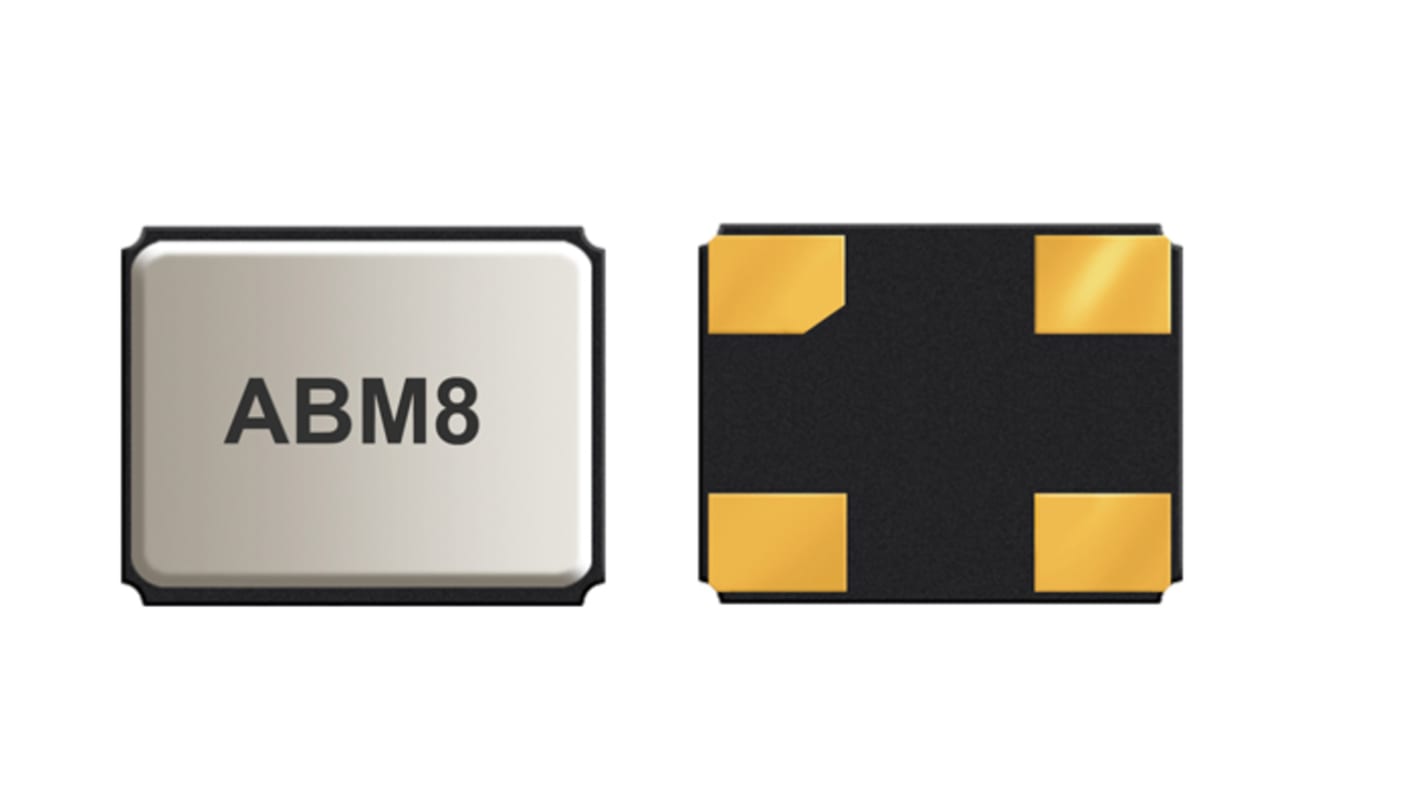

Abracon 26MHz Crystal Unit ±10ppm SMD 4-Pin 3.2 x 2.5 x 0.8mm
- RS Stock No.:
- 171-2762
- Mfr. Part No.:
- ABM8-26.000MHZ-10-1-U-T
- Brand:
- Abracon
Available to back order for despatch when stock is available
Added
Price Each (In a Pack of 5)
£0.576
(exc. VAT)
£0.691
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 45 | £0.576 | £2.88 |
| 50 - 95 | £0.48 | £2.40 |
| 100 - 245 | £0.442 | £2.21 |
| 250 - 495 | £0.432 | £2.16 |
| 500 + | £0.422 | £2.11 |
| *price indicative | ||
- RS Stock No.:
- 171-2762
- Mfr. Part No.:
- ABM8-26.000MHZ-10-1-U-T
- Brand:
- Abracon
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Low in height, suitable for thin equipment, 0.8mm max
Seam sealed package assures high reliability
Tight tolerance and stability available
Available for fundamental and 3rd over tone mode
High density applications
Modems, communication and test equipment
PMCIA, Wireless applications
Seam sealed package assures high reliability
Tight tolerance and stability available
Available for fundamental and 3rd over tone mode
High density applications
Modems, communication and test equipment
PMCIA, Wireless applications
Specifications
Attribute | Value |
|---|---|
| Standard Frequency | 26MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 18pF |
| Package Type | SMD |
| Pin Count | 4 |
| Length | 3.2mm |
| Width | 2.5mm |
| Height | 0.8mm |
| Dimensions | 3.2 x 2.5 x 0.8mm |
| Frequency Tolerance | ±10ppm |
| Frequency Stability | ±10ppm |
| Series Resistance | 50Ω |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
- RS Stock No.:
- 171-2762
- Mfr. Part No.:
- ABM8-26.000MHZ-10-1-U-T
- Brand:
- Abracon
