Schneider Electric ClimaSys Series Enclosure Cooling Unit, 3200W, 1200 m³/h 230 V ac 13 mm 490 mm 250 mm
- RS Stock No.:
- 285-5409
- Mfr. Part No.:
- NSYCU3K2DG
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£4,181.98
(exc. VAT)
£5,018.38
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £4,181.98 |
*price indicative
- RS Stock No.:
- 285-5409
- Mfr. Part No.:
- NSYCU3K2DG
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Maximum Cooling Power | 3200W | |
| Product Type | Enclosure Cooling Unit | |
| Air Flow | 1200m³/h | |
| Noise Level | 72dB | |
| Mount Type | Side | |
| Input Power | 3200W | |
| Connection Type | Screw | |
| Power Consumption | 1400W | |
| Maximum Supply Voltage | 230V ac | |
| IP Rating | IP55, IP24 | |
| Material | Steel | |
| Certification | UL | |
| Type of installation | Indoor | |
| Maximum Temperature Setting | 55°C | |
| Min Temperature Setting | 20°C | |
| Weight | 59.6kg | |
| Standards/Approvals | EN 14511, EN/ISO 12100, EN 61000-6-2, EN/IEC 63000:2018, EN 61000-3-2, EN 61000-6-3, EN 60335-2-40, EN 61000-3-3, EN 60335-1 | |
| Width | 490 mm | |
| Height | 13mm | |
| Depth | 250mm | |
| Series | ClimaSys | |
| Cooler Type | Cooling Unit | |
| Cooling Capacity | 3200W | |
| Frequency | 60Hz | |
| Refrigerant Type | R134A | |
| Nominal Current | 9A | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Maximum Cooling Power 3200W | ||
Product Type Enclosure Cooling Unit | ||
Air Flow 1200m³/h | ||
Noise Level 72dB | ||
Mount Type Side | ||
Input Power 3200W | ||
Connection Type Screw | ||
Power Consumption 1400W | ||
Maximum Supply Voltage 230V ac | ||
IP Rating IP55, IP24 | ||
Material Steel | ||
Certification UL | ||
Type of installation Indoor | ||
Maximum Temperature Setting 55°C | ||
Min Temperature Setting 20°C | ||
Weight 59.6kg | ||
Standards/Approvals EN 14511, EN/ISO 12100, EN 61000-6-2, EN/IEC 63000:2018, EN 61000-3-2, EN 61000-6-3, EN 60335-2-40, EN 61000-3-3, EN 60335-1 | ||
Width 490 mm | ||
Height 13mm | ||
Depth 250mm | ||
Series ClimaSys | ||
Cooler Type Cooling Unit | ||
Cooling Capacity 3200W | ||
Frequency 60Hz | ||
Refrigerant Type R134A | ||
Nominal Current 9A | ||
RoHS Status: Exempt
- COO (Country of Origin):
- MT

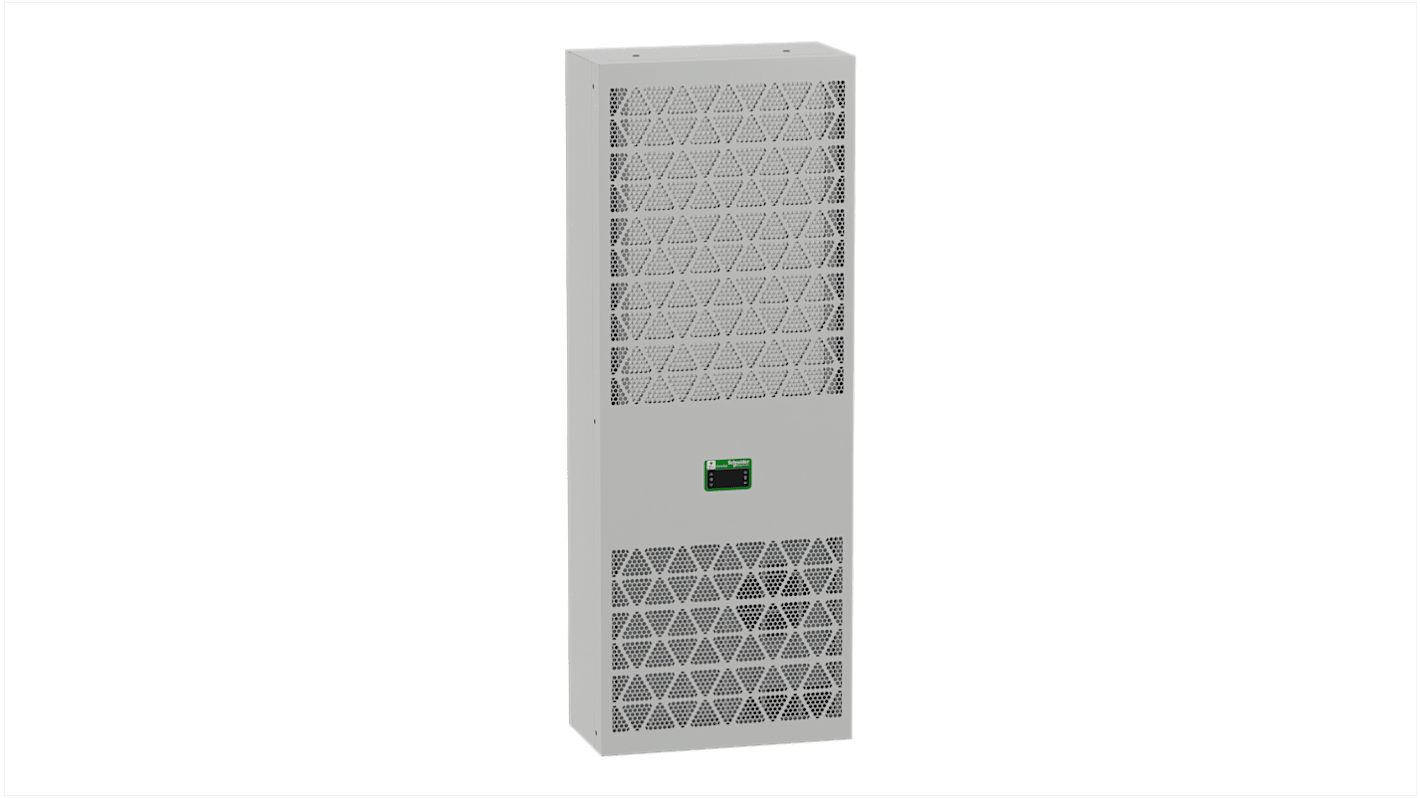

The Schneider Electric Climasys CU cooling unit is a high-performance solution designed for indoor side mounting in enclosures. With a rated power of 3200W and cooling power of 3200W, it ensures efficient temperature control for your equipment. The unit features a compact design with dimensions of 1300mm height, 490mm width, and 250mm depth, making it suitable for various applications.
Cooling Gas Type R134a for efficient cooling performance
Noise Level 72 dB for quiet operation
Circuit breaker and thermal protection for safety
32 bar pressure for proper cooling
