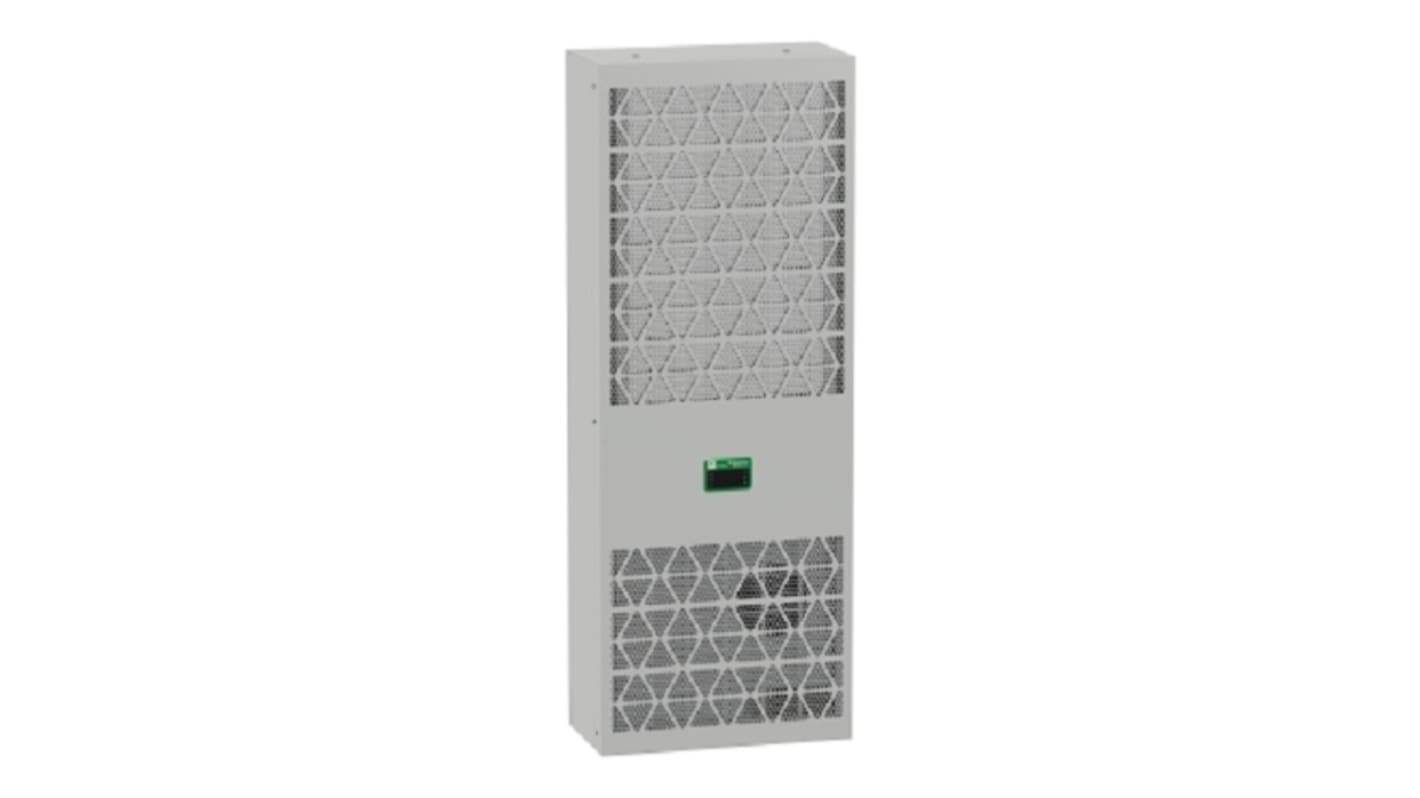

Schneider Electric ClimaSys Series Enclosure Cooling Unit, 4000W, 1200 m³/h 460 V ac 250 mm
- RS Stock No.:
- 285-5411
- Mfr. Part No.:
- NSYCU4K3P4DG
- Brand:
- Schneider Electric
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 285-5411
- Mfr. Part No.:
- NSYCU4K3P4DG
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Enclosure Cooling Unit | |
| Maximum Cooling Power | 4000W | |
| Air Flow | 1200m³/h | |
| Noise Level | 72dB | |
| Input Power | 4000W | |
| Mount Type | Side | |
| Power Consumption | 1700W | |
| IP Rating | IP24, IP55 | |
| Maximum Supply Voltage | 460V ac | |
| Material | Steel | |
| Certification | UL | |
| Min Temperature Setting | 20°C | |
| Maximum Temperature Setting | 55°C | |
| Type of installation | Indoor | |
| Series | ClimaSys | |
| Standards/Approvals | EN 61000-3-2, EN 14511, EN 61000-6-2, EN/IEC 63000:2018, EN 61000-3-3, EN 60335-1, EN 60335-2-40, EN/ISO 12100, EN 61000-6-3 | |
| Weight | 62.2kg | |
| Depth | 250mm | |
| Cooler Type | Side | |
| Cooling Capacity | 4000W | |
| Frequency | 60Hz | |
| Nominal Current | 5A | |
| Refrigerant Type | R134A | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Enclosure Cooling Unit | ||
Maximum Cooling Power 4000W | ||
Air Flow 1200m³/h | ||
Noise Level 72dB | ||
Input Power 4000W | ||
Mount Type Side | ||
Power Consumption 1700W | ||
IP Rating IP24, IP55 | ||
Maximum Supply Voltage 460V ac | ||
Material Steel | ||
Certification UL | ||
Min Temperature Setting 20°C | ||
Maximum Temperature Setting 55°C | ||
Type of installation Indoor | ||
Series ClimaSys | ||
Standards/Approvals EN 61000-3-2, EN 14511, EN 61000-6-2, EN/IEC 63000:2018, EN 61000-3-3, EN 60335-1, EN 60335-2-40, EN/ISO 12100, EN 61000-6-3 | ||
Weight 62.2kg | ||
Depth 250mm | ||
Cooler Type Side | ||
Cooling Capacity 4000W | ||
Frequency 60Hz | ||
Nominal Current 5A | ||
Refrigerant Type R134A | ||
RoHS Status: Exempt
- COO (Country of Origin):
- MT
The Schneider Electric side connected cooling unit from ClimaSys is designed to provide efficient cooling for enclosures, ensuring optimal performance of electronic components. With a power consumption of up to 4000W, this unit offers reliable cooling in various environments, making it a valuable addition to any setup.
Side connected cooling unit for enclosures
4000W power consumption for efficient cooling
Electronic controller for precise temperature control
IP55 protection for durability and reliability
Energy efficiency ratio of 2.4 for cost-effective operation
Compact design with dimensions of 1300mm x 490mm x 250mm
