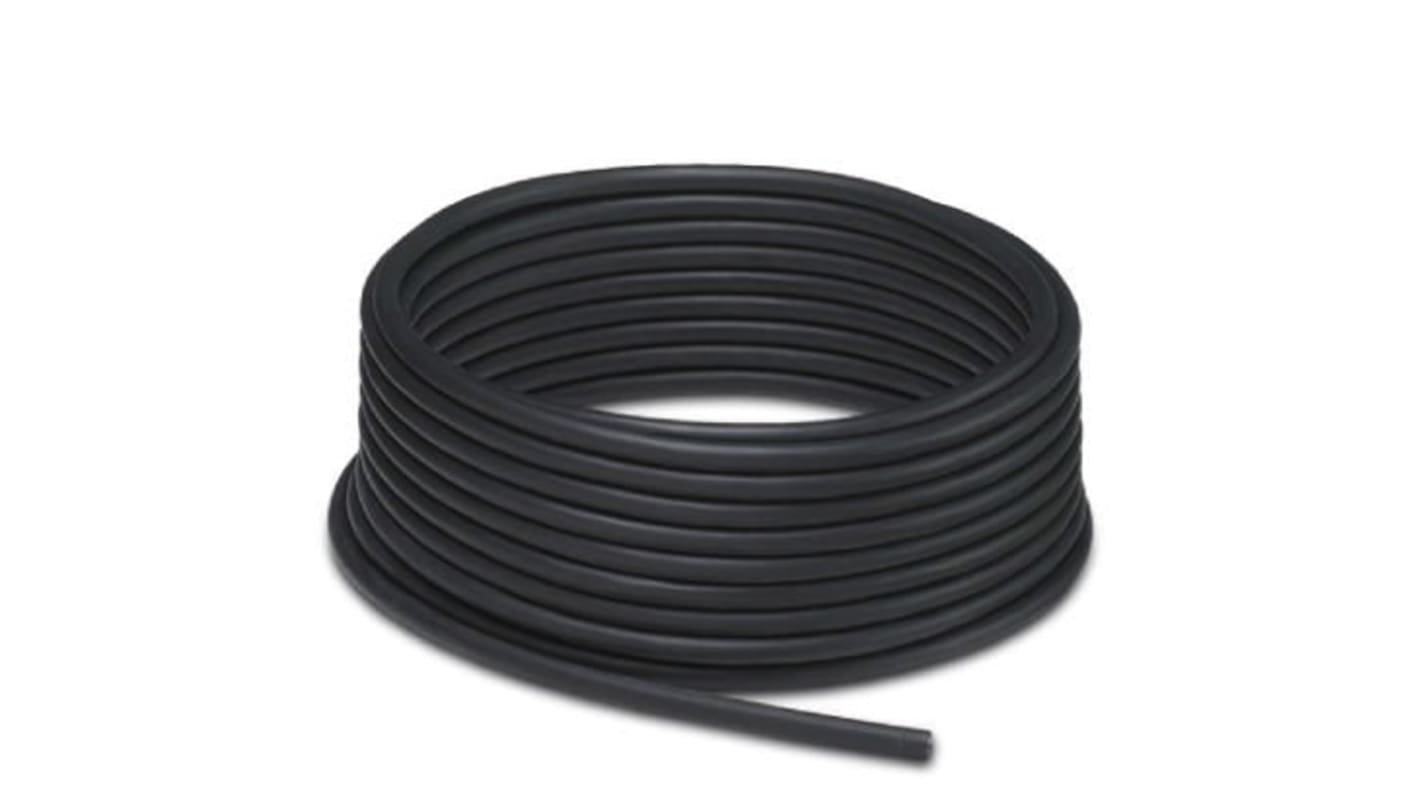

Phoenix Contact SAC-4P-100.0-PVC/0.34 Data Cable, 4 Cores, 0.34 mm², 100m, Black PVC Sheath, 22 AWG
- RS Stock No.:
- 853-0972
- Mfr. Part No.:
- 1501838
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£137.41
(exc. VAT)
£164.89
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £137.41 |
*price indicative
- RS Stock No.:
- 853-0972
- Mfr. Part No.:
- 1501838
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Series | SAC-4P-100.0-PVC/0.34 | |
Number of Cores | 4 | |
Cross Sectional Area | 0.34 mm² | |
American Wire Gauge | 22 AWG | |
Conductor Material | Copper | |
Sheath Material | PVC | |
Sheath Colour | Black | |
Length | 100m | |
Outer Diameter | 5.2mm | |
Minimum Bend Radius | 5 x D (Fixed), 10 x D (Flexible) | |
Voltage Rating | 300 V | |
Standards Met | EAC | |
Maximum Operating Temperature | +80°C | |
Fire Behaviour | Flame Retardant | |
Insulation Material | PVC | |
Oil Resistant | Yes | |
Minimum Operating Temperature | -40°C | |
Conductor Resistance | 58 O/km | |
Cable Shape | Twisted Pair | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Series SAC-4P-100.0-PVC/0.34 | ||
Number of Cores 4 | ||
Cross Sectional Area 0.34 mm² | ||
American Wire Gauge 22 AWG | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Sheath Colour Black | ||
Length 100m | ||
Outer Diameter 5.2mm | ||
Minimum Bend Radius 5 x D (Fixed), 10 x D (Flexible) | ||
Voltage Rating 300 V | ||
Standards Met EAC | ||
Maximum Operating Temperature +80°C | ||
Fire Behaviour Flame Retardant | ||
Insulation Material PVC | ||
Oil Resistant Yes | ||
Minimum Operating Temperature -40°C | ||
Conductor Resistance 58 O/km | ||
Cable Shape Twisted Pair | ||
- COO (Country of Origin):
- DE
Phoenix Contact 4-Core Actuator/Sensor Cable, PVC Sheath, 0.34 mm² - SAC-4P-100,0-PVC/0,34 - 1501838
Establish secure connections between sensors and actuators with this robust cable from Phoenix Contact. Thanks to its durable polyvinyl chloride (PVC) sheath, this cable has reliable corrosion and wear resistance, so you can use it in tough conditions. Its core consists of four wires twisted together to prevent electrostatic interference, meaning you'll get noiseless electrical signal transmission.
As it's supplied in an ample length of 100m, there's enough cable for multiple connections. It's also simple to cut down to size to suit your application. The cable conductor is made of copper material for high conductivity, giving you seamless signal transmission and reliable performance. It's also flexible, so you can bend this cable to fit your workplace design specifications. This cable is oil-resistant, making it a good choice for use in industrial environments such as factories and production assembly lines.
As it's supplied in an ample length of 100m, there's enough cable for multiple connections. It's also simple to cut down to size to suit your application. The cable conductor is made of copper material for high conductivity, giving you seamless signal transmission and reliable performance. It's also flexible, so you can bend this cable to fit your workplace design specifications. This cable is oil-resistant, making it a good choice for use in industrial environments such as factories and production assembly lines.
Features & Benefits
• High voltage rating of 300V for heavy-duty industrial applications
• Broad operating temperature range of -40°C to +80°C to withstand use in harsh environments
• UL94 V-0 (Underwriters' Laboratories) flammability rating for fire resistance and enhanced safety
• Broad operating temperature range of -40°C to +80°C to withstand use in harsh environments
• UL94 V-0 (Underwriters' Laboratories) flammability rating for fire resistance and enhanced safety
