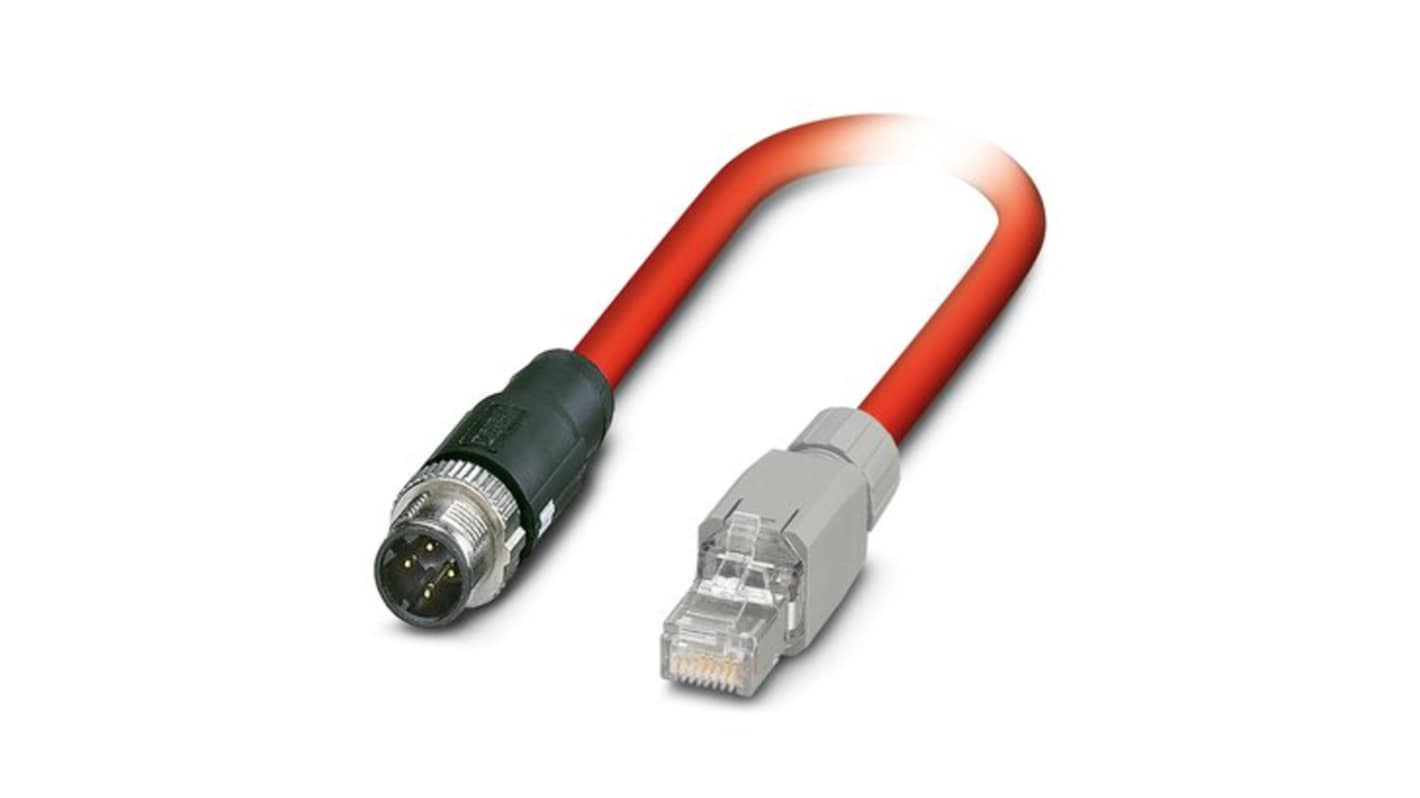

Phoenix Contact SAC Bus Cable, 2 Cores, 0.34 mm² 22 AWG, Screened, 2 m, Red Polyvinyl Chloride Sheath
- RS Stock No.:
- 270-566
- Mfr. Part No.:
- 1419168
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£41.62
(exc. VAT)
£49.94
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £41.62 |
*price indicative
- RS Stock No.:
- 270-566
- Mfr. Part No.:
- 1419168
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Bus Cable | |
| Series | SAC | |
| Number of Cores | 2 | |
| Conductor Material | Tin Plated Copper | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Red | |
| Screened/Unscreened | Screened | |
| Outside Diameter | 6.5 mm | |
| Cable Length | 2m | |
| Voltage | 60 V dc, 48 V ac | |
| Minimum Operating Temperature | -40°C | |
| Conductor Type | Stranded | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS, EAC | |
| Hazardous Area Certification | No | |
| Cable CSA | 0.34 mm² | |
| American Wire Gauge | 22AWG | |
| Fire Behaviour | UL 1685 (CSA FT 4) | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Bus Cable | ||
Series SAC | ||
Number of Cores 2 | ||
Conductor Material Tin Plated Copper | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Red | ||
Screened/Unscreened Screened | ||
Outside Diameter 6.5 mm | ||
Cable Length 2m | ||
Voltage 60 V dc, 48 V ac | ||
Minimum Operating Temperature -40°C | ||
Conductor Type Stranded | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS, EAC | ||
Hazardous Area Certification No | ||
Cable CSA 0.34 mm² | ||
American Wire Gauge 22AWG | ||
Fire Behaviour UL 1685 (CSA FT 4) | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Bus System Cable is expertly designed to facilitate high speed communication within automation systems. This innovative cable supports Sercos standard connectivity with a data transfer rate of 100 Mbps, ensuring rapid and reliable performance for various applications. The combination of shielded construction and robust connector design not only enhances signal integrity but also provides durable protection against environmental factors. With a cable length of 2 metres and superior flexibility for installation, it seamlessly connects devices across industrial settings.
Shielded construction significantly reduces electromagnetic interference
M12 SPEEDCON connector ensures a secure and quick connection
Constructed with durable materials for enhanced longevity
Meets stringent environmental safety standards for use in various industries
Flexible installation options accommodate both fixed and movable setups
Designed to withstand challenging conditions including oil and UV exposure
