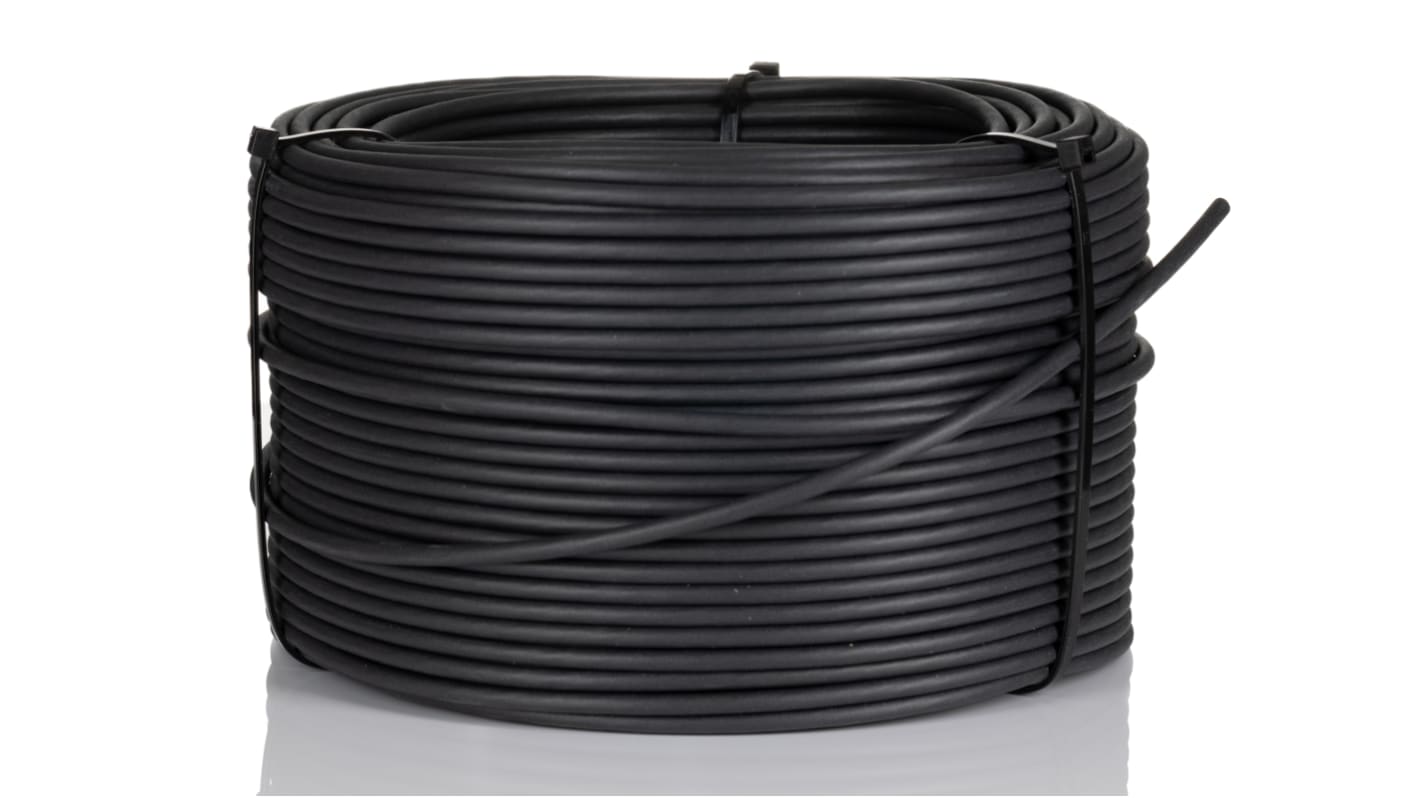

Phoenix Contact SAC-4P-100.0-PUR/SH-0.25 Data Cable, 4 Cores, 0.25 mm², Screened, 100m, Black PUR Sheath, 24 AWG
- RS Stock No.:
- 853-1010
- Mfr. Part No.:
- 1535794
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£353.56
(exc. VAT)
£424.27
(inc. VAT)
FREE delivery for orders over £50.00
- 3 unit(s) ready to ship
Units | Per unit |
|---|---|
| 1 + | £353.56 |
*price indicative
- RS Stock No.:
- 853-1010
- Mfr. Part No.:
- 1535794
- Brand:
- Phoenix Contact
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC-4P-100.0-PUR/SH-0.25 | |
| Number of Cores | 4 | |
| Cross Sectional Area | 0.25 mm² | |
| American Wire Gauge | 24 AWG | |
| Conductor Material | Bare Copper | |
| Sheath Material | PUR | |
| Sheath Colour | Black | |
| Screened/Unscreened | Screened | |
| Screen Type | Copper Braid | |
| Outer Diameter | 5mm | |
| Length | 100m | |
| Minimum Bend Radius | 25 mm | |
| Voltage Rating | 300 V | |
| Standards Met | UL | |
| Maximum Operating Temperature | +80°C | |
| Fire Behaviour | Halogen Free | |
| Conductor Resistance | 78 Ω/km | |
| Insulation Material | PP | |
| Core Strands | 4/0.21 mm | |
| Minimum Operating Temperature | -40°C | |
| Drain Wire | No | |
| Oil Resistant | Yes | |
| Cable Shape | Twisted Pair | |
| Earth Cable | No | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC-4P-100.0-PUR/SH-0.25 | ||
Number of Cores 4 | ||
Cross Sectional Area 0.25 mm² | ||
American Wire Gauge 24 AWG | ||
Conductor Material Bare Copper | ||
Sheath Material PUR | ||
Sheath Colour Black | ||
Screened/Unscreened Screened | ||
Screen Type Copper Braid | ||
Outer Diameter 5mm | ||
Length 100m | ||
Minimum Bend Radius 25 mm | ||
Voltage Rating 300 V | ||
Standards Met UL | ||
Maximum Operating Temperature +80°C | ||
Fire Behaviour Halogen Free | ||
Conductor Resistance 78 Ω/km | ||
Insulation Material PP | ||
Core Strands 4/0.21 mm | ||
Minimum Operating Temperature -40°C | ||
Drain Wire No | ||
Oil Resistant Yes | ||
Cable Shape Twisted Pair | ||
Earth Cable No | ||
- COO (Country of Origin):
- DE
Phoenix Contact Data Cable, 4 x Positions, Twisted Pair Cable Type - SAC-4P-100,0-PUR/SH-0,25 - 1535794
This hardy cable withstands temperatures between -25°C and +80°C in flexible setups and as low as -40°C when fixed in place, so it gets on with the job in harsh conditions. An outer diameter of just 5mm makes it easy to feed into awkward spots. You'll commonly find data cables like this in commercial computer networks and telecommunication systems.
Features & Benefits
• Shielding blocks crosstalk between cables for efficient signalling
• PUR outer sheath is resistant to abrasion and impact, so it's just the thing for heavy-duty applications
• Twisted pair construction prevents crosstalk and EMI
• DIN EN 60811-2-1 marking means it's oil-resistant as per the European standard for electrical insulating and sheathing materials
