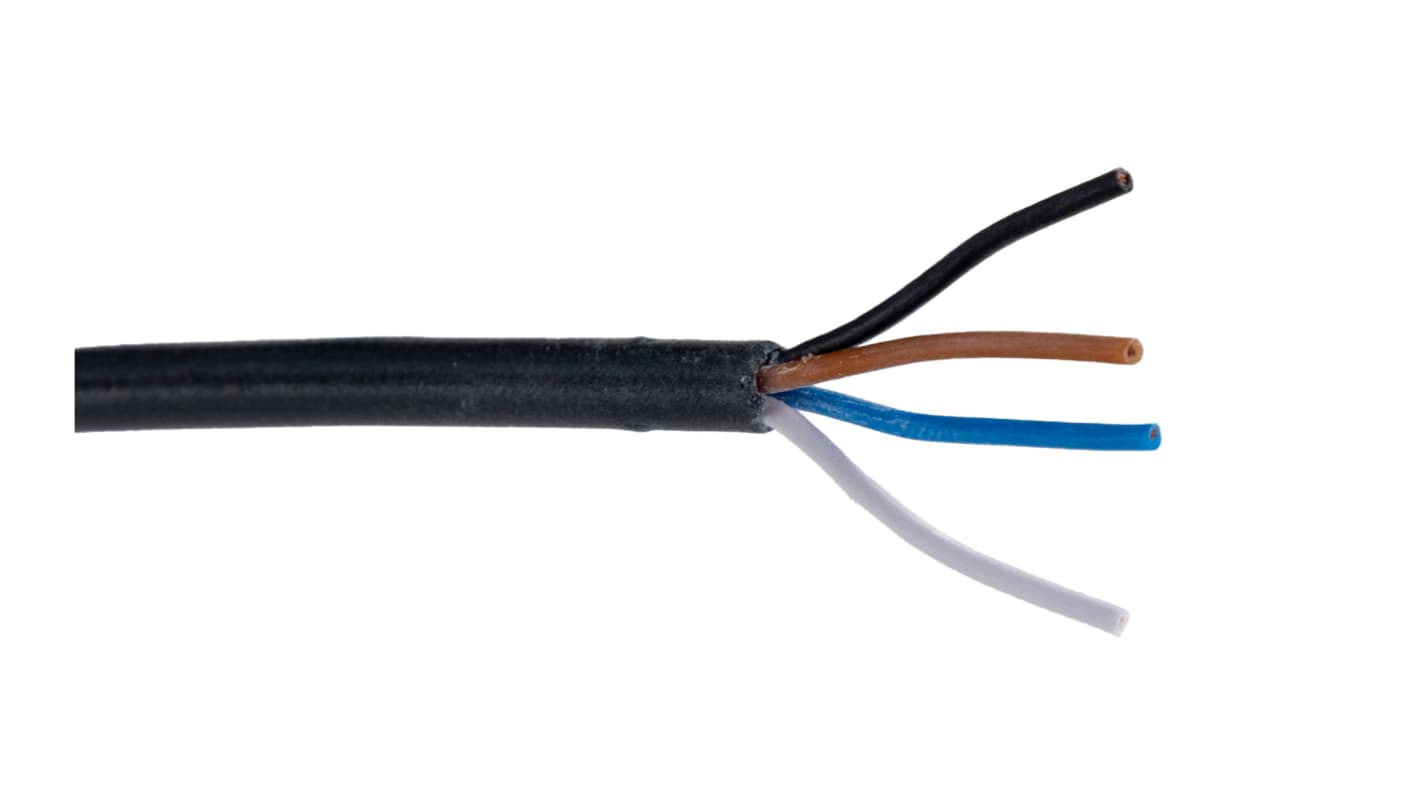

Phoenix Contact SAC-4P-100.0-PUR/0.25 Data Cable, 4 Cores, 0.25 mm², 100m, Black PUR Sheath, 24 AWG
- RS Stock No.:
- 853-0962
- Mfr. Part No.:
- 1501692
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£196.29
(exc. VAT)
£235.55
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £196.29 |
*price indicative
- RS Stock No.:
- 853-0962
- Mfr. Part No.:
- 1501692
- Brand:
- Phoenix Contact
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC-4P-100.0-PUR/0.25 | |
| Number of Cores | 4 | |
| Cross Sectional Area | 0.25 mm² | |
| American Wire Gauge | 24 AWG | |
| Conductor Material | Bare Copper | |
| Sheath Material | PUR | |
| Sheath Colour | Black | |
| Length | 100m | |
| Minimum Bend Radius | 22 mm | |
| Outer Diameter | 4.4mm | |
| Voltage Rating | 300 V | |
| Fire Behaviour | Halogen Free | |
| Maximum Operating Temperature | +80°C | |
| Minimum Operating Temperature | -40°C | |
| Insulation Material | PP | |
| Cable Shape | Twisted Pair | |
| Oil Resistant | Yes | |
| Conductor Resistance | 78 Ω/km | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC-4P-100.0-PUR/0.25 | ||
Number of Cores 4 | ||
Cross Sectional Area 0.25 mm² | ||
American Wire Gauge 24 AWG | ||
Conductor Material Bare Copper | ||
Sheath Material PUR | ||
Sheath Colour Black | ||
Length 100m | ||
Minimum Bend Radius 22 mm | ||
Outer Diameter 4.4mm | ||
Voltage Rating 300 V | ||
Fire Behaviour Halogen Free | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -40°C | ||
Insulation Material PP | ||
Cable Shape Twisted Pair | ||
Oil Resistant Yes | ||
Conductor Resistance 78 Ω/km | ||
