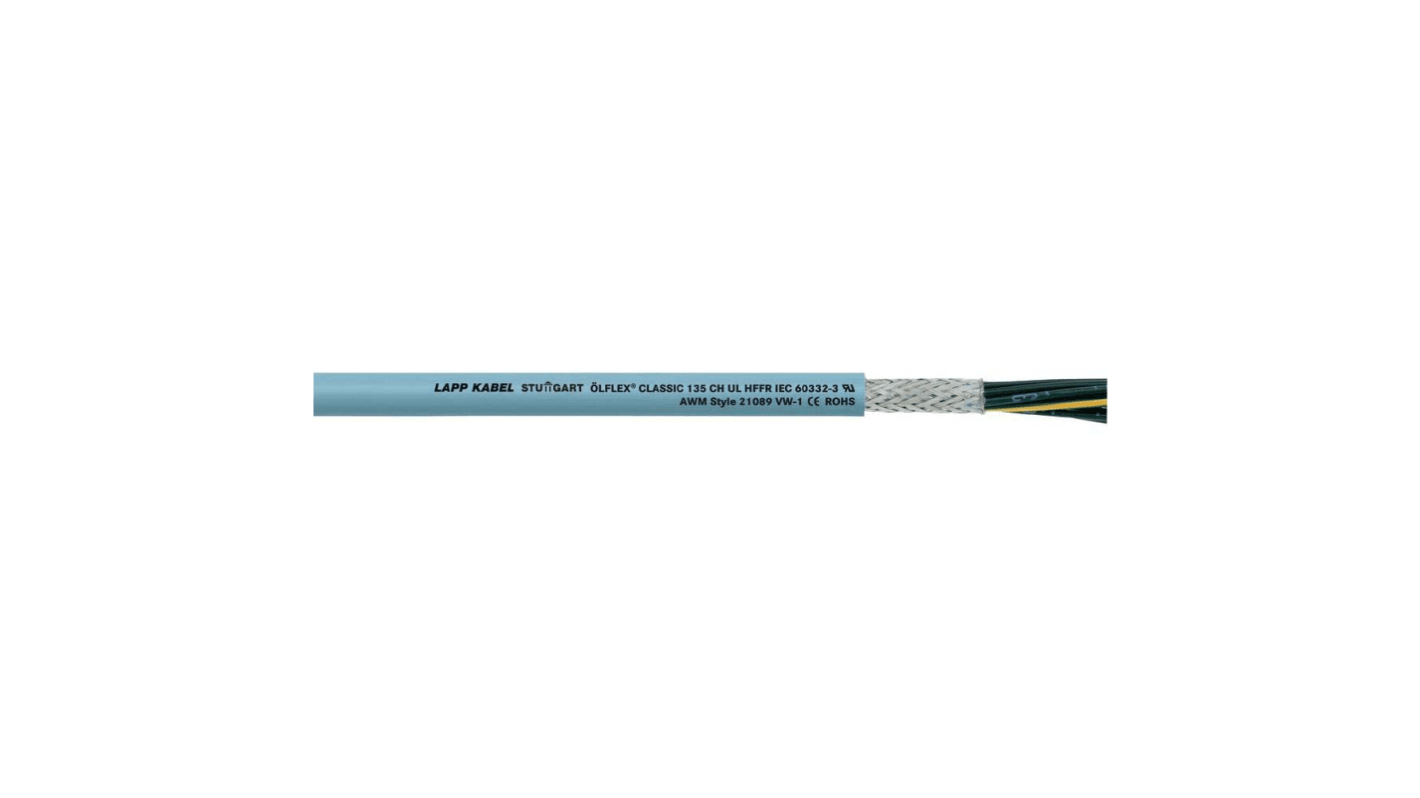

Lapp ÖLFLEX CLASSIC 135 CH Control Cable, 4 Cores, 1.5 mm², CY, Screened, 50m, Grey LSZH Sheath, 15 AWG
- RS Stock No.:
- 719-1667
- Mfr. Part No.:
- 1123309
- Brand:
- Lapp
14 In stock - FREE next working day delivery available
2 available from Europe for delivery within 1 working day(s).
Added
Price 1 Reel of 50 Metre(s)
£318.49
(exc. VAT)
£382.19
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 + | £318.49 | £6.37 |
| *price indicative | ||
- RS Stock No.:
- 719-1667
- Mfr. Part No.:
- 1123309
- Brand:
- Lapp
Technical Reference
Legislation and Compliance
Product Details
LAPP Control Cable, 15 AWG, CY Type - ÖLFLEX CLASSIC 135 Series - 1123309
Take charge of your electrical system with this control cable from LAPP. Its four bare copper cores deliver high conductivity, ensuring signals are clear and your automation application runs like clockwork. With a wide operating temperature range of -40°C to +80°C for fixed installations, it's ideal for use in demanding industrial environments. The PVC sheath is flame-retardant and contains no halogen, so you can rest assured it won't produce toxic fumes in the event of a fire.
Features & Benefits
• Tinned-copper braid and foil screening blocks EMI and RFI, for reliable signal transfer
• Supplied in lengths of 50m, so you'll have enough on hand for multiple jobs
• Drain wire earths the cables and protects against damage from irregular electrical surges
• Supplied in lengths of 50m, so you'll have enough on hand for multiple jobs
• Drain wire earths the cables and protects against damage from irregular electrical surges
Applications
• Public buildings
• Plant engineering
• Assembly lines
• Plant engineering
• Assembly lines
What's the outer diameter of this cable?
The outer diameter of this cable is 8.4mm, so it's an ideal choice for installation in tight spaces.
Specifications
Attribute | Value |
|---|---|
| Series | ÖLFLEX CLASSIC 135 CH |
| Number of Cores | 4 |
| Cross Sectional Area | 1.5 mm² |
| Screened/Unscreened | Screened |
| Length | 50m |
| Control Cable Type | CY |
| Sheath Colour | Grey |
| CPR Certification | Dca |
| American Wire Gauge | 15 AWG |
| Outer Diameter | 8.2mm |
| Sheath Material | LSZH |
| Standards Met | CE, RoHS, UL |
| Fire Behaviour | Flame Retardant, Low Smoke Zero Halogen (LSZH) |
| Minimum Operating Temperature | -40°C |
| Minimum Bend Radius | 6 x Diameter |
| Oil Resistant | No |
| Voltage Rating | 500 V |
| Bedding Material | Tinned Copper |
| Screen Type | Braid, Foil |
| Maximum Operating Temperature | +80°C |
| Drain Wire | Yes |
| Insulation Material | Zero Halogen |
| Conductor Material | Bare Copper |
