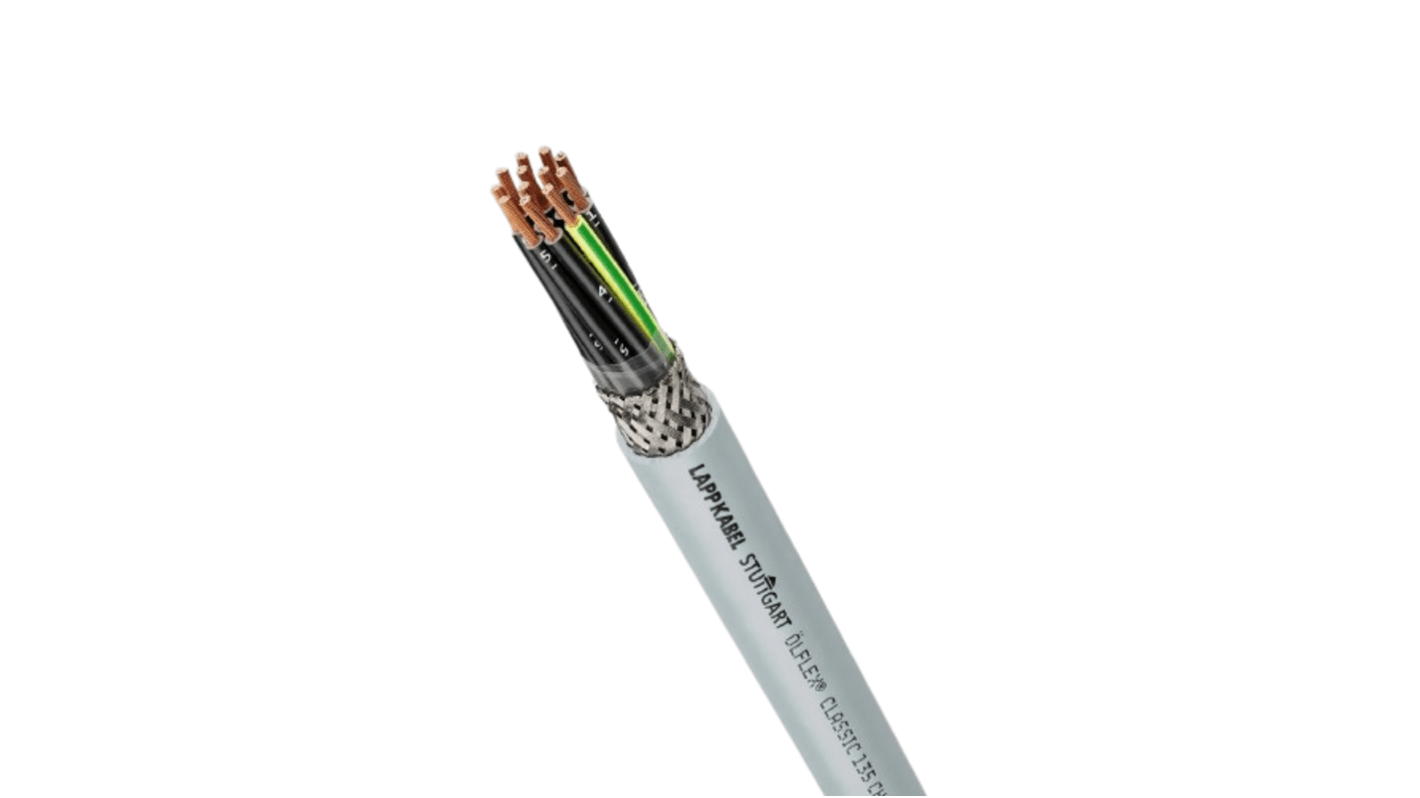

Lapp ÖLFLEX CLASSIC 135 CH Control Cable, 7 Cores, 1 mm², CY, Screened, 50m, Grey LSZH Sheath, 17 AWG

View all Control Cable

Subtotal (1 reel of 50 metres)*

£331.55

(exc. VAT)

£397.86

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£331.55£6.631

*price indicative

Sponsored
Lapp Glands
LAPP
Shop our LAPP Glands
Ensure optimal performance and protection for your LAPP cable by pairing it with genuine LAPP cable glands. Engineered for a perfect fit, these glands provide secure strain relief, reliable sealing, and long-lasting durability—even in demanding industrial environments.
Shop here
RS Stock No.:
719-1655
Mfr. Part No.:
1123274
Brand:
Lapp
Find similar products by selecting one or more attributes.
Select all

Brand

Lapp

Series

ÖLFLEX CLASSIC 135 CH

Number of Cores

7

Cross Sectional Area

1 mm²

American Wire Gauge

17 AWG

Conductor Material

Bare Copper

Sheath Material

LSZH

Sheath Colour

Grey

Control Cable Type

CY

Screened/Unscreened

Screened

Screen Type

Braid, Foil

Minimum Bend Radius

6 x Diameter

Length

50m

Outer Diameter

8.8mm

Voltage Rating

500 V

CPR Certification

Dca

Standards Met

CE, RoHS, UL

Maximum Operating Temperature

+80°C

Fire Behaviour

Flame Retardant, Low Smoke Zero Halogen (LSZH)

Drain Wire

Yes

Insulation Material

Zero Halogen

Minimum Operating Temperature

-40°C

LAPP ÖLFLEX CLASSIC 135 CH Series Control Cable, 1mm² Cross Sectional Area, 7 Cores - 1123274


This screened control cable is an efficient solution for various applications requiring reliable electrical connectivity. The 7 core configuration ensures flexibility and functionality in managing signal and power transmission. With a diameter of 8.9mm and a length of 50m, it is designed to perform excellently within industrial settings.

Features & Benefits


• Screened to minimise interference in sensitive usage
• Flame retardant for enhanced fire safety compliance
• Low smoke zero halogen properties reduce toxic emissions
• Flexible construction allows for easy installation in tight spaces
• Suitable for a voltage rating of 300/500 V for diverse requirements

Applications


• Ideal for use in public buildings such as airports
• Utilised in plant engineering environments for robust performance
• Supports industrial machinery requiring dependable wiring
• Effective in heating and air-conditioning systems needing control functions
• Suitable for use where high fire risk is present

What temperature ranges does it support for installation?


This cable is suitable for fixed installations between -40°C and +80°C, and for occasional flexing from -25°C to +70°C.

What type of environments is it specifically designed for?


It is designed for use in EMC-sensitive environments including industrial settings where electromagnetic compatibility is a concern.

How does the halogen-free property enhance safety?


The halogen-free property prevents the release of toxic gases during a fire, enhancing safety for people and property in critical applications.

What kind of conductor is used in this cable?


It features fine-wire strands made of bare copper, ensuring excellent conductivity and flexibility for effective signal transmission.
