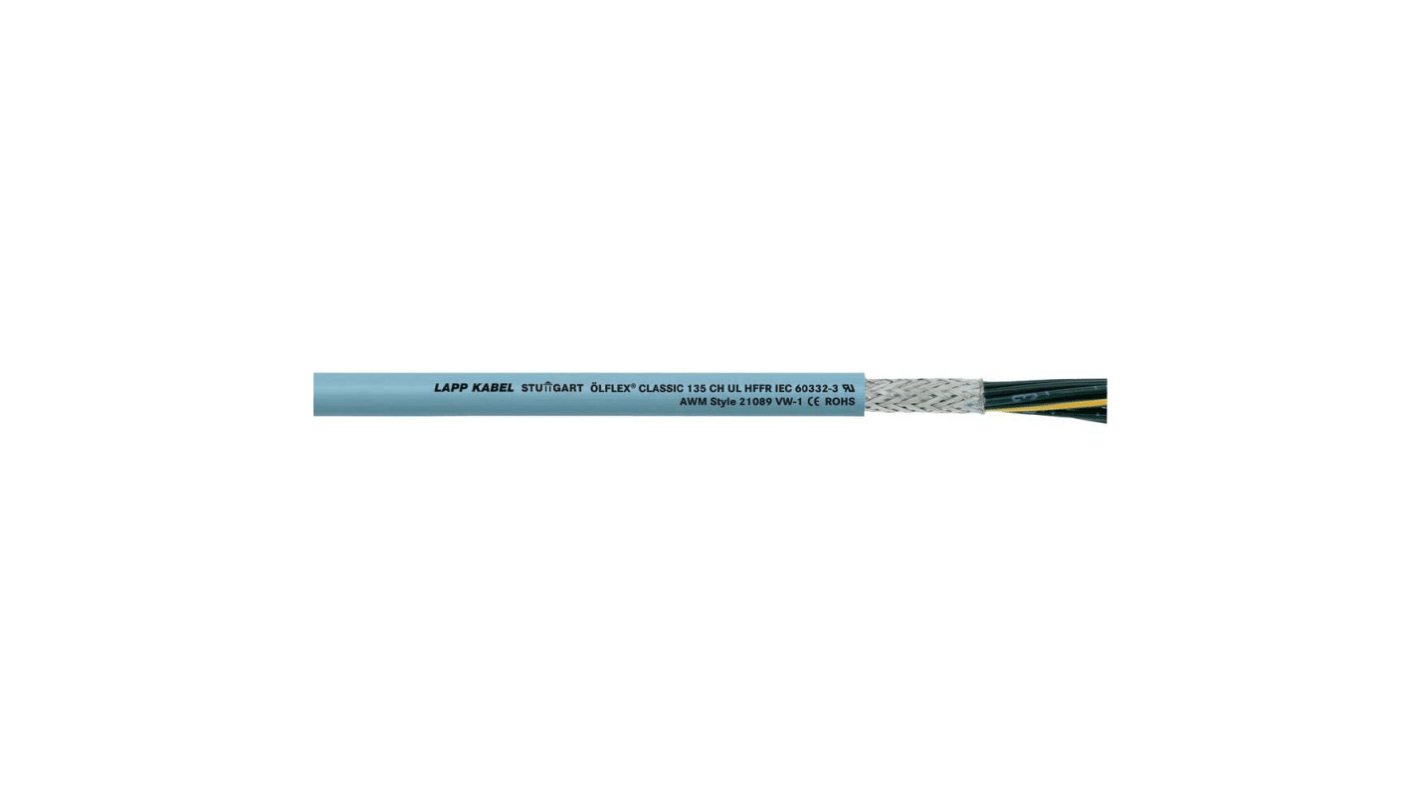

Lapp ÖLFLEX CLASSIC 135 CH Control Cable, 4 Cores, 1 mm², CY, Screened, 50m, Grey LSZH Sheath, 17 AWG

View all Control Cable

Subtotal (1 reel of 50 metres)*

£243.32

(exc. VAT)

£291.98

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£243.32£4.866

*price indicative

Sponsored
Lapp Glands
LAPP
Shop our LAPP Glands
Ensure optimal performance and protection for your LAPP cable by pairing it with genuine LAPP cable glands. Engineered for a perfect fit, these glands provide secure strain relief, reliable sealing, and long-lasting durability—even in demanding industrial environments.
Shop here
RS Stock No.:
719-1658
Mfr. Part No.:
1123269
Brand:
Lapp
Find similar products by selecting one or more attributes.
Select all

Brand

Lapp

Series

ÖLFLEX CLASSIC 135 CH

Number of Cores

4

Cross Sectional Area

1 mm²

American Wire Gauge

17 AWG

Conductor Material

Bare Copper

Sheath Material

LSZH

Sheath Colour

Grey

Control Cable Type

CY

Screened/Unscreened

Screened

Screen Type

Braid, Foil

Outer Diameter

7.4mm

Minimum Bend Radius

6 x Diameter

Length

50m

Voltage Rating

500 V

Standards Met

CE, RoHS, UL

CPR Certification

Dca

Maximum Operating Temperature

+80°C

Fire Behaviour

Flame Retardant, Low Smoke Zero Halogen (LSZH)

Drain Wire

Yes

Minimum Operating Temperature

-40°C

Insulation Material

Zero Halogen

LAPP Control Cable, Bare Copper Conductor Material, Braided Foil Screen - ÖLFLEX Series - 1123269


Take charge of your automated system with this control cable from LAPP. It has braided foil screening, so offers robust protection against electrical interference that might otherwise disrupt signals sent between your equipment and control units. Thanks to a minimum bend radius of 6 times its 7.4mm diameter, this is a versatile solution for cabling in tight spaces. A length of 50m gives you plenty for a long run or lots of shorter installations.

Features & Benefits


• Bare copper conductor material for high conductivity and durability
• Halogen-free and flame-retardant to boost workplace safety
• Grey sheath for easy identification in a colour-coded system

Applications


• Manufacturing equipment
• Robotic systems
• Transportation technology

Is this cable suitable for use in extreme environments?


Yes. It has a wide operating temperature range between -25°C and +70°C in applications that need occasional flex. For fixed installations, it works between -40°C and +80°C, so handles use in challenging conditions.
