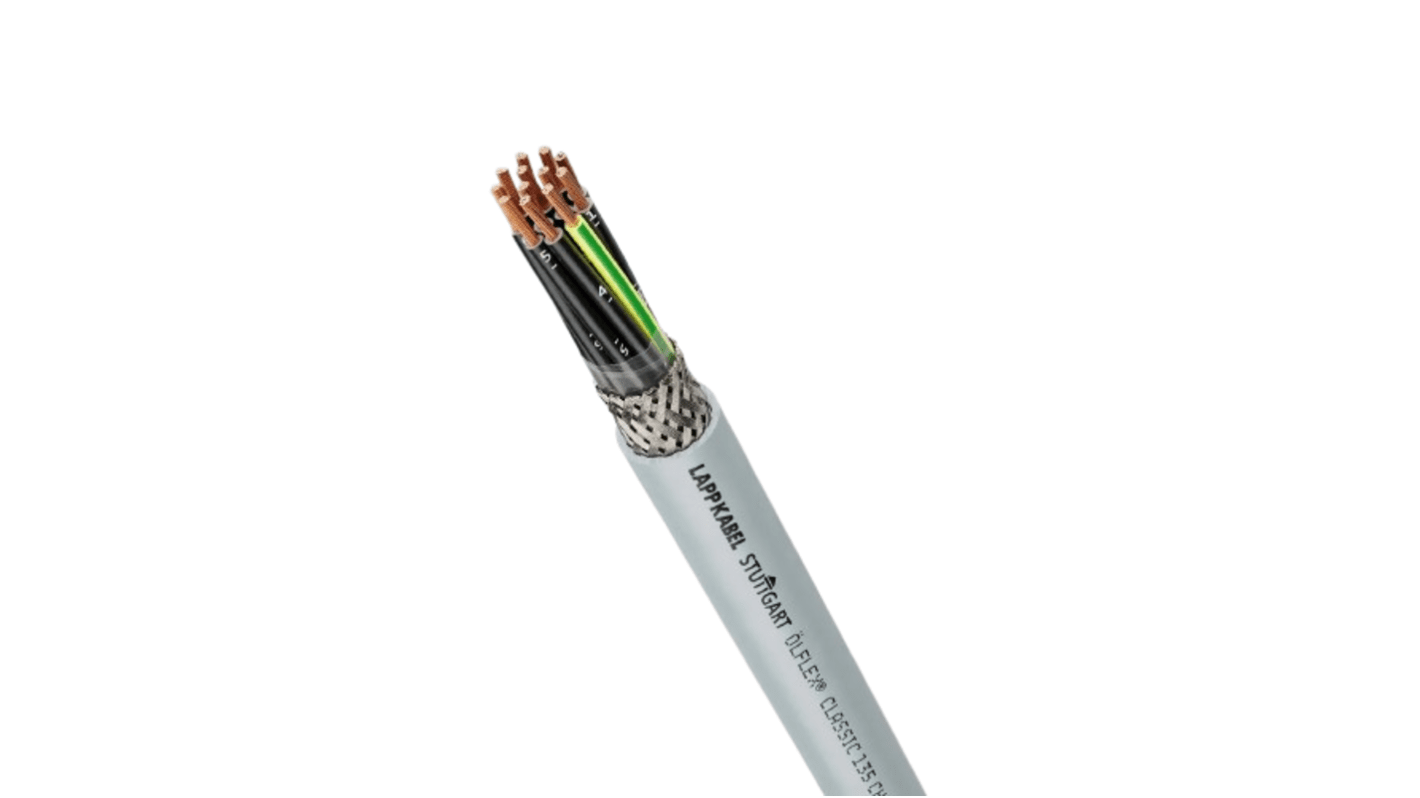

Lapp ÖLFLEX CLASSIC 135 CH Control Cable, 5 Cores, 2.5 mm², Screened, 50m, Grey LSZH Sheath, 13 AWG
- RS Stock No.:
- 719-1686
- Mfr. Part No.:
- 1123344
- Brand:
- Lapp
Subtotal (1 reel of 50 metres)*
£363.29
(exc. VAT)
£435.95
(inc. VAT)
FREE delivery for orders over £50.00
- Shipping from 28 November 2025
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £363.29 | £7.266 |
*price indicative
- RS Stock No.:
- 719-1686
- Mfr. Part No.:
- 1123344
- Brand:
- Lapp
Select all | Attribute | Value |
---|---|---|
Brand | Lapp | |
Series | ÖLFLEX CLASSIC 135 CH | |
Number of Cores | 5 | |
Cross Sectional Area | 2.5 mm² | |
American Wire Gauge | 13 AWG | |
Conductor Material | Bare Copper | |
Sheath Material | LSZH | |
Sheath Colour | Grey | |
Screen Type | Braid, Foil | |
Screened/Unscreened | Screened | |
Length | 50m | |
Minimum Bend Radius | 6 x Diameter | |
Outer Diameter | 11mm | |
Voltage Rating | 500 V | |
CPR Certification | Dca | |
Standards Met | CE, RoHS, UL | |
Fire Behaviour | Flame Retardant, Low Smoke Zero Halogen (LSZH) | |
Maximum Operating Temperature | +80°C | |
Drain Wire | Yes | |
Minimum Operating Temperature | -40°C | |
Insulation Material | Zero Halogen | |
Select all | ||
---|---|---|
Brand Lapp | ||
Series ÖLFLEX CLASSIC 135 CH | ||
Number of Cores 5 | ||
Cross Sectional Area 2.5 mm² | ||
American Wire Gauge 13 AWG | ||
Conductor Material Bare Copper | ||
Sheath Material LSZH | ||
Sheath Colour Grey | ||
Screen Type Braid, Foil | ||
Screened/Unscreened Screened | ||
Length 50m | ||
Minimum Bend Radius 6 x Diameter | ||
Outer Diameter 11mm | ||
Voltage Rating 500 V | ||
CPR Certification Dca | ||
Standards Met CE, RoHS, UL | ||
Fire Behaviour Flame Retardant, Low Smoke Zero Halogen (LSZH) | ||
Maximum Operating Temperature +80°C | ||
Drain Wire Yes | ||
Minimum Operating Temperature -40°C | ||
Insulation Material Zero Halogen | ||
LAPP ÖLFLEX CLASSIC 135 CH Series Control Cable, 2.5mm² Cross Sectional Area, 300/500 V Voltage Rating - 1123344
Features & Benefits
• Halogen-free materials reduce toxic smoke in fire situations
• Flexible structure allows for easy installation in tight spaces
• Includes a drain wire for improved earthing and electrical performance
Applications
• Ideal for plant engineering and industrial machinery installations
• Suitable for heating and air conditioning systems
• Effective in EMC-sensitive environments requiring reliable signal performance
What makes this cable suitable for installation in public buildings?
How does the screened feature enhance its performance in industrial settings?
Can you explain the significance of the temperature range for this control cable?
What advantages does halogen-free insulation offer over traditional materials?
