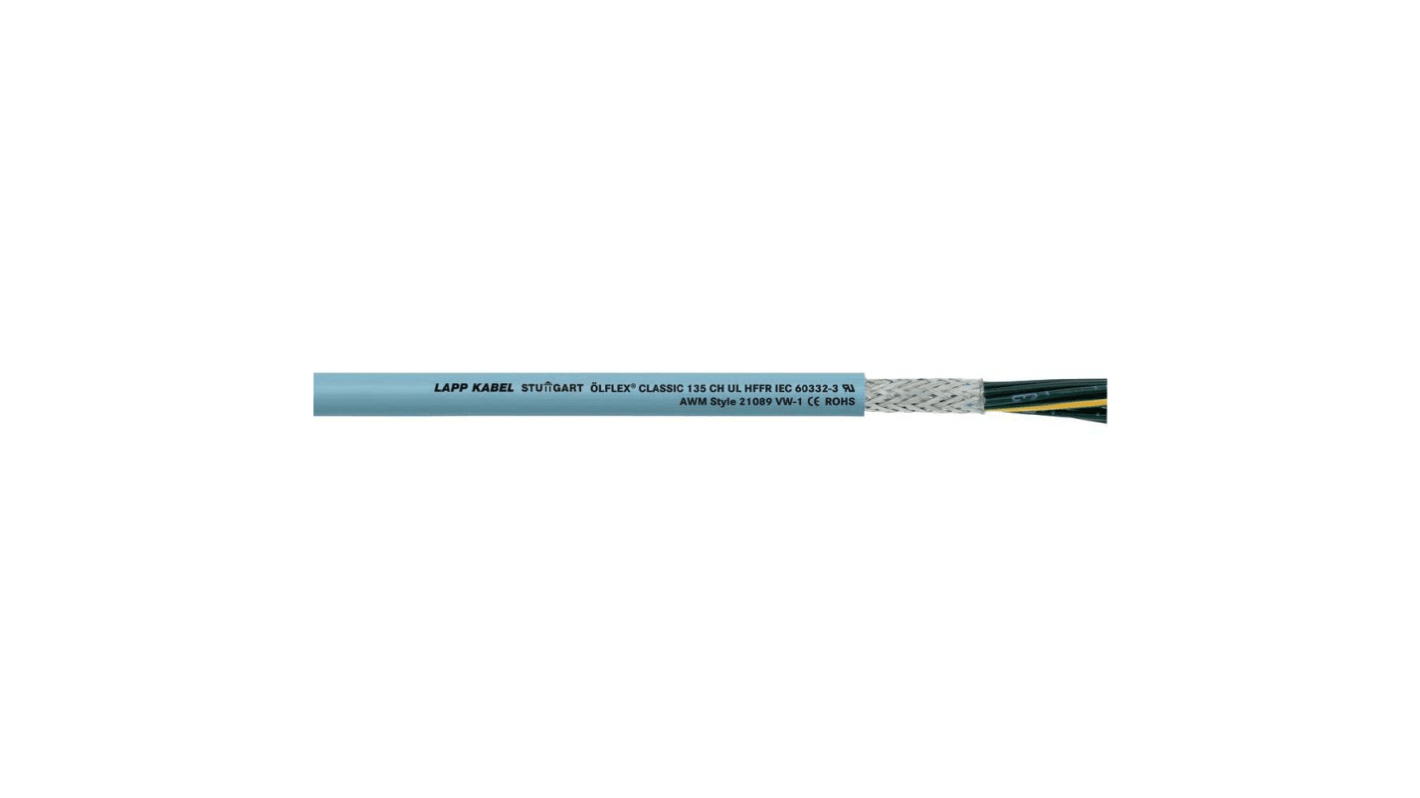

Lapp ÖLFLEX CLASSIC 135 CH Control Cable, 3 Cores, 1.5 mm², CY, Screened, 50m, Grey LSZH Sheath, 16 AWG
- RS Stock No.:
- 719-1664
- Mfr. Part No.:
- 1123307
- Brand:
- Lapp
4 In stock - FREE next working day delivery available
1 available from Europe for delivery within 1 working day(s).
Added
Price 1 Reel of 50 Metre(s)
£223.66
(exc. VAT)
£268.39
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 + | £223.66 | £4.473 |
| *price indicative | ||
- RS Stock No.:
- 719-1664
- Mfr. Part No.:
- 1123307
- Brand:
- Lapp
Technical Reference
Legislation and Compliance
Product Details
Ölflex Classic 135CH
From Lapp, this Olflex Classic 135 CH cable is a screened control cable for use in flexible applications and fixed installations under normal mechanical strain. With a small cable diameter and good flexibility, the cable is ideal for easy and space saving installations.
As well as being screened against EMC interference signals, this HFFR cable is also flame retardant and halogen free, which makes it suitable for use in environments where public safety and property protection is a concern.
The cable is comprised of fine-wire strands of copper wire, with a halogen free core insulation and sheath. It is suitable for use in both dry and damp indoor environments.
Features and Benefits
• Flexible Cable
• EMC screened
• Certified for maritime applications
• Flame-retardant according to IEC 60332-1-2
• Halogen-free according to IEC 60754-1
• Low smoke density according to IEC 61034-2
• Operating Temperature with occasional flex -25°C to +70°C
• Operating Temperature in fixed installations -40°C to +80°C
Applications
The Olflex Classic halogen free control cable is ideal for EMC sensitive environments, and its HFFR properties make it safe for use in specialist applications such as;
• Public Transport
• HVAC Systems
• Industrial Machinery
Accessories
Olflex classic cables should be used with accessories that match their capabilities. As such, Lapp provide a halogen-free range of easy-to-install cable glands.
• 199-670 is an M12 Skintop Halogen Free Cable Gland
• 199-642 is an M16 Skintop Halogen Free Cable Gland
• 199-658 is an M20 Skintop Halogen Free Cable Gland
• 199-541 is an M25 Skintop Halogen Free Cable Gland
• 199-557 is an M32 Skintop Halogen Free Cable Gland
As well as being screened against EMC interference signals, this HFFR cable is also flame retardant and halogen free, which makes it suitable for use in environments where public safety and property protection is a concern.
The cable is comprised of fine-wire strands of copper wire, with a halogen free core insulation and sheath. It is suitable for use in both dry and damp indoor environments.
Features and Benefits
• Flexible Cable
• EMC screened
• Certified for maritime applications
• Flame-retardant according to IEC 60332-1-2
• Halogen-free according to IEC 60754-1
• Low smoke density according to IEC 61034-2
• Operating Temperature with occasional flex -25°C to +70°C
• Operating Temperature in fixed installations -40°C to +80°C
Applications
The Olflex Classic halogen free control cable is ideal for EMC sensitive environments, and its HFFR properties make it safe for use in specialist applications such as;
• Public Transport
• HVAC Systems
• Industrial Machinery
Accessories
Olflex classic cables should be used with accessories that match their capabilities. As such, Lapp provide a halogen-free range of easy-to-install cable glands.
• 199-670 is an M12 Skintop Halogen Free Cable Gland
• 199-642 is an M16 Skintop Halogen Free Cable Gland
• 199-658 is an M20 Skintop Halogen Free Cable Gland
• 199-541 is an M25 Skintop Halogen Free Cable Gland
• 199-557 is an M32 Skintop Halogen Free Cable Gland
LAPP Control Cable, Halogen-Free, 7.6mm Outer Diameter - ÖLFLEX® CLASSIC 135 CH Series - 1123307
Send your system's process signals safely to their destination using this triple-core LAPP control cable. Tin-plated copper braiding protects the cord against electrical interference to cut down on the risk of signal loss. With its conductive copper wires, the lead forms efficient connections for reliable data transfer. Intense environments are no match for the flame-retardant LSZH jacket. As the cable uses stranded cores, it flexes easily to fit into hard-working cabinets.
Features & Benefits
• Halogen-free construction to cut the risk of toxic substances forming if heated
• Supplied on a 50m-length reel, ensuring hassle-free stocking
• UV-resistant to stay strong in outdoor applications
• Numbered cores for straightforward connection identification during wiring
• Supplied on a 50m-length reel, ensuring hassle-free stocking
• UV-resistant to stay strong in outdoor applications
• Numbered cores for straightforward connection identification during wiring
Applications
• Security systems
• Server management
• Telecommunications
• Marine engineering
• Server management
• Telecommunications
• Marine engineering
Does this lead have an integrated drain wire?
Yes, it does. This deals with any built-up charge for safe handling, so you don't need to connect a separate earth conductor.
Specifications
Attribute | Value |
|---|---|
| Series | ÖLFLEX CLASSIC 135 CH |
| Number of Cores | 3 |
| Cross Sectional Area | 1.5 mm² |
| Screened/Unscreened | Screened |
| Length | 50m |
| Control Cable Type | CY |
| Sheath Colour | Grey |
| Cable Shape | Round |
| CPR Certification | Dca |
| American Wire Gauge | 16 AWG |
| Outer Diameter | 7.5mm |
| Sheath Material | LSZH |
| Standards Met | CE, RoHS, UL |
| Conductor Material | Bare Copper |
| Drain Wire | Yes |
| Screen Type | Braid, Foil |
| Maximum Operating Temperature | +80°C |
| Minimum Bend Radius | 6 x Diameter |
| Minimum Operating Temperature | -40°C |
| Fire Behaviour | Flame Retardant, Low Smoke Zero Halogen (LSZH) |
| Insulation Material | Zero Halogen |
| Armoured | No |
| Voltage Rating | 500 V |
| Earth Cable | No |
