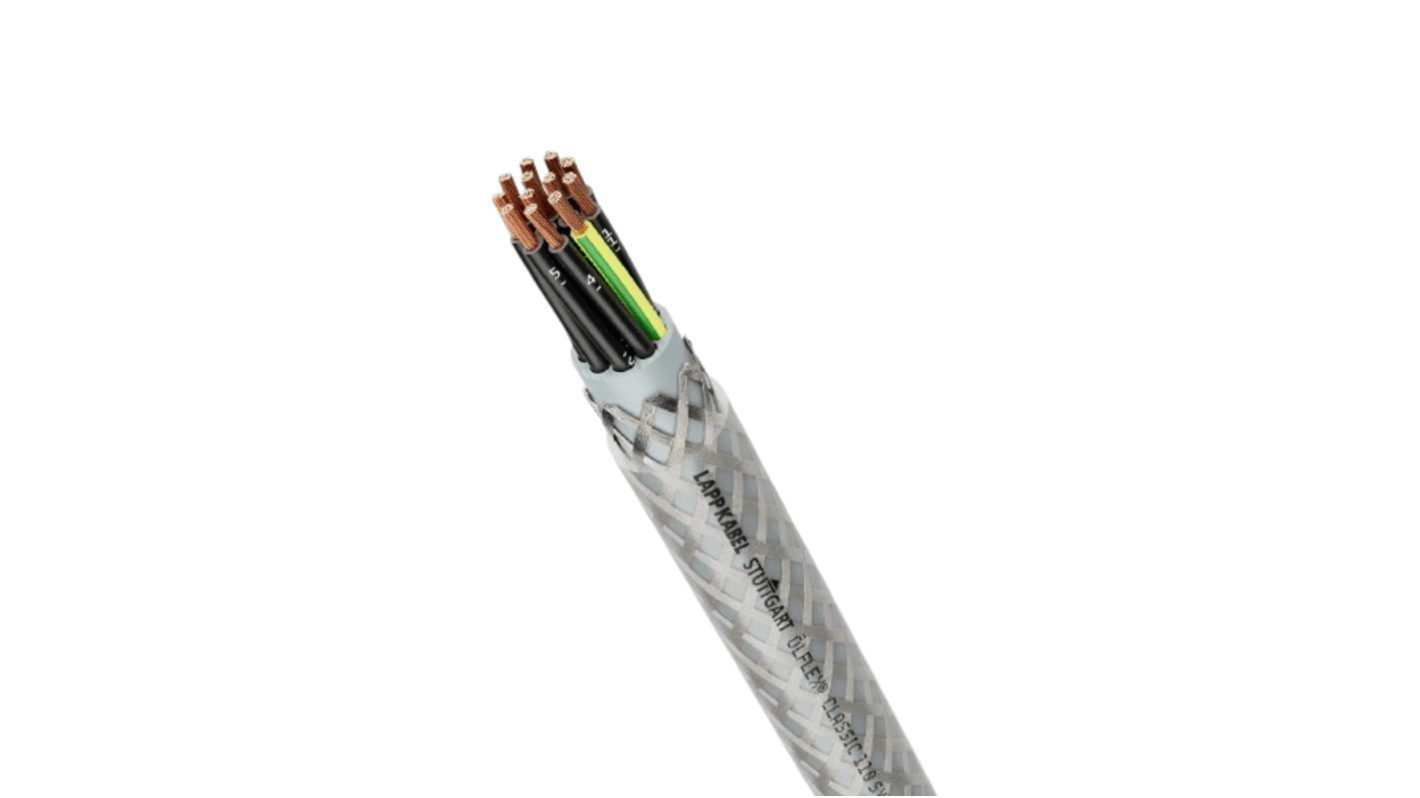

Lapp ÖLFLEX CLASSIC 110 SY Control Cable, 12 Cores, 1 mm², SY, Screened, 50m, Transparent PVC Sheath, 18 AWG

RS Stock No.:: 454-8821
Mfr. Part No.:: 1125212
Brand:: Lapp

Lapp ÖLFLEX CLASSIC 110 SY Control Cable, 12 Cores, 1 mm², SY, Screened, 50m, Transparent PVC Sheath, 18 AWG

Subtotal (1 reel of 50 metres)*

£339.93

(exc. VAT)

£407.92

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

7 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£339.93	£6.799

*price indicative

Shop our LAPP Glands

Ensure optimal performance and protection for your LAPP cable by pairing it with genuine LAPP cable glands. Engineered for a perfect fit, these glands provide secure strain relief, reliable sealing, and long-lasting durability—even in demanding industrial environments.

Shop here

RS Stock No.:: 454-8821
Mfr. Part No.:: 1125212
Brand:: Lapp

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Series	ÖLFLEX CLASSIC 110 SY
	Number of Cores	12
	Cross Sectional Area	1 mm²
	American Wire Gauge	18 AWG
	Conductor Material	Copper
	Sheath Material	PVC
	Sheath Colour	Transparent
	Control Cable Type	SY
	Screened/Unscreened	Screened
	Screen Type	Galvanised Steel Braid
	Minimum Bend Radius	Fixed - 6 x D Occasional Flexing - 20 x D
	Length	50m
	Outer Diameter	13.9mm
	Voltage Rating	300/500 V
	Current Rating	15 A
	CPR Certification	Eca
	Maximum Operating Temperature	+80°C
	Insulation Material	PVC
	Oil Resistant	Yes
	Minimum Operating Temperature	-40°C
	Bedding Material	PVC
	Filler Material	Non-Wicking Filler
	Core Strands	32/0.2 mm
	Conductor Resistance	19.5 Ω/km
	Earth Cable	Yes

	Select all
	Brand Lapp
	Series ÖLFLEX CLASSIC 110 SY
	Number of Cores 12
	Cross Sectional Area 1 mm²
	American Wire Gauge 18 AWG
	Conductor Material Copper
	Sheath Material PVC
	Sheath Colour Transparent
	Control Cable Type SY
	Screened/Unscreened Screened
	Screen Type Galvanised Steel Braid
	Minimum Bend Radius Fixed - 6 x D Occasional Flexing - 20 x D
	Length 50m
	Outer Diameter 13.9mm
	Voltage Rating 300/500 V
	Current Rating 15 A
	CPR Certification Eca
	Maximum Operating Temperature +80°C
	Insulation Material PVC
	Oil Resistant Yes
	Minimum Operating Temperature -40°C
	Bedding Material PVC
	Filler Material Non-Wicking Filler
	Core Strands 32/0.2 mm
	Conductor Resistance 19.5 Ω/km
	Earth Cable Yes

COO (Country of Origin):: DE

LAPP ÖLFLEX CLASSIC 110 SY Series Control Cable, 12 Cores, 1mm² Cross Section - 1125212

This control cable is designed for dynamic applications and features a robust construction suitable for varying environments. This is a flexible control cable with a round shape and a length of 50m. It incorporates a galvanised steel braid for mechanical protection, ensuring enduring performance in demanding tasks.

Features & Benefits

• 300/500V rated, suitable for a range of voltages
• Screened design reduces electromagnetic interference
• High temperature rating of +80°C optimises performance
• 12 core configuration allows versatile connectivity options

Applications

• Utilised in control systems for machinery
• Applicable in assembly lines for automation tasks
• Deployed in control panels for electrical distribution
• Effective in data processing equipment to maintain integrity
• Ideal for use in both dry and damp environments

What is the significance of the screened design?

The screened design helps to minimise electromagnetic interference, ensuring signal integrity in sensitive applications. This makes it particularly beneficial for setups that operate close to other electrical equipment.

How does the high temperature rating affect performance?

The high temperature rating enhances the cable's reliability in harsh conditions, allowing it to perform optimally in environments with elevated temperatures, thus extending its lifespan.

What advantages does the galvanised steel braid provide?

The galvanised steel braid offers excellent mechanical protection, safeguarding the cable from physical damage and wear, which is crucial in industrial settings.

Can this cable be used in both indoor and outdoor applications?

Yes, the cable's robust PVC sheath ensures it is suitable for both indoor and outdoor use, providing flexibility across various installation scenarios.
