From Lapp, the Olflex Classic 110 series is a PVC control cable ideal for a variety of applications. Protected by braided steel wire, the cable has a high degree of mechanical resistance. Coupled with its resistance to chemicals and oils, Olflex Classic 110 cables are fit for use in the roughest of operating conditions.

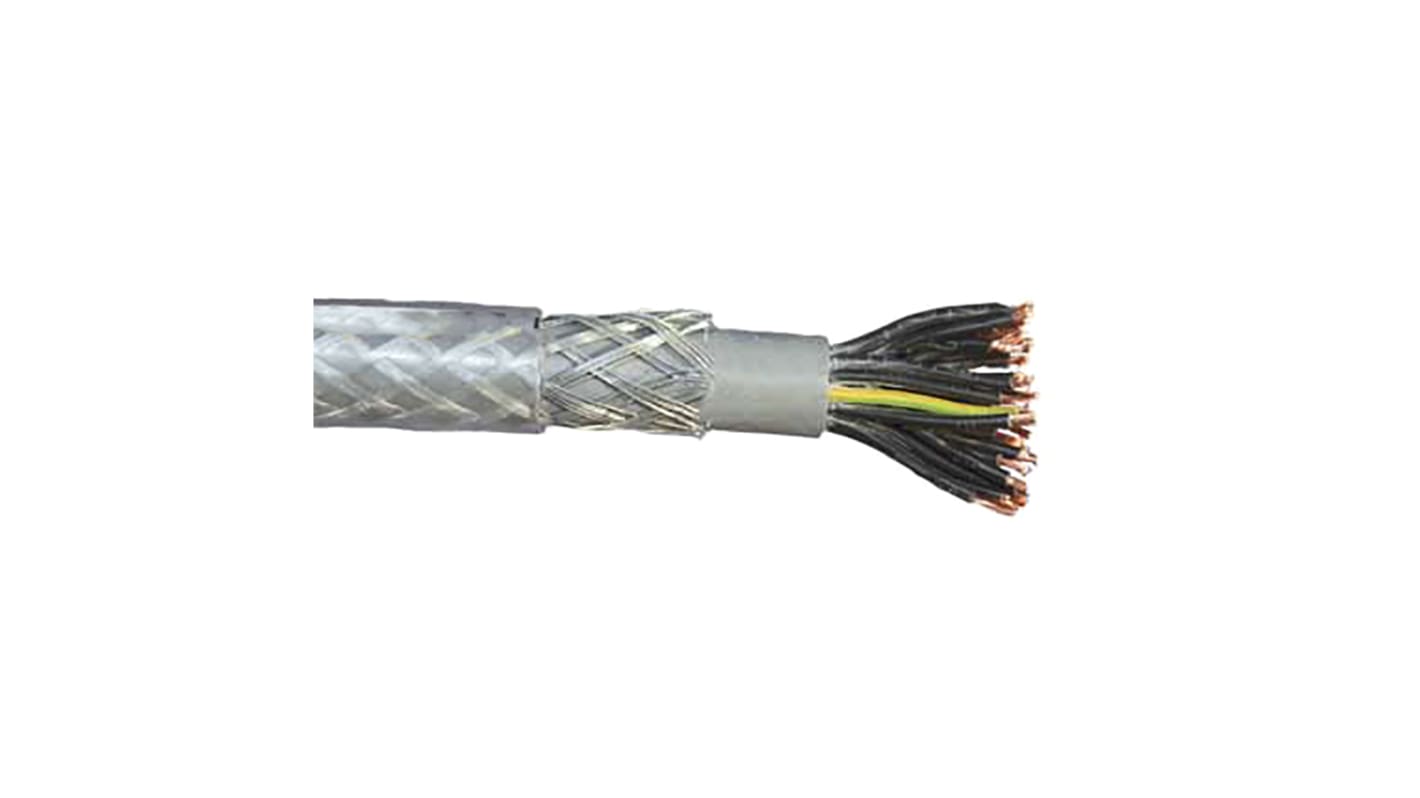

The flexible multi-core cable is comprised of fine-wire copper strands twisted in layers, covered in PVC insulation. Then cable then has an oxidated protective steel wire braiding, and a transparent flame retardant out sheath. The transparent sheath is useful to inspect the cable for wear and tear, such as corrosion and deterioration.

Features and Benefits

• Fine copper wire strands in accordance to VDE 0295 class 5 / IEC class 5
• Flame retardant to IEC 60332-1-2
• High resistance against acids, alkaline and oils
• Good Chemical Resistance
• Excellent mechanical protection
• Compliant with directive 73//23 (Low Voltage Directive)
• Operating temperature range for fixed installations -40°C to +80°C
• Operating temperature range for occasional flexing -5°C to +70°C

Applications

Lapp Olflex Classic 110 SY cable is very durable, and so can be used for a wide range of applications in areas where high mechanical stress is likely. It is often used in;

• HVAC Systems
• Industrial Machinery
• Machine Tooling
• Plant Engineering

Accessories

Lapp cables should be used with accessories that match their capabilities, and as such Lapp provides a range of durable and easy-to-install cable glands.

• 433-0945 is an M16 IP68 Skintop Cable Gland
• 433-0951 is an M20 IP68 Skintop Cable Gland
• 433-0967 is an M25 IP68 Skintop Cable Gland
• 433-0973 is an M32 IP68 Skintop Cable Gland
• 433-0989 is an M40 IP68 Skintop Cable Gland

VDE, This cable confirms to ECD 73/23/EEC (low voltage directive).

This control cable by Lapp is a durable and versatile solution for various applications in the automation, electronics, electrical, and mechanical industries. Featuring a PVC insulation, copper conductor, and galvanised steel braid, this cable offers high mechanical protection and chemical resistance.

• Copper conductor with 18 AWG American Wire Gauge
• SY control cable type with 25 cores
• Oil resistant and flame-retardant for enhanced safety
• Transparent PVC sheath for easy identification
• Galvanised steel braid for additional mechanical protection

• Ideal for plant construction and machine building
• Suitable for heating and air-conditioning systems
• Can be used for areas with increased mechanical stress

This control cable is suitable for heating systems due to its high mechanical protection and resistance to mechanical stress.

Yes, it is oil resistant, making it ideal for applications where exposure to oil is a concern.

Yes, this control cable is flame-retardant according to IEC 60332-1-2 standards, ensuring enhanced safety in various applications.

Yes, it is suitable for fixed installations as well as occasional flexing with free, non-continuously recurring movement without tensile load.

Yes, this control cable features a transparent PVC sheath, allowing for easy identification and installation.
