Lapp ÖLFLEX CLASSIC 110 SY Control Cable, 18 Cores, 1 mm², SY, Screened, 50m, Transparent PVC Sheath, 18 AWG

RS Stock No.:: 454-8843
Distrelec Article No.:: 304-01-045
Mfr. Part No.:: 1125218
Brand:: Lapp

Lapp ÖLFLEX CLASSIC 110 SY Control Cable, 18 Cores, 1 mm², SY, Screened, 50m, Transparent PVC Sheath, 18 AWG

Subtotal (1 reel of 50 metres)*

£401.74

(exc. VAT)

£482.09

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

10 unit(s) ready to ship
Plus 8 unit(s) shipping from 14 November 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£401.74	£8.035

*price indicative

RS Stock No.:: 454-8843
Distrelec Article No.:: 304-01-045
Mfr. Part No.:: 1125218
Brand:: Lapp

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Series	ÖLFLEX CLASSIC 110 SY
	Number of Cores	18
	Cross Sectional Area	1 mm²
	American Wire Gauge	18 AWG
	Conductor Material	Copper
	Sheath Material	PVC
	Control Cable Type	SY
	Sheath Colour	Transparent
	Screen Type	Galvanised Steel Braid
	Screened/Unscreened	Screened
	Minimum Bend Radius	Fixed - 6 x D Occasional Flexing - 20 x D
	Length	50m
	Outer Diameter	15.9mm
	Voltage Rating	300/500 V
	Current Rating	15 A
	Standards Met	CE
	CPR Certification	Eca
	Maximum Operating Temperature	+80°C
	Fire Behaviour	Flame Retardant
	Minimum Operating Temperature	-40°C
	Bedding Material	PVC
	Insulation Material	PVC
	Earth Cable	Yes
	Conductor Resistance	19.5 Ω/km
	Filler Material	Non-Wicking Filler
	Core Strands	32/0.2 mm
	Oil Resistant	Yes

	Select all
	Brand Lapp
	Series ÖLFLEX CLASSIC 110 SY
	Number of Cores 18
	Cross Sectional Area 1 mm²
	American Wire Gauge 18 AWG
	Conductor Material Copper
	Sheath Material PVC
	Control Cable Type SY
	Sheath Colour Transparent
	Screen Type Galvanised Steel Braid
	Screened/Unscreened Screened
	Minimum Bend Radius Fixed - 6 x D Occasional Flexing - 20 x D
	Length 50m
	Outer Diameter 15.9mm
	Voltage Rating 300/500 V
	Current Rating 15 A
	Standards Met CE
	CPR Certification Eca
	Maximum Operating Temperature +80°C
	Fire Behaviour Flame Retardant
	Minimum Operating Temperature -40°C
	Bedding Material PVC
	Insulation Material PVC
	Earth Cable Yes
	Conductor Resistance 19.5 Ω/km
	Filler Material Non-Wicking Filler
	Core Strands 32/0.2 mm
	Oil Resistant Yes

COO (Country of Origin):: DE

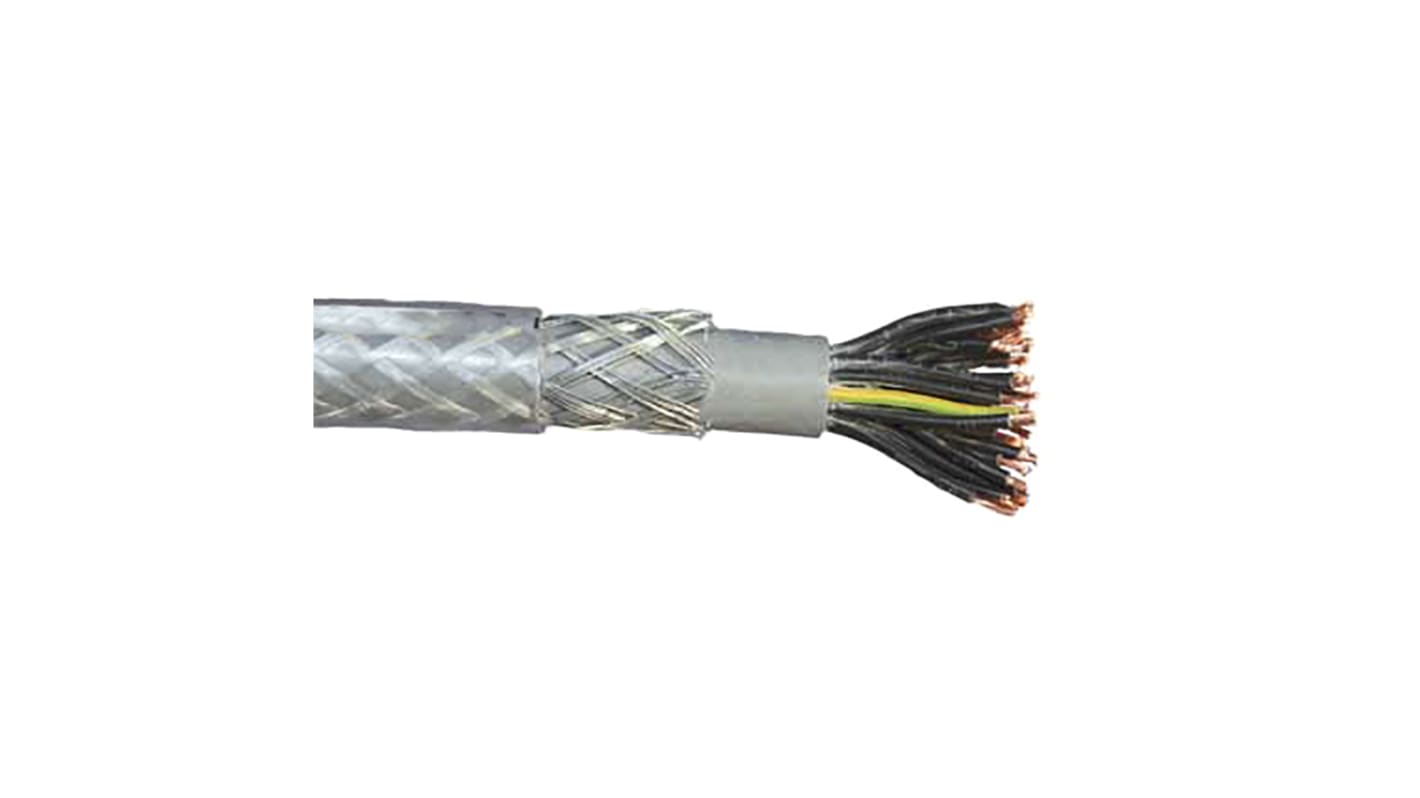

LAPP Control Cable, 18 Cores, 1mm² Conductor Cross Section - ÖLFLEX Series - 1125218

Transmit signals to your automation equipment with this control cable from LAPP. Its bare copper conductors are highly conductive to ensure effective electrical connections and it's sheathed in a transparent PVC jacket for resistance to oil, chemicals and abrasion. As the cable has a stranded conductor core, it's flexible for ease of installation in tight or awkward areas. Galvanised steel braiding shields your connection against EMI to minimise disruption and support reliable data transfer.

Features & Benefits

• Compact outer diameter of 15.9mm to fit in tight spaces
• Broad operating temperature range between -40°C and +80°C for use in harsh industrial conditions
• Includes a protective conductor to minimise the risk of electrical hazards

Applications

• Food processing
• Product handling
• Automated assembly lines
• Construction industry

How do I identify the cores in this cable?

The cable's conductors are individually numbered for ease of identification during installation and maintenance.
