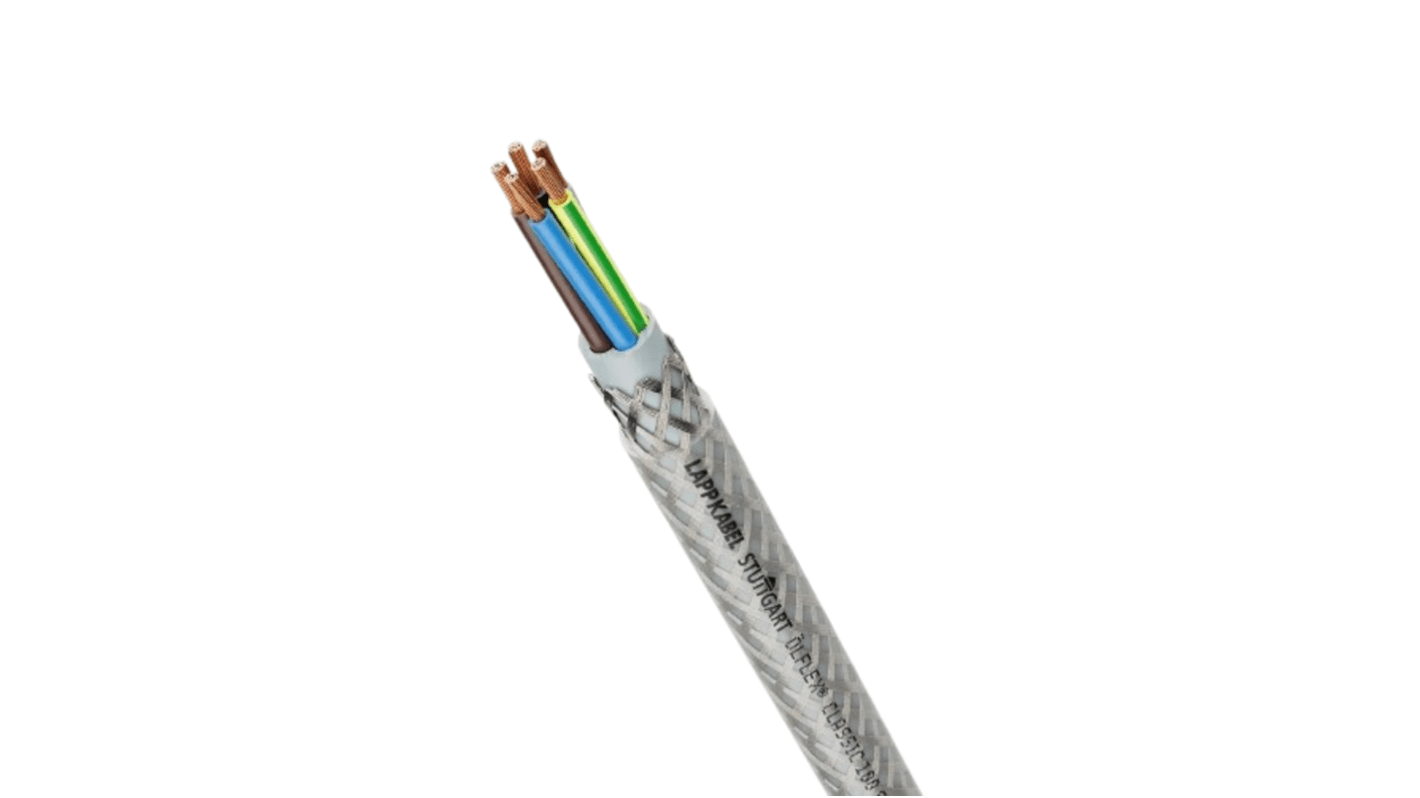

Lapp ÖLFLEX CLASSIC 100 SY Control Cable, 3 Cores, 0.75 mm², SY, Screened, 50m, Grey PVC Sheath, 18 AWG

RS Stock No.:: 444-0373
Mfr. Part No.:: 0016023
Brand:: Lapp

Lapp ÖLFLEX CLASSIC 100 SY Control Cable, 3 Cores, 0.75 mm², SY, Screened, 50m, Grey PVC Sheath, 18 AWG

Subtotal (1 reel of 50 metres)*

£93.84

(exc. VAT)

£112.61

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

3 unit(s) ready to ship
Plus 7 unit(s) shipping from 21 November 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£93.84	£1.877

*price indicative

RS Stock No.:: 444-0373
Mfr. Part No.:: 0016023
Brand:: Lapp

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Series	ÖLFLEX CLASSIC 100 SY
	Number of Cores	3
	Cross Sectional Area	0.75 mm²
	American Wire Gauge	18 AWG
	Conductor Material	Bare Copper
	Sheath Material	PVC
	Sheath Colour	Grey
	Control Cable Type	SY
	Screen Type	Galvanised Steel Braid
	Screened/Unscreened	Screened
	Armoured	Yes
	Outer Diameter	8.5mm
	Minimum Bend Radius	Fixed - 6 x D, Occasional Flexing - 20 x D
	Length	50m
	Voltage Rating	300/500 V
	Current Rating	6 A
	CPR Certification	Eca
	Maximum Operating Temperature	+80°C
	Core Strands	24/0.2 mm
	Insulation Material	PVC
	Oil Resistant	Yes
	Minimum Operating Temperature	-40°C
	Filler Material	Non-Wicking Filler
	Earth Cable	Yes
	Conductor Resistance	26 Ω/km
	Bedding Material	PVC

	Select all
	Brand Lapp
	Series ÖLFLEX CLASSIC 100 SY
	Number of Cores 3
	Cross Sectional Area 0.75 mm²
	American Wire Gauge 18 AWG
	Conductor Material Bare Copper
	Sheath Material PVC
	Sheath Colour Grey
	Control Cable Type SY
	Screen Type Galvanised Steel Braid
	Screened/Unscreened Screened
	Armoured Yes
	Outer Diameter 8.5mm
	Minimum Bend Radius Fixed - 6 x D, Occasional Flexing - 20 x D
	Length 50m
	Voltage Rating 300/500 V
	Current Rating 6 A
	CPR Certification Eca
	Maximum Operating Temperature +80°C
	Core Strands 24/0.2 mm
	Insulation Material PVC
	Oil Resistant Yes
	Minimum Operating Temperature -40°C
	Filler Material Non-Wicking Filler
	Earth Cable Yes
	Conductor Resistance 26 Ω/km
	Bedding Material PVC

COO (Country of Origin):: DE

LAPP ÖLFLEX CLASSIC 100 SY Series Control Cable, 3 Number of Cores, 0.75mm² Cross Sectional Area - 0016023

This control cable is designed for a variety of industrial applications. It features three cores with a cross-sectional area of 0.75mm², encased in a grey PVC sheath which ensures flexibility and durability. With an outer diameter of 8.5mm, this screened control cable is ideal for environments that require added mechanical protection.

Features & Benefits

• Armoured construction provides enhanced protection against mechanical damage
• Designed for a voltage rating of 300/500 V to ensure operational safety
• Temperatures ranging from -40°C to +80°C for versatile use
• Screened design effectively reduces electromagnetic interference

Applications

• Used for plant construction and machine building
• Ideal for heating and air-conditioning systems
• Suitable for areas with high mechanical stress requirements
• Utilised for power distribution in industrial setups

What are the benefits of using a screened control cable in industrial setups?

Using a screened control cable helps to significantly reduce electromagnetic interference, ensuring stable operation of sensitive electronic devices. This is particularly advantageous in environments with high levels of electrical noise.

How does the armoured design of this cable contribute to its durability?

The armoured design incorporates galvanised steel braiding, which provides vital protection against mechanical impacts and abrasions, making it suitable for demanding applications in industrial settings.

What is the significance of the minimum bend radius in installation?

The minimum bend radius ensures that the cable is not subjected to excessive stress during installation or use, preserving its structural integrity and performance. For fixed installations, this is set at six times the outer diameter.

Standards

VDE 0295, Part 5
