Lapp ÖLFLEX CLASSIC 100 SY Control Cable, 3 Cores, 2.5 mm², SY, Screened, 50m, Grey PVC Sheath, 13 AWG

RS Stock No.:: 444-0418
Mfr. Part No.:: 0016088
Brand:: Lapp

Lapp ÖLFLEX CLASSIC 100 SY Control Cable, 3 Cores, 2.5 mm², SY, Screened, 50m, Grey PVC Sheath, 13 AWG

Subtotal (1 reel of 50 metres)*

£259.86

(exc. VAT)

£311.83

(inc. VAT)

Stock information currently inaccessible

Reel(s)	Per Reel	Per Metre*
1 +	£259.86	£5.197

*price indicative

Shop our LAPP Glands

Ensure optimal performance and protection for your LAPP cable by pairing it with genuine LAPP cable glands. Engineered for a perfect fit, these glands provide secure strain relief, reliable sealing, and long-lasting durability—even in demanding industrial environments.

Shop here

RS Stock No.:: 444-0418
Mfr. Part No.:: 0016088
Brand:: Lapp

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Series	ÖLFLEX CLASSIC 100 SY
	Number of Cores	3
	Cross Sectional Area	2.5 mm²
	American Wire Gauge	13 AWG
	Conductor Material	Bare Copper
	Sheath Material	PVC
	Control Cable Type	SY
	Sheath Colour	Grey
	Screened/Unscreened	Screened
	Screen Type	Galvanised Steel Braid
	Minimum Bend Radius	Fixed - 6 x D, Occasional Flexing - 20 x D
	Length	50m
	Outer Diameter	12.6mm
	Voltage Rating	450/750 V
	Current Rating	26 A
	Standards Met	EN 50525-2-51, IEC 60227-5
	CPR Certification	Eca
	Maximum Operating Temperature	+80°C
	Fire Behaviour	Flame Retardant
	Filler Material	Non-Wicking Filler
	Bedding Material	PVC
	Conductor Resistance	7.98 Ω/km
	Earth Cable	Yes
	Minimum Operating Temperature	-40°C
	Oil Resistant	Yes
	Core Strands	50/0.25 mm
	Insulation Material	PVC

	Select all
	Brand Lapp
	Series ÖLFLEX CLASSIC 100 SY
	Number of Cores 3
	Cross Sectional Area 2.5 mm²
	American Wire Gauge 13 AWG
	Conductor Material Bare Copper
	Sheath Material PVC
	Control Cable Type SY
	Sheath Colour Grey
	Screened/Unscreened Screened
	Screen Type Galvanised Steel Braid
	Minimum Bend Radius Fixed - 6 x D, Occasional Flexing - 20 x D
	Length 50m
	Outer Diameter 12.6mm
	Voltage Rating 450/750 V
	Current Rating 26 A
	Standards Met EN 50525-2-51, IEC 60227-5
	CPR Certification Eca
	Maximum Operating Temperature +80°C
	Fire Behaviour Flame Retardant
	Filler Material Non-Wicking Filler
	Bedding Material PVC
	Conductor Resistance 7.98 Ω/km
	Earth Cable Yes
	Minimum Operating Temperature -40°C
	Oil Resistant Yes
	Core Strands 50/0.25 mm
	Insulation Material PVC

COO (Country of Origin):: DE

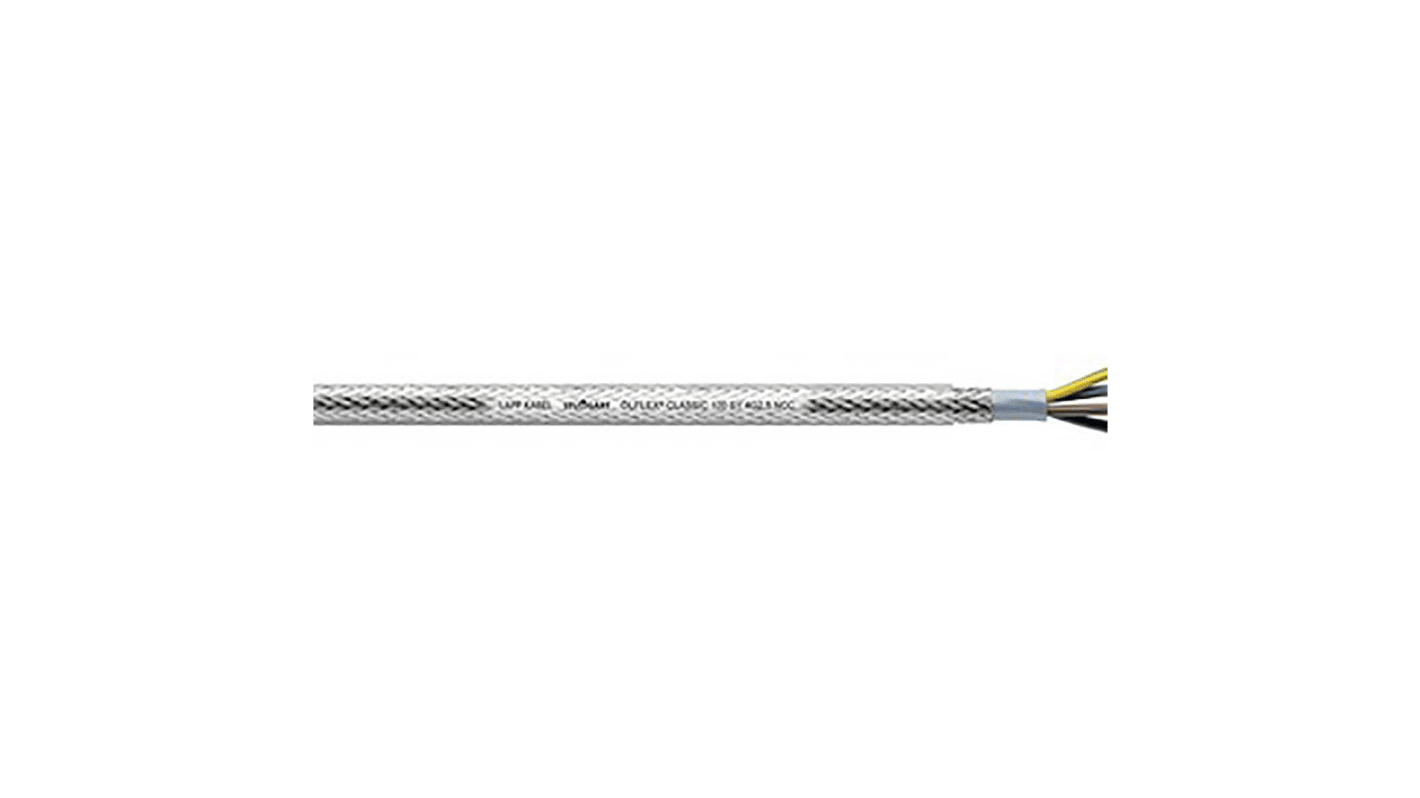

Ölflex® Classic 100 SY Cable

From Lapp, the Olflex Classic 110 series is a PVC control cable ideal for a variety of applications. Protected by braided steel wire, the cable has a high degree of mechanical resistance. Coupled with its resistance to chemicals and oils, Olflex Classic 110 cables are fit for use in the roughest of operating conditions.

The flexible multi-core cable is comprised of fine-wire copper strands twisted in layers, covered in PVC insulation. Then cable then has an oxidated protective steel wire braiding, and a transparent flame retardant out sheath. The transparent sheath is useful to inspect the cable for wear and tear, such as corrosion and deterioration.

Features and Benefits

• Fine copper wire strands in accordance to VDE 0295 class 5 / IEC class 5
• Flame retardant to IEC 60332-1-2
• High resistance against acids, alkaline and oils
• Good Chemical Resistance
• Excellent mechanical protection
• Compliant with directive 73//23 (Low Voltage Directive)
• Operating temperature range for fixed installations -40°C to +80°C
• Operating temperature range for occasional flexing -5°C to +70°C

Applications

Lapp Olflex Classic 110 SY cable is very durable, and so can be used for a wide range of applications in areas where high mechanical stress is likely. It is often used in;

• HVAC Systems
• Industrial Machinery
• Machine Tooling
• Plant Engineering

Accessories

Lapp cables should be used with accessories that match their capabilities, and as such Lapp provides a range of durable and easy-to-install cable glands.

• 433-0945 is an M16 IP68 Skintop Cable Gland
• 433-0951 is an M20 IP68 Skintop Cable Gland
• 433-0967 is an M25 IP68 Skintop Cable Gland
• 433-0973 is an M32 IP68 Skintop Cable Gland
• 433-0989 is an M40 IP68 Skintop Cable Gland

Standards

This cable confirms to ECD 73/23/EEC (low voltage directive).

LAPP Control Cable, 3 Cores, 2.5mm² Conductor Cross Section - ÖLFLEX Series - 0016088

Use this LAPP control cable to transmit data and power to your equipment. Thanks to its stranded conductors, it has the flexibility to fit around corners or in tight spaces. The conductors are made of highly conductive copper for efficient signal transmission. As it's protected by a durable PVC sheath, this cable is resistant to oils, chemicals and wear, making it safe to use in harsh environments.

Features & Benefits

• Galvanised steel braid prevents disruption from EMI for smooth signal transfer
• Colour-coded conductor cores for ease of identification
• Wide operating temperature range from -40°C to +80°C for use in demanding environments

Applications

• Bottling plants
• Vehicle servicing
• Breweries
• Manufacturing industry

Does this control cable have an earth wire?

Yes, this cable includes a protective conductor core for enhanced electrical safety.
