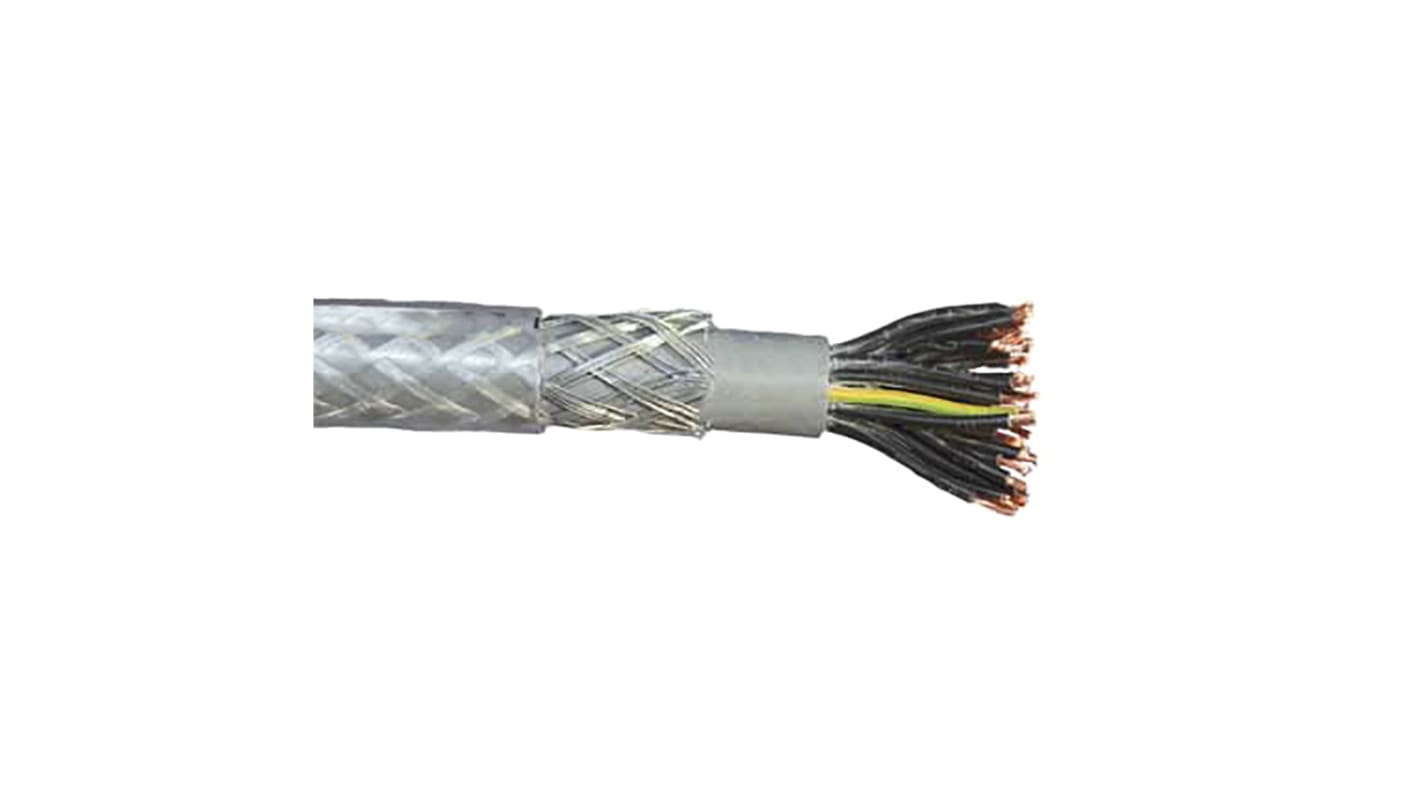

Lapp ÖLFLEX CLASSIC 110 SY Control Cable, 12 Cores, 1.5 mm², SY, Screened, 50m, Transparent PVC Sheath, 16 AWG
- RS Stock No.:
- 454-8837
- Mfr. Part No.:
- 1125312
- Brand:
- Lapp
Subtotal (1 reel of 50 metres)*
£481.32
(exc. VAT)
£577.58
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £481.32 | £9.626 |
*price indicative
- RS Stock No.:
- 454-8837
- Mfr. Part No.:
- 1125312
- Brand:
- Lapp
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Series | ÖLFLEX CLASSIC 110 SY | |
| Number of Cores | 12 | |
| Cross Sectional Area | 1.5 mm² | |
| American Wire Gauge | 16 AWG | |
| Conductor Material | Copper | |
| Sheath Material | PVC | |
| Sheath Colour | Transparent | |
| Control Cable Type | SY | |
| Screen Type | Galvanised Steel Braid | |
| Screened/Unscreened | Screened | |
| Minimum Bend Radius | Fixed - 6 x D Occasional Flexing - 20 x D | |
| Length | 50m | |
| Outer Diameter | 15.4mm | |
| Voltage Rating | 300/500 V | |
| Current Rating | 18 A | |
| CPR Certification | Eca | |
| Maximum Operating Temperature | +80°C | |
| Earth Cable | Yes | |
| Oil Resistant | Yes | |
| Filler Material | Non-Wicking Filler | |
| Insulation Material | PVC | |
| Conductor Resistance | 13.5 Ω/km | |
| Bedding Material | PVC | |
| Minimum Operating Temperature | -40°C | |
| Core Strands | 30/0.25 mm | |
Select all | ||
|---|---|---|
Brand Lapp | ||
Series ÖLFLEX CLASSIC 110 SY | ||
Number of Cores 12 | ||
Cross Sectional Area 1.5 mm² | ||
American Wire Gauge 16 AWG | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Sheath Colour Transparent | ||
Control Cable Type SY | ||
Screen Type Galvanised Steel Braid | ||
Screened/Unscreened Screened | ||
Minimum Bend Radius Fixed - 6 x D Occasional Flexing - 20 x D | ||
Length 50m | ||
Outer Diameter 15.4mm | ||
Voltage Rating 300/500 V | ||
Current Rating 18 A | ||
CPR Certification Eca | ||
Maximum Operating Temperature +80°C | ||
Earth Cable Yes | ||
Oil Resistant Yes | ||
Filler Material Non-Wicking Filler | ||
Insulation Material PVC | ||
Conductor Resistance 13.5 Ω/km | ||
Bedding Material PVC | ||
Minimum Operating Temperature -40°C | ||
Core Strands 30/0.25 mm | ||
