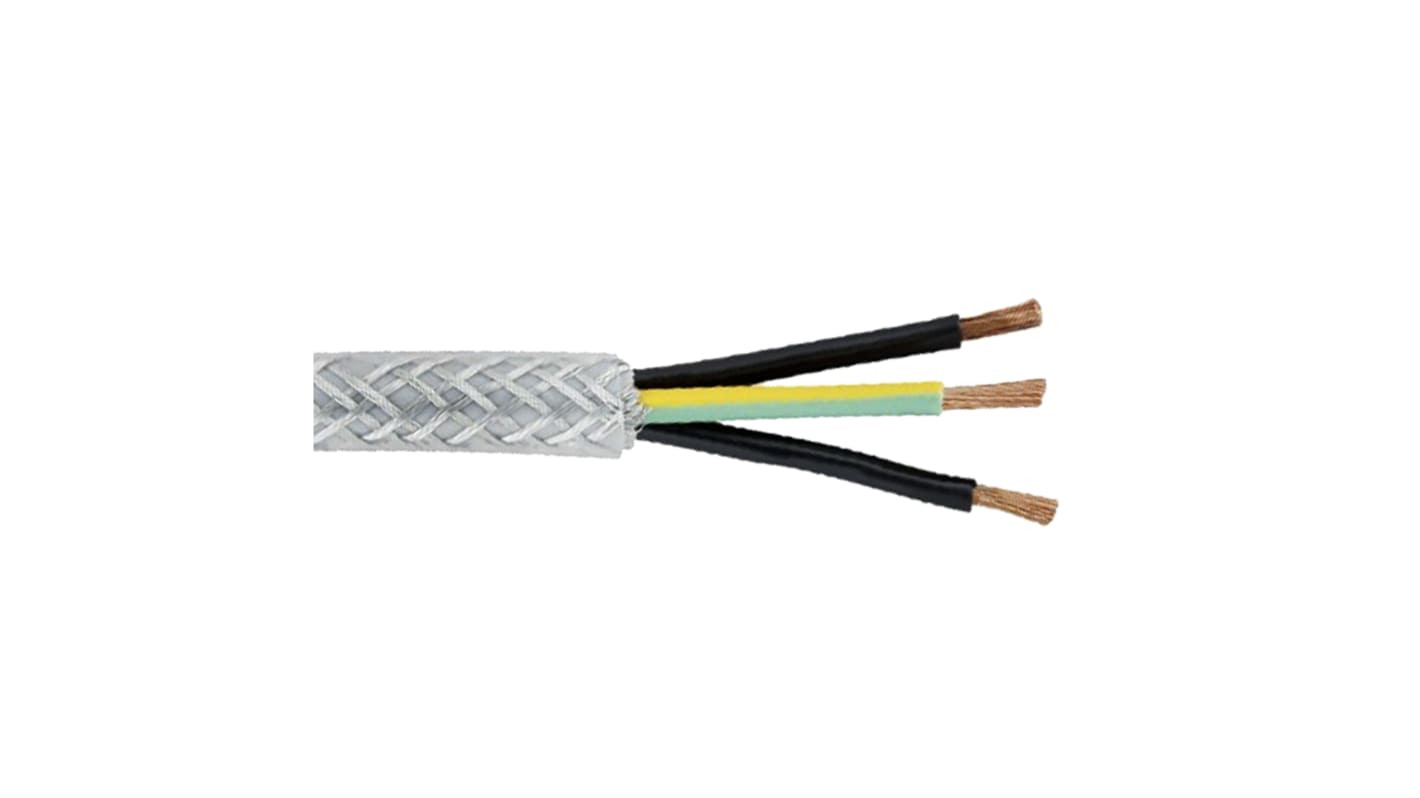

Lapp ÖLFLEX CLASSIC 110 SY Control Cable, 3 Cores, 4 mm², SY, Screened, 50m, Transparent PVC Sheath, 12 AWG
- RS Stock No.:
- 454-8792
- Distrelec Article No.:
- 304-01-046
- Mfr. Part No.:
- 1125503
- Brand:
- Lapp
Subtotal (1 reel of 50 metres)*
£330.19
(exc. VAT)
£396.23
(inc. VAT)
FREE delivery for orders over £50.00
- Plus 5 unit(s) shipping from 27 October 2025
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £330.19 | £6.604 |
*price indicative
- RS Stock No.:
- 454-8792
- Distrelec Article No.:
- 304-01-046
- Mfr. Part No.:
- 1125503
- Brand:
- Lapp
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Series | ÖLFLEX CLASSIC 110 SY | |
| Number of Cores | 3 | |
| Cross Sectional Area | 4 mm² | |
| American Wire Gauge | 12 AWG | |
| Conductor Material | Copper | |
| Sheath Material | PVC | |
| Sheath Colour | Transparent | |
| Control Cable Type | SY | |
| Screened/Unscreened | Screened | |
| Screen Type | Galvanised Steel Braid | |
| Armoured | Yes | |
| Outer Diameter | 12mm | |
| Length | 50m | |
| Minimum Bend Radius | Fixed - 6 x D Occasional Flexing - 20 x D | |
| Voltage Rating | 300/500 V | |
| Current Rating | 34 A | |
| CPR Certification | Eca | |
| Standards Met | CE | |
| Maximum Operating Temperature | +80°C | |
| Oil Resistant | Yes | |
| Minimum Operating Temperature | -40°C | |
| Bedding Material | PVC | |
| Insulation Material | PVC | |
| Conductor Resistance | 4.98 Ω/km | |
| Cable Shape | Round | |
| Core Strands | 56/0.3 mm | |
| Earth Cable | Yes | |
| Filler Material | Non-Wicking Filler | |
Select all | ||
|---|---|---|
Brand Lapp | ||
Series ÖLFLEX CLASSIC 110 SY | ||
Number of Cores 3 | ||
Cross Sectional Area 4 mm² | ||
American Wire Gauge 12 AWG | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Sheath Colour Transparent | ||
Control Cable Type SY | ||
Screened/Unscreened Screened | ||
Screen Type Galvanised Steel Braid | ||
Armoured Yes | ||
Outer Diameter 12mm | ||
Length 50m | ||
Minimum Bend Radius Fixed - 6 x D Occasional Flexing - 20 x D | ||
Voltage Rating 300/500 V | ||
Current Rating 34 A | ||
CPR Certification Eca | ||
Standards Met CE | ||
Maximum Operating Temperature +80°C | ||
Oil Resistant Yes | ||
Minimum Operating Temperature -40°C | ||
Bedding Material PVC | ||
Insulation Material PVC | ||
Conductor Resistance 4.98 Ω/km | ||
Cable Shape Round | ||
Core Strands 56/0.3 mm | ||
Earth Cable Yes | ||
Filler Material Non-Wicking Filler | ||
- COO (Country of Origin):
- DE
LAPP Control Cable, 12.7mm Outer Diameter, 4kV AC Test Voltage - ÖLFLEX Classic 110 SY Series - 1125503
Features & Benefits
• Copper cores are highly conductive and corrosion-resistant for speedy signal transmissions
Applications
• Manufacturing systems
• Machine tool industry
Can I use this cable in damp environments?
